Elliptical Head End Caps Tank Head For Pressure Vessel
Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.
Type | Elliptical head |
Diameter | 300mm-6000mm (Customized size available) |
Material | Stainless Steel or carbon steel |
Thickness | 300mm-6000mm (Customized size available) |
Standard | ASME,NB,GB |
Other Shape | Hemispherical, torispherical, conical |
Connection | Welding/Seamless |
Package | Wooden cases, Pallet or as Buyer's request |
Certificate | API, TUV, CE pressure piping components manufacturer license etc |
Applications | oil, chemical industry, nuclear power station, construction ,ship building industry etc. |

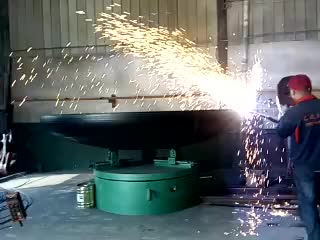

Production Process for elliptical dished head
Popular export package for elliptical dished head is as follows
If you are interested, feel free to leave me your requirement as follows, we will reply you asap
If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data which necessary to order heads
Quantity
Type of Head
Dimensional Information (O.D., I.D., Thk., S.F., etc.)
Material Specifications
Special Tolerances or Requirements
Bevel Requirements
