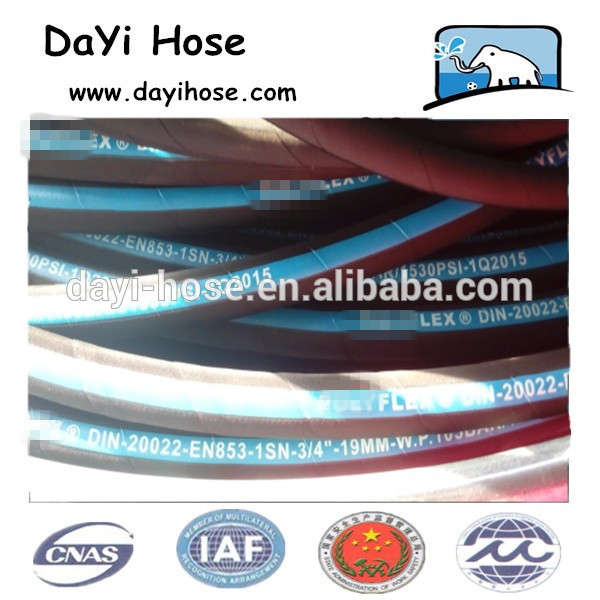

blue color flexible DIN/SAE 1SN 2SN rubber hydraulic hose

Factory price： There is no set price, you can ask the supplier to get a product quote

Initial batch size：
123412 ¥310 ~~¥Unset Price~~
Delivery merchant：Hebei Dayi Rubber Products Co., Ltd.

Place of Origin：	Hebei, China (Mainland)	Brand Name：	DAYI
Model Number：	R1 R2 4SP 4SH	hydraulic hose length：	100m/50m
hydraulic hose color：	black,blue	hydraulic hose character：	flexible

Purchase type： Foundry production Manufacturer's own brand
Promotional price：Promotion¥0.0
Offers：

This product is free of shipping

Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

Full999 yuanGet beautiful for freeFreebies，While supplies last。
Net content：5000g
Specifications：

Delivery to：
Please select the receiving city
Please select

Please select

Please select
Purchase quantity：

Inventory0pieces 【Complimentary】

Product Description

hydraulic hose SAE 100 R1 AT/DIN EN 853 1SN/2SN

CONSTRUCTION:

This hydraulic hose consists of an inner tube of oil synthetic rubber, single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.

APPLICATIONS:

Hydraulic Hose range suitable to carry hydraulic fluids such as glycol, mineral oils,fuels,lubrication,emulsion,hydrocarbons etc.

WORKING TEMPERATURE:

From-40°C up to +100°C

technical data

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
DN	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	metres
6	1/4	6.4	11.1	15.9	22.5	3270	90	12840	100	0.31	50/100
8	1/3	7.9	12.7	17.5	21.5	3120	85	12280	114	0.38	50/100
10	3/8	9.5	15.1	19.8	18	2615	72	10280	127	0.45	50/100
13	1/2	12.7	18.3	23	16	2320	64	9180	178	0.55	50/100
16	5/8	15.9	21.4	26.2	13	1890	52	7420	200	0.63	50/100
19	3/4	19	25.4	30.2	10.5	1530	42	6000	240	0.77	50/100
25	1	25.4	33.3	38.1	8.8	1280	35	5020	300	1.06	50
32	1 1/4	31.8	40.5	46	6.3	920	25	3600	419	1.45	18 to 40
38	1 1/2	38.1	46.8	52.4	5	730	20	2860	500	1.8	18 to 40
51	2	50.8	60.2	66.7	4	580	16	2280	630	2.3	18 to 40

hydraulic hose EN856 4SH 4SP

CONSTRUCTION:
This hose consists of an inner tube of oil synthetic rubber, 4 wires braid reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils,fuels,lubrication,emulsion,hydrocarbons etc.
WORKING TEMPERATURE:
From-40°C up to +100°C

technical data

Nominal		Inside		Reinforcement		Outside	Working		Proof	Burst	Min.Bend	Weight
diameter		Diameter		Diameter		Diameter	Pressure		Pressure	Pressure	Radius	Kg/m
		mm		mm		mm	MPa		PSI	PSI	mm
mm	inch	min	max	min	max	max	max	PSI		min
19	3/4"	18.6	19.8	28.3	29.1	32.5	42	6090	12180	24360	280	1.7
25	1"	25	26.4	35.4	36.2	40	38	5510	11020	22040	340	2.5
31	1-1/4"	31.4	33	42.2	43	47.1	32.5	4713	9425	18850	460	3
38	1-1/2"	37.7	39.3	49	49.8	55	29	4205	8410	16820	560	3.6
51	2"	50.4	52	63.4	64.2	69.3	25	3625	7250	14500	700	5

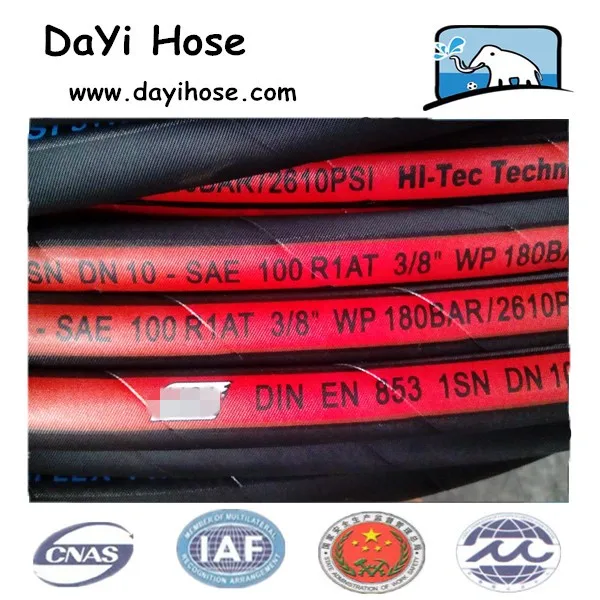

hydraulic hose picture

Packaging & Shipping

The general package of hydraulic hose is transparent PVC film packing, woven bag, pallet and reel packing, however, can also provide special package according to customer’s requests.

hydraulic hose package
