H20 Timber Beam Table formwork
Concrete Slab Formwork
Introduction
Plywood 18mm as the skin, timber beam H20 as the primary and secondary beam, steel prop or scaffolding as the support system.
Advantages:
Easy operation, save material and time.
High rigidity and repeat rate.
High standard components make low cost available.
The construction site is safe and fast.
H20 Timber Beam Specifications:
Product Name |
|
Height | 200mm |
Flange | Wide*Thickness=80mm*40mm |
Spruce, Pine, a mixture of wood species permitted | |
Web | Thickness:27-30mm |
3-plywood or plywood | |
Surface Protection | The complete beam is waterproofed using a water-repellent color glaze |
Weight | 4.6-5.2kg |
Standard Lengths | 2.45m,2.65m,2.9m,3.3m,3.6m,3.9m,4.5m,4.9m,5.9m, (Max.length:6.00m) |
Shear Force | q=11KN |
Permissible Bending Moment | m=5.0KN*M |
Package | Customized Package,or In Bulk |
Used for | Slab Formwork System,Vertical Formwork(Wall,Column,Hydraulic Climbing etc.), Adjustable Arced Formwork etc |
Competitive Advantage:

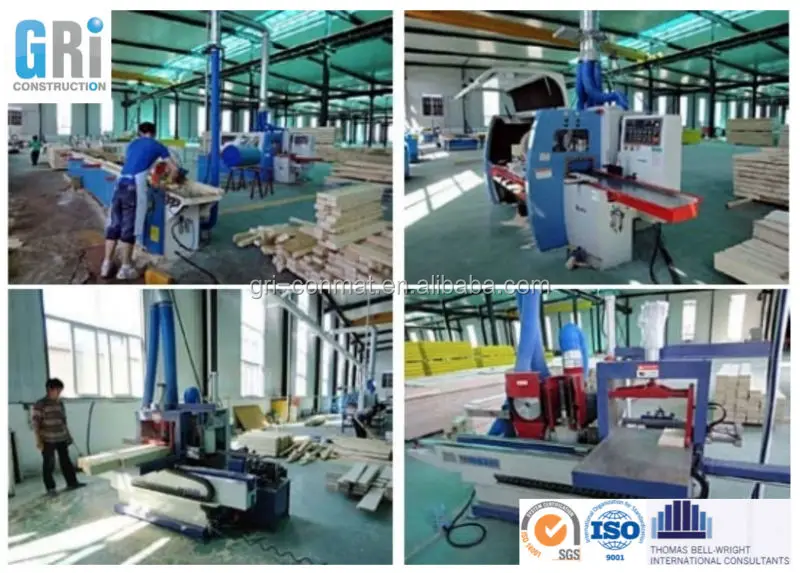

1. Standardized production line guarantees good products.
2. Finger jointing of the flange and web,the strength of timber beam is highly improved.
3. Well treated to prevent from water penetration or erosion, so the service life
maximally extended.
Normally, GRI timber beam H20 can be used for 4 to 5 years, the exact using time is influenced by construction environment and the way to storage.
4. The length will be flexible, we can afford any length to meet customs’ demand within 6.6m limit.

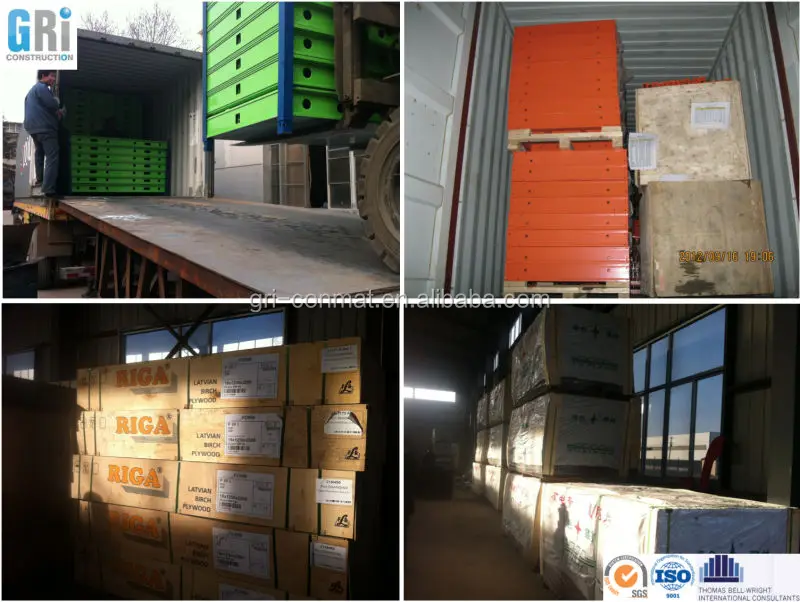

Package:

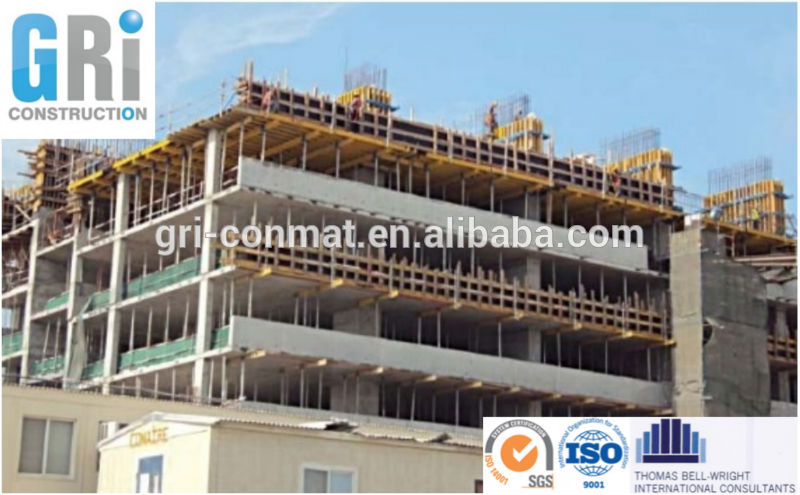

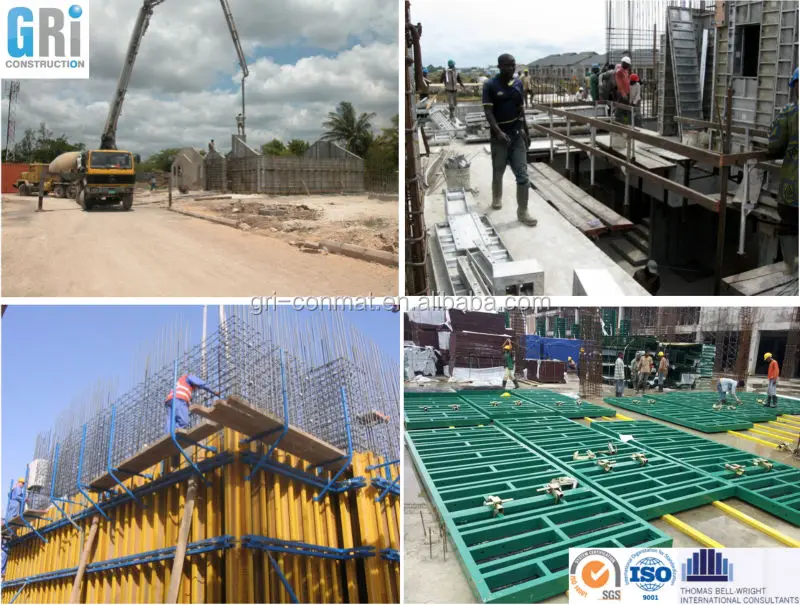

Applications:
As a kind of girder, it is an important constituent part for formwork and it is widely used in concrete formwork construction.
