Introduction

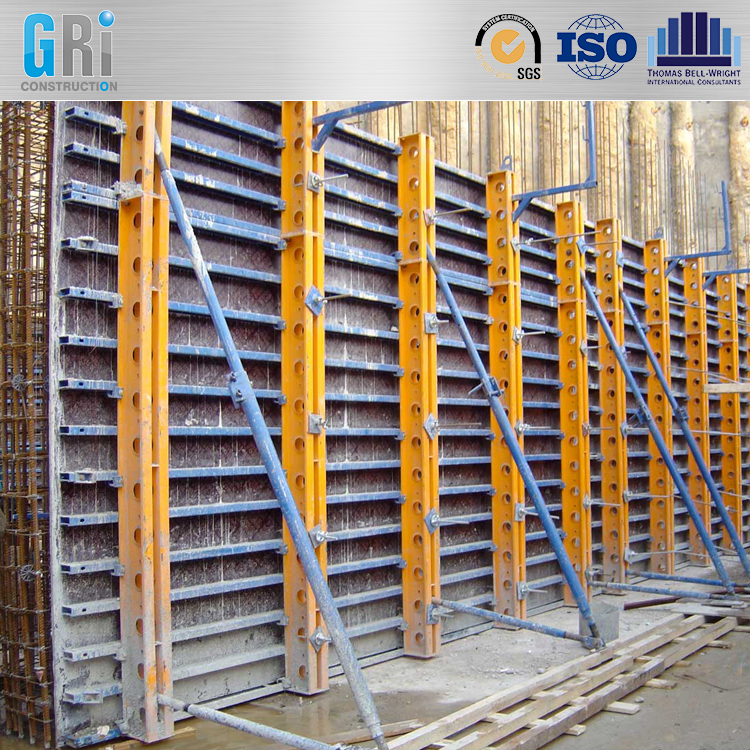

Plywood 18mm as the skin, timber beam H20 as the primary and secondary beam, steel prop or scaffolding as the support system.
Advantages:
H20 Timber Beam Specifications:
Product Name | Concrete Aluminium Formwork |
Height | 200mm |
Flange | Wide*Thickness=80mm*40mm |
Spruce, Pine, a mixture of wood species permitted | |
Web | Thickness:27-30mm |
3-plywood or plywood | |
Surface Protection | The complete beam is waterproofed using a water-repellent color glaze |
Weight | 4.6-5.2kg |
Standard Lengths | 2.45m,2.65m,2.9m,3.3m,3.6m,3.9m,4.5m,4.9m,5.9m, (Max.length:6.00m) |
Shear Force | q=11KN |
Permissible Bending Moment | m=5.0KN*M |
Package | Customized Package,or In Bulk |
Application | Slab Formwork System,Vertical Formwork(Wall,Column,Hydraulic Climbing etc.), Adjustable Arced Formwork etc |
Adjustable Waterproof Climbing Formwork With High Bearing Capacity
CB240 climbing system is mainly used for concrete pouring in the wall, the core wall, the pier, etc.
They guarantee simple handling, fast concreting cycles and problem-free adjustment to different wall configurations.

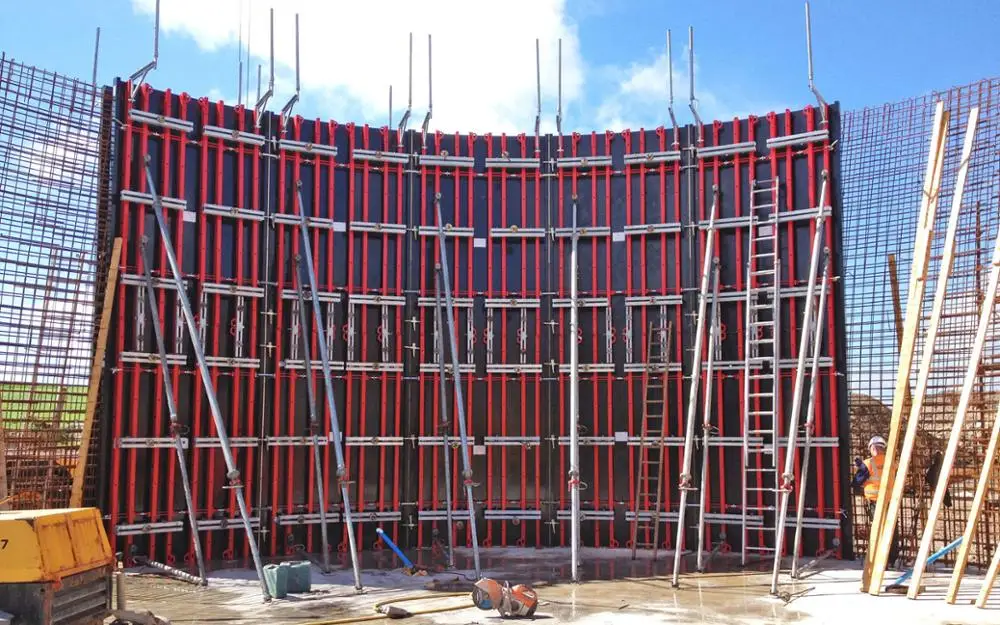

Display of Formwork System
Competitive Advantage:
1. High bearing capacity
The high loading capacity of the brackets allow very large scaffold units. This saves the number anchor points required as well as reducing climbing times.
2.Simple moving procedure by crane
Through the strong connection of formwork together with the climbing scaffold, both can be moved as a single climbing unit by crane. Thus valuable time-savings can be achieved.
3. Fast striking process without a crane
With the retrusive set, large formwork elements can also be retracted quickly and a minimum of effort.
4. Safe with work platform
The platforms have assembled firmly with bracket and will be climbing together, without scaffolding but can work safely in spite of your high location.
5. The inclination of formwork is adjustable by means of adjustable brace.
The brace is connected with formwork and bracket and the main function is guaranteeing the verticality of formwork by adjusting its length.

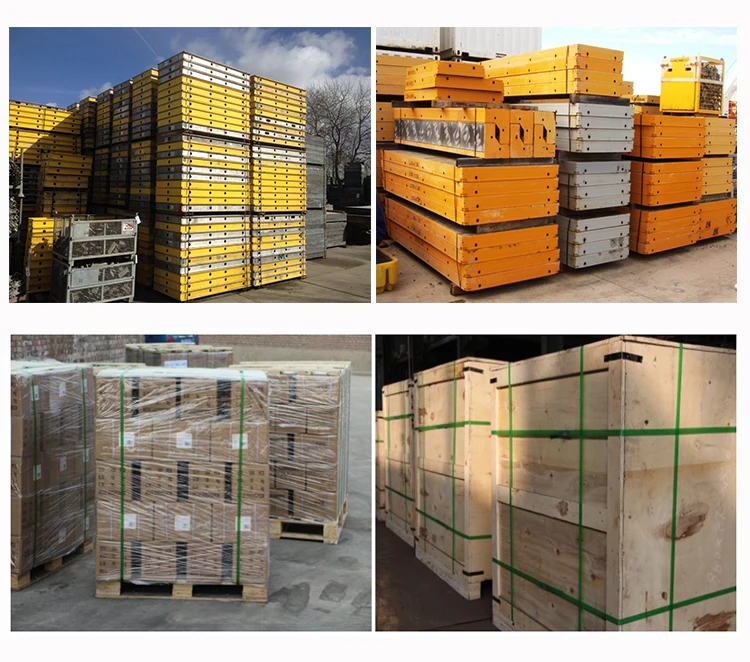

Package:

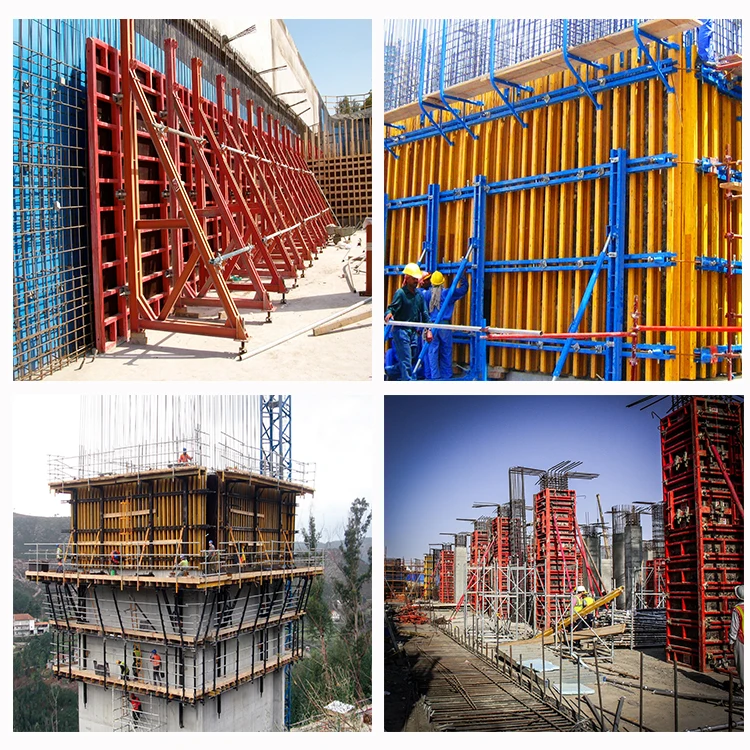

Applications:
As a kind of girder, it is an important constituent part for formwork and it is widely used in concrete formwork construction.

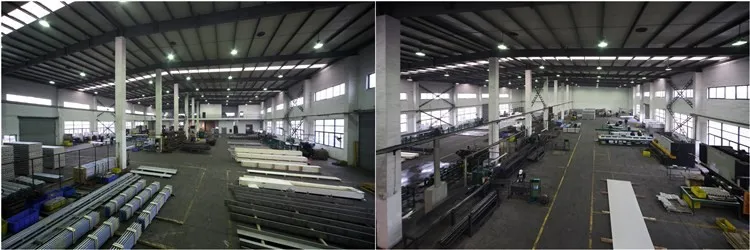

Our company
Our company GRI was established in 2007, we have 6-year experience cooperated with foreign buyers on all kinds of construction materials, including aluminium composite panel, fittings, formwork, scaffolding, curtain wall, T head bolt, aluminium windows and doors, accessaries, Hardwares and chemical industry. Based on our working experience, we could make a professional evaluation&screening before we make you the offers, which could find you the best qualified suppliers with competitive price to meet your request.
1. Quality is guaranteed: Durability testing and critical technical design to enhance fixing anchors lifetime.
2. Cost effective: Competitive prices with factory directly supply
3. Perfect fastening solution with 20 years experiences to solve your problem: Wide range of parts selection.
4. Customized Ideal fixing anchors: customized services according to the samples and drawings offered.
If you are not sure about what exactly you need - feel free to contact us anytime and get professional assistance from us.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons for Steel strut channel in short length or packed with pallet in long size. We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against BL copy or LC at sight, 100% LC. We'll show you the photos of Steel strut channel goods and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test to ensure quality of Steel strut channel before delivery.
