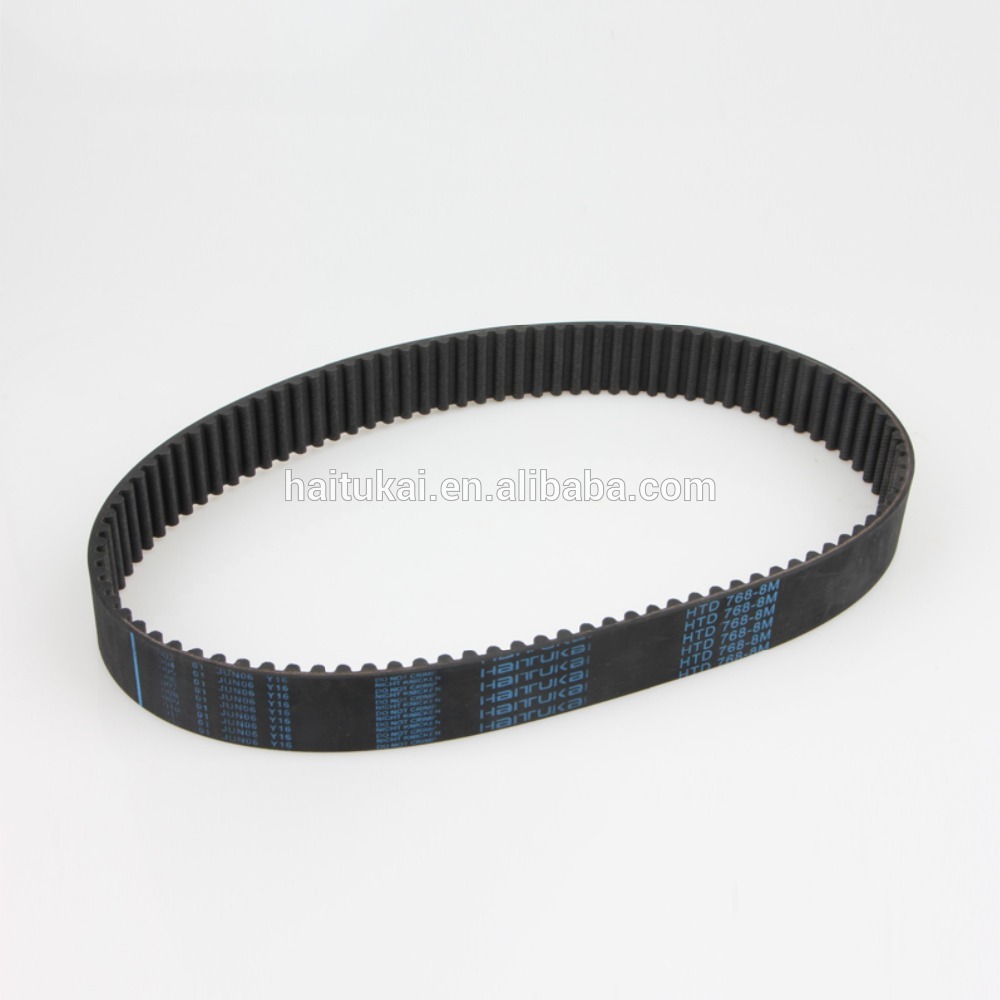

HTD 8M Industrial Timing Belt

  • Factory price: There is no set price, you can ask the supplier to get a product quote
    Initial batch size:
     123412 ¥310
  • Delivery merchant:Taizhou Hai Tu Kai Mould Co., Ltd.
  • Place of Origin: Zhejiang, China (Mainland), Zhejia Brand Name: haitukai
    Model Number: 768-8M, ALL Industrial Timing Belt Color: Black
    Material: Rubber Standards or Nostandards: Standards
    Type: Timing Belt
  • Purchase type:
  • Offers:

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies,While supplies last。

  • Net content:5000g
  • Specifications:
  • Delivery to:

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity:
    Inventory0pieces



Type:

There are two kinds of industrial synchronous belt: one-sided tooth industrial rubber synchronous belt anddouble-sided tooth industrial  rubber synchronous belt.



Material:

  GLassFiber,Fabric Chloroprene rubber.

 The Dimension and Profile:

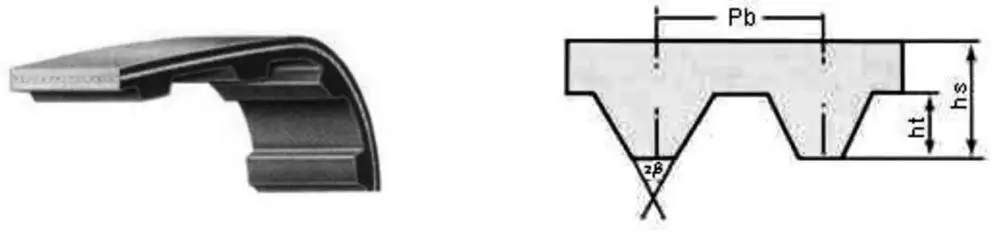

T tooth  industrial  rubber synchronous belt

TypePitch Pb(mm)Tooth height ht(mm)Belt thickness hs(mm)Angle β°
MXL2.0320.511.1440
XXL3.1750.761.5250
XL5.081.272.350
L9.5251.913.640
H12.72.294.340
XH22.2256.3511.240
XXH31.759.5315.740
T2.52.50.71.340
T551.22.240
T10102.54.540
T20205840
AT551.22.750
AT10102.5550
AT202058

50

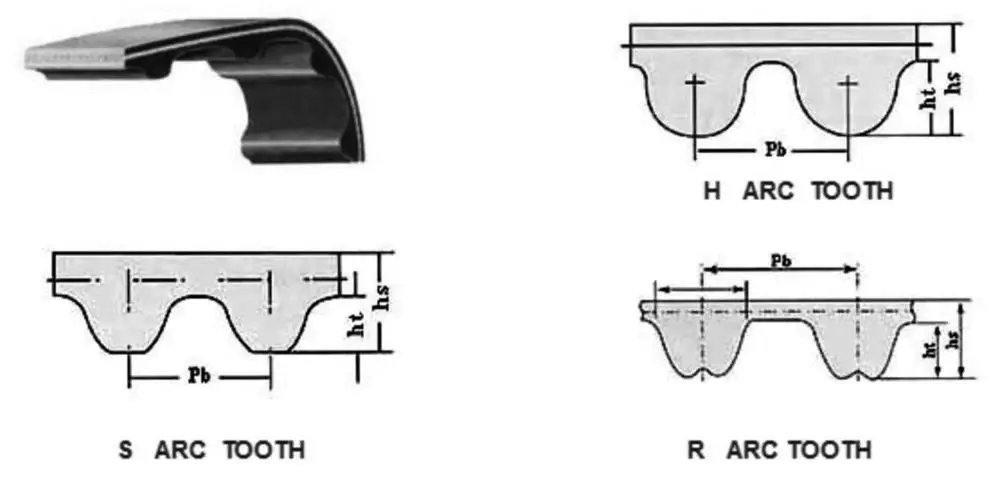

Arc tooth  industrial  rubber synchronous belt

Gear CodeTypePitch Pb(mm)Tooth height ht(mm)Belt thickness hs(mm)
HTD2M20.751.36
3M31.172.4
5M52.063.8
8M83.366
14M146.0210
20M208.413.2
STSS2M20.761.36
S3M31.142.2
S4.5M4.51.712.81
S5M51.913.4
S8M83.055.3
S14M145.310.2
RPP2M20.761.36
3M31.151.9
5M51.953.5
8M83.25.5
14M14610

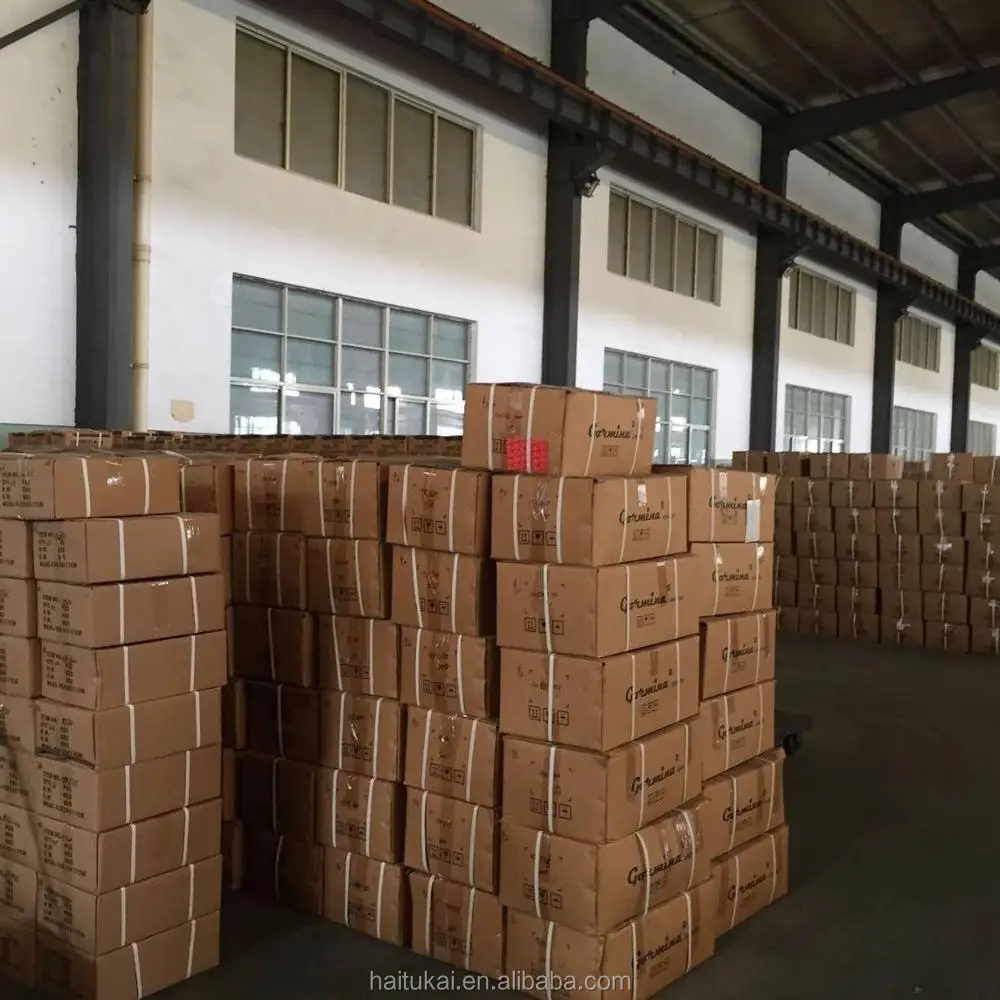

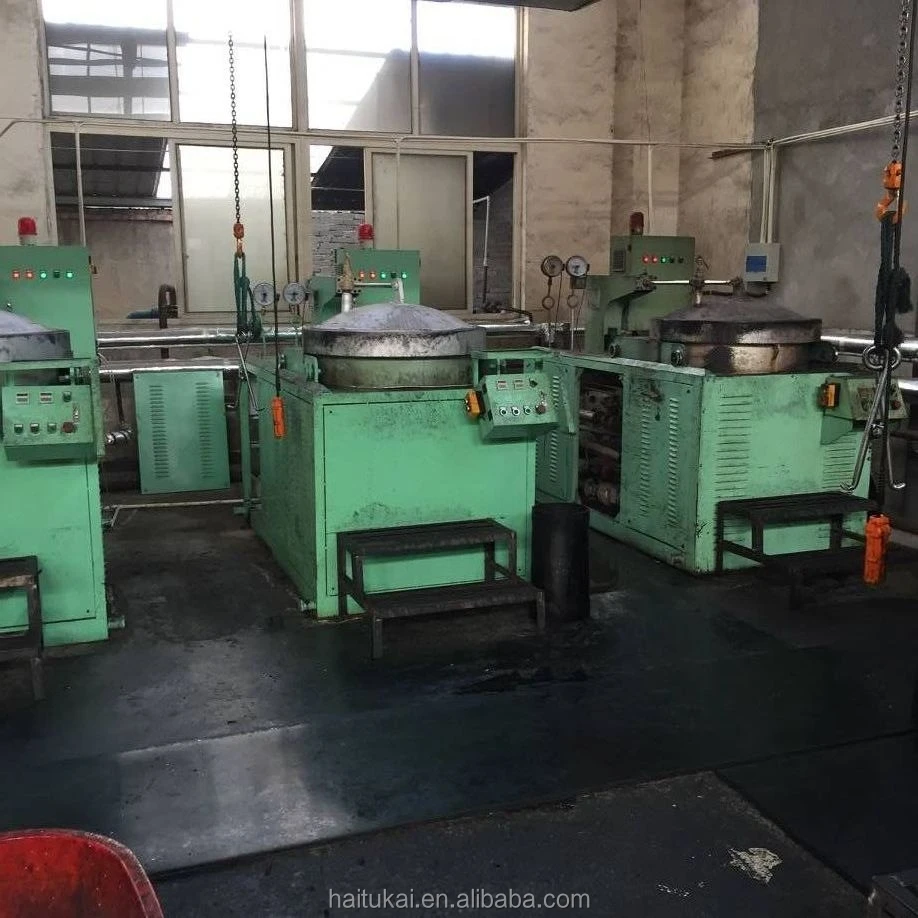

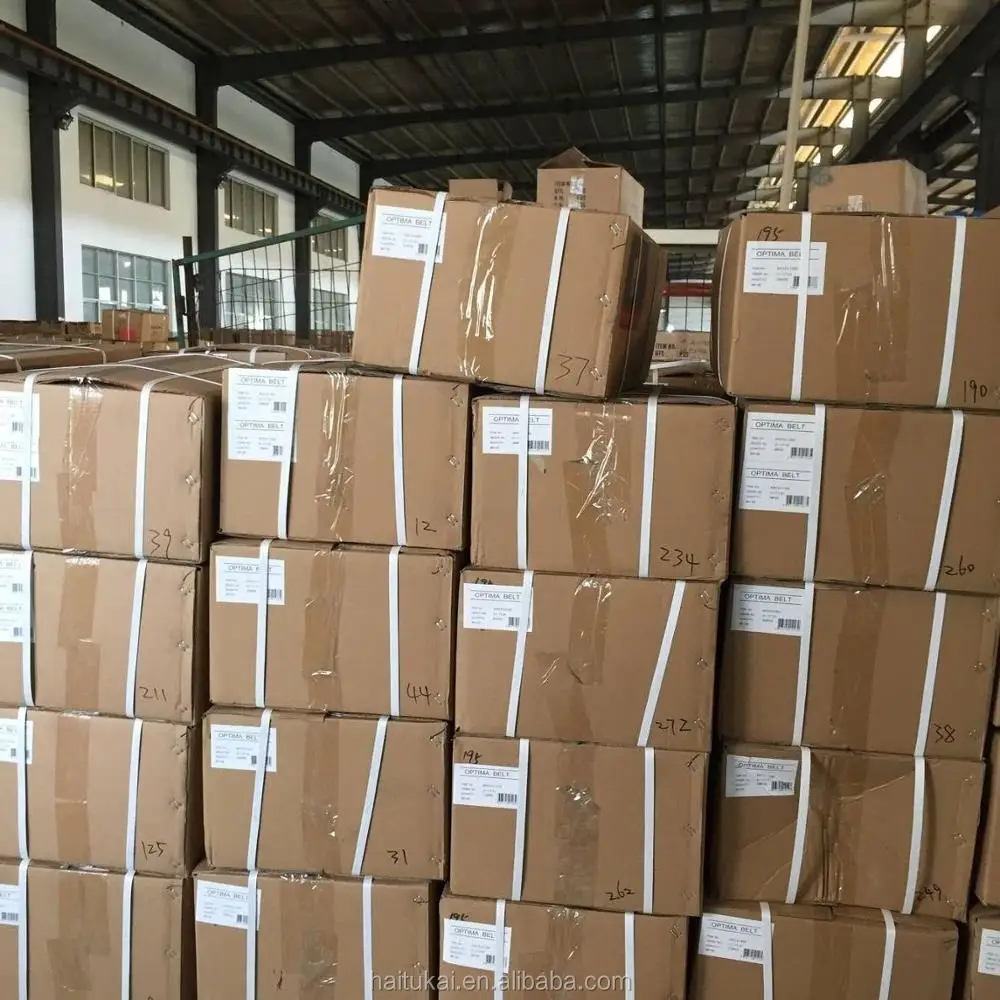

Workshop &  Packaging
