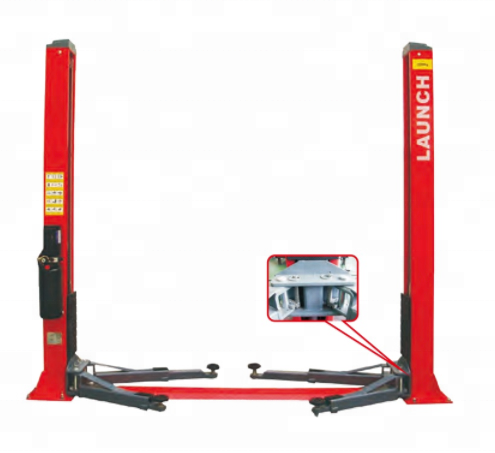

220v over head gantry type 4 ton 2 post car lift elevador de carro

  • Factory price: There is no set price, you can ask the supplier to get a product quote
    Initial batch size:
     123412 ¥310
  • Delivery merchant:广州Junliye进口公司出口有限公司
  • Design: Two Post Type: Double Cylinder Hydraulic Lift
    Certification: CE Lifting Capacity: 4000KG
    Place of Origin: Guangdong, China (Mainland) Brand Name: JLY Car lift
    Model Number: JLY240SB Warranty: 12 Months
    Brand: JLY Car lift Model number: JLY240SB
    Capacity: 4000KG Lift height: 1900mm
    Overall height: 3730mm Overall width: 3500mm
    Width between columns: 3000mm Lifting Time: <50s gantry car lift
    Lowering Time: <40s JLY car lift Motor Voltage: 220V 1phase/ 380V 3phase 50hz
  • Purchase type:
  • Offers:

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies,While supplies last。

  • Net content:5000g
  • Specifications:
  • Delivery to:

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity:
    Inventory0pieces

220v over head gantry type 4.5 ton 2 post car lift elevador de carro

Product Description

 JLY Car Lift JLY240SB is 4000kg lifting capacity two post gantry lift, with Single point release system. it make your work more stable & convenience and save your time.



Specification:

Lifting capacity4000KG
Lifting height1900mm
Overall height3730mm
Overall width3500mm
Width between columns3000mm
Lifting time<50seconds
Lower time<40seconds
Power supply220V-380V  1ph/3ph
Net weight660kg





Features:
1. Clear floor design makes under-vehicle service more convenient
2. Single-side safety release system, and dual safety design
3. Multi-voltage power supply is available for convenient use
4. Japanese and American hydraulic seals ensured the tightness of oil cylinder
5. 3000mm overall width allows much wider vehicles
6. Economical but reliable cast-iron cover motor, Optional aluminum motor
7. Optional imported pumping device





Details of JLY245SC 4500kg hydraulic 2 post gantry car lift.







Lifting arm locking mechanism         Limited switch             Single point release system





Adjustable stapter                            Oil seal from Japan                  Doors protection





Installation Diagram : JLY245SC 2 POST CAR LIFT

Overall size:





JLY245SC Car Lift Foundation:







Packaging & Shipping

Packing of JLY245SC 2 post car lift





Related Products

JLY car lifts : 3.5tons / 4tons 2post car lift,  3D Wheel Alignment scissor lift,  4 post alignment lift.



Our Services
1. One year will be offered warranty for JLY245SC 4.5t gantry car lift.
2. One set JLY245SC 4.5t gantry car lift available to order.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will make the necessary documents for your Import customs clearance. When you receive your JLY245SC 4.5t gantry car lift, please give me a feedback.If you have any questions about the problem, contact with us, we will offer the solution for you as the situation.



FAQ



Q1. What is your terms of packing?
A: Generally, JLY245SC 4.5t gantry car lift will be iron shelf and plastic paper packaged.



Q2. What is your terms of payment?
A:1. 100% Trade Assurance.
A:2. T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the JLY245SC 4.5t gantry car lift.



Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF are available for JLY245SC 4.5t gantry car lift .



Q4. How about your delivery time?
A: Generally, it will take 12 to 20 days after payment received. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?
A: Yes, JLY245SC 4.5t gantry car lift is Ok to make the model no. as yours.



Q6. What is your sample policy?
A:  Sample is available if we have ready parts in stock, but the customers have to pay the costs of sample and the shipping.



Q7: How do you make our business long-term and good relationship?
A:1. Good quality and competitive price to ensure our customers benefit ;
A:2.You are my best friend no matter where they come from.Best service offered to you all the time,



Located in Guangzhou City and founded in 1999. is a global supplier of auto maintenance service supplier.
2post/4post/scissor/single/underground/bus Car lift, Diagnostic tool, Wheel alignment, Tire changer, Wheel balancer, Spray booth, Paint lamp, Frame machine, AC machine,  ATF changer, spot welder, battery charger, washing machines, etc.

We adhere to the tenet of "Customer First", with the idea of "Quality, Honesty, and Innovation". Please feel free to contact us for further information
