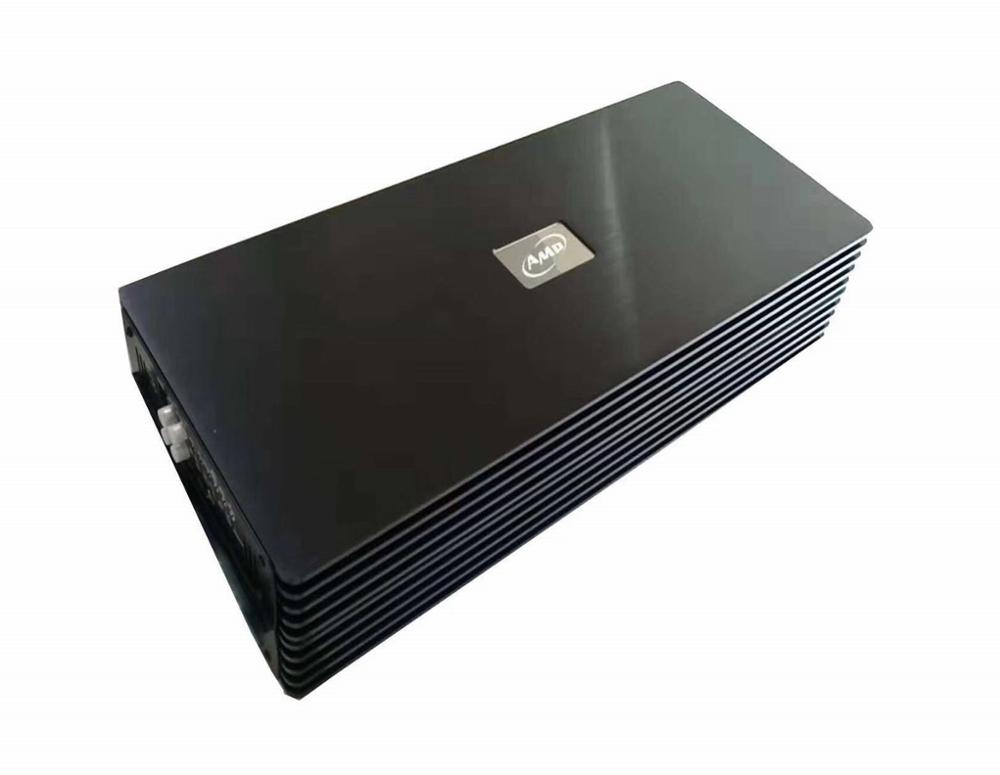

Car amplifier class d mono
6500W RMS Class-D amplifier.
1 ohm load stable.
Double Side PCB and SMD components.
Adjustable Input level, LPF, Subsonic, bass boost level, bass boost frequency, Q control.
Advanced short circuit, overload, over heat, over/low voltage protection.
Advanced clip limit / thermal power limit function.
Optional remote controller.
1. Power supply: 14.4V DC power supply
2. Test signal: 80Hz sine wave.
3. Loads: Resistor dummy load.
4. Environment: 25 degree C, open air.
5. Relative humidity: 70%.
6. Instrument: Audio Precision SYS-2322A.
Following table is the RMS output power with THD+N(<22KHz) value at 5%, 3%, 2% and 1%.
Power THD+N | RMS power (1ohm) | RMS power (2ohm) | RMS power(4ohm) | RMS power(8ohm) |
5% | 7500W | 4200W | 2850W | 1600W |
3% | 7200W | 4000W | 2720W | 1510W |
2% | 7000W | 3800W | 2620W | 1480W |
1% | NA | NA | 2200W | 1360W |
