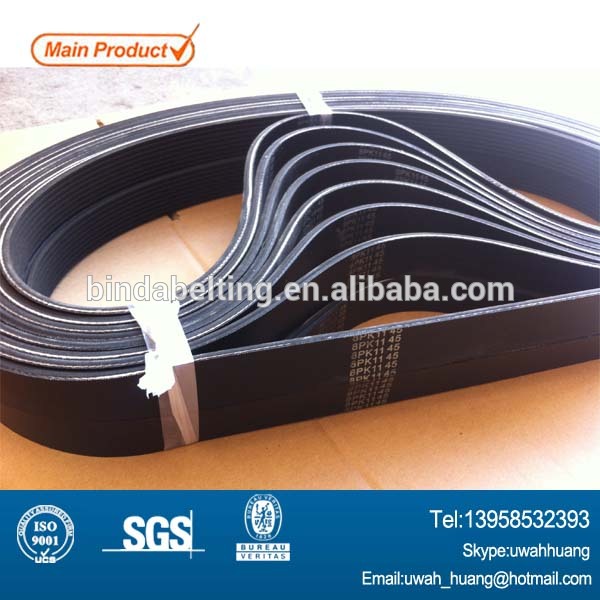

PK ribbed v-belts for automobile:
| Automobile PK V-ribbed belt section | | | | |
| Type | Rib section | Angle of rib | Belt width | Belt thickness | Rib number | Length range | Moq. |
| 3PK | 3.56 | 40 | 10 | 4.8 | 3 | 500-1500mm | 90pcs |
| 4PK | 3.56 | 40 | 13.6 | 4.8 | 4 | 500-2000mm | 66pcs |
| 5PK | 3.56 | 40 | 17 | 4.8 | 5 | 600-2400mm | 54pcs |
| 6PK | 3.56 | 40 | 20.7 | 4.8 | 6 | 600-2400mm | 44pcs |
| 7PK | 3.56 | 40 | 24.3 | 4.8 | 7 | 600-2400mm | 38pcs |
| 8PK | 3.56 | 40 | 27.8 | 4.8 | 8 | 600-2400mm | 32pcs |
| 9PK | 3.56 | 40 | 31.4 | 4.8 | 9 | 600-2400mm | 28pcs |
| 10PK | 3.56 | 40 | 35 | 4.8 | 10 | 600-2400mm | 26pcs |
Feature
1)Wide breadth but thin belt,excellent elastic and flexural property
2)High transmission efficiency under the operating environment of high-speed rotation,
reverse flexure,small band pulley,ect.
3)Core rubber with high tension and low elongation,while the consistent tension is
maintained during the process of operation.
4)Excellent heat-resistant,oil-proof,and wearing resistance
5)Less slip while large transmission effect during the process of operation.
6)Less noise during the process of operation.
Example of Mark:
Packing:Mix size packed in export standard cartons(Meas.65x37x27cm).
