Your location：Home > Sanmen Binda Rubber Belt Manufacturing Factory > 自行车带8150K

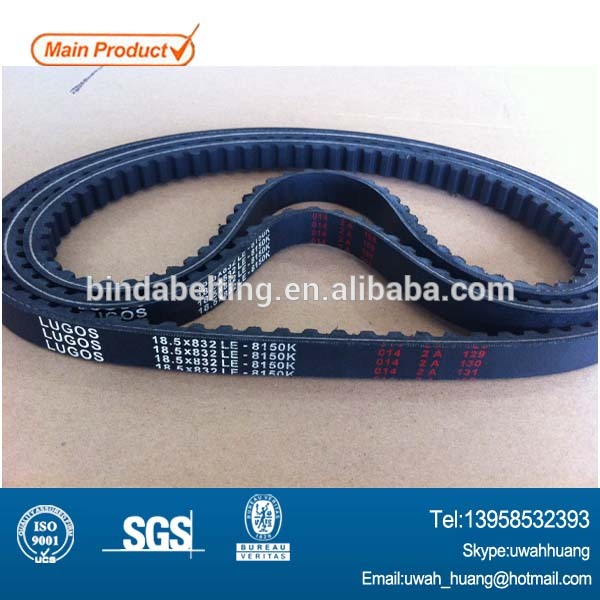

Bike Belt 8150K

  • Factory price： There is no set price, you can ask the supplier to get a product quote
    Initial batch size：
     123412 ¥310
  • Delivery merchant：Sanmen Binda Rubber Belt Manufacturing Factory
    • Type： Drive Belt Place of Origin： Zhejiang, China (Mainland)
    Brand Name： BINDA Model Number： 8150K
    Width： 18.5mm Section Angel： 30 and 28
    Length： 832mm Paper box： Available
    Models： 7 and 8 series
  • Purchase type：
  • Offers：

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies，While supplies last。

  • Net content：5000g
  • Specifications：
  • Delivery to：

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity：
    Inventory0pieces

Belt is characterised by the aramid fibre insert, which provides high thermostability to the belt and thus reduced elongation, in particular when starting, and guarantees a resistance to wear that is twice as high as polyester (Standard line).
The indentation at the back of the belt provides maximum flexibility, a larger mating surface and improved cooling of the belt during operation.

All Scooter belts have a cross-sectional angle of 30° with the exception of a few having 28°.


All part numbers were available as below sheet:

SCOOTER BELTS PART NUMBER
S/NPart numberWidthHeightLength S/NPart numberWidthHeightLength
1714216.5mm8mm0.664m 368151K19.4mm10mm0.750m
2715117.5mm8mm0.724m 378152K20mm9.5mm0.808m
3716616mm8mm0.665m 388153K22mm8mm0.844m
47167K16.5mm8mm0.747m 39815422mm10.5mm0.916m
57168K17.5mm8mm0.724m 40816522mm9mm0.778m
6717016.5mm8mm0.72m 418172K20mm10mm0.800m
77172K18mm8mm0.7m 42817317.5mm8mm0.770m
8717318mm9mm0.670m 438175K23mm11.5mm0.872m
97175K16.5mm8mm0.792m 44817716.8mm8mm0.796m
10717615mm8mm0.73m 458178K22.3mm10.8mm0.937m
11718322mm9.5mm0.828m 468180K22mm13mm0.826m
12718418mm8mm0.743m 478187K23.8mm15mm0.933m
13718516.6mm8mm0.785m 488188K22mm13.5mm0.940m
14718715mm8mm0.793m 498189K22.7mm11.5mm0.893m
15719022mm9.5mm0.834m 508190K28mm14.2mm1.036m
167190K22mm9.5mm0.834m 518191K32mm15.5mm0.893m
177191K17.5mm8mm0.765m 528194K29.8mm15mm0.916m
18719418.5mm8mm0.732m 538195K23.3mm11mm0.946m
197194K18.5mm8mm0.732m 548196K22.6mm13.2mm0.954m
20801918.4mm10mm0.699m 558197K22.3mm10mm0.918m
21810118.5mm8mm0.811m 568198K24mm11mm0.907m
228101K18.5mm8mm0.811m 578203K22.6mm14mm0.835m
238106K18.5mm8mm0.835m 588206K28.7mm14.8mm1.025m
24811018mm8mm0.848m 598208K18.1mm8.2mm0.753m
258113K23mm11mm0.875m 608209K21.8mm9.5mm0.792m
268114K22.5mm10mm0.845m 618211K27.7mm14.2mm1.011m
278116K23.5mm10.8mm0.952m 628213K18mm9.8mm0.790m
288118K22.5mm10.2mm0.814m 638230K19.5mm9mm0.817m
298128K22.2mm9.6mm0.832m 648231K18.7mm9.5mm0.940m
308131K22.2mm10.2mm0.926m 658232K19mm9mm0.803m
31813318.4mm8mm0.782m 66823417.5mm9mm0.747m
328134K18mm8mm0.743m 678237K18.7mm9.5mm0.834m
338136K19mm10mm0.815m 688238K23mm10.5mm0.923m
34814017.5mm8mm0.808m 69824417.7mm8mm0.666m
358150K18.5mm10mm0.832m 70824518.1mm8mm0.688m
71825818.6mm8mm0.758m
