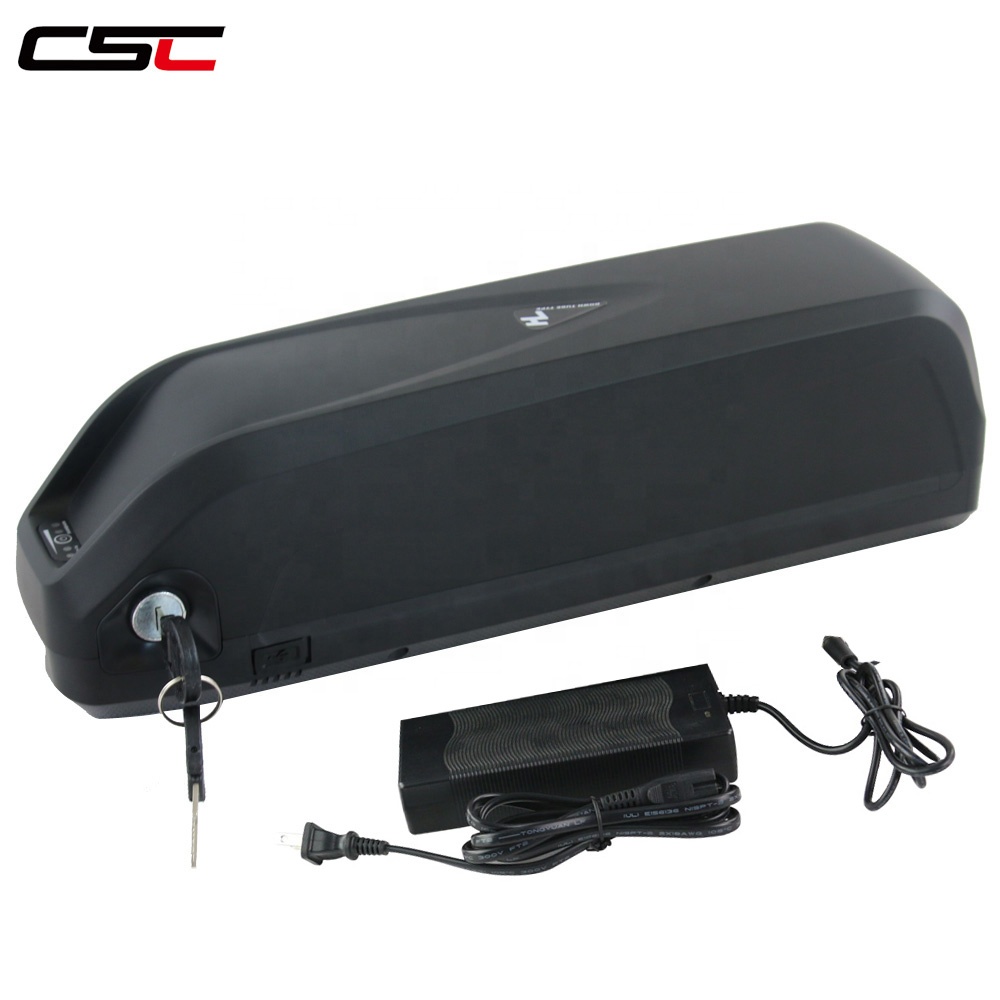

1. On/Off Switch can control battery discharge
2. Waterproof and Solid Aluminium alloy Case
3. Lighted battery LED power Indicator
4. Fashion water bottle style design
5. Lock with Keys securely locks the mount on bike frame
6. Battery with handle convenient to take apart from bike to room for charge
Electric Bike Battery Specifications:
Connector for Controller: Anderson
Nominal Voltage: 48V
Nominal Capacity: 17.5Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Samsung 18650 3500mah Power Cells
BMS: 30 Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 500W 750W 1000W 1500W
Charge Current: 2A
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 36.4-39V
Battery Dimension: 365*90*110mm (Length*Width*Height)
Battery Net Weight: <4.5kg
Cycle life: ≥80% capacity after 800 cycles.
Charge Time: 8-9 Hour
1. Electric bike battery with high quality inbuilt BMS.
2. Ebike battery with AC and DC plug,AC plug will be matched as delivery country if without request.
3. Electric bicycle battery discharge cable and connectors, if without request will left 250mm naked cable.
