1. On/Off Switch can control battery discharge
2. Waterproof and Solid Aluminium alloy Case
3. Lighted battery LED power Indicator
4. Fashion water bottle style design
5. Lock with Keys securely locks the mount on bike frame

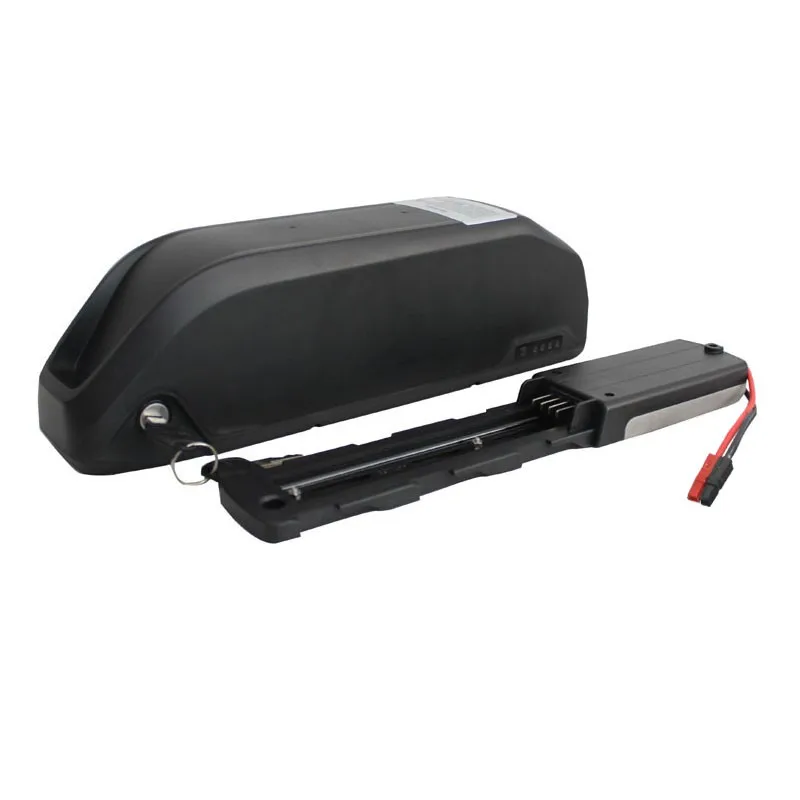

6. Battery with handle convenient to take apart from bike to room for charge

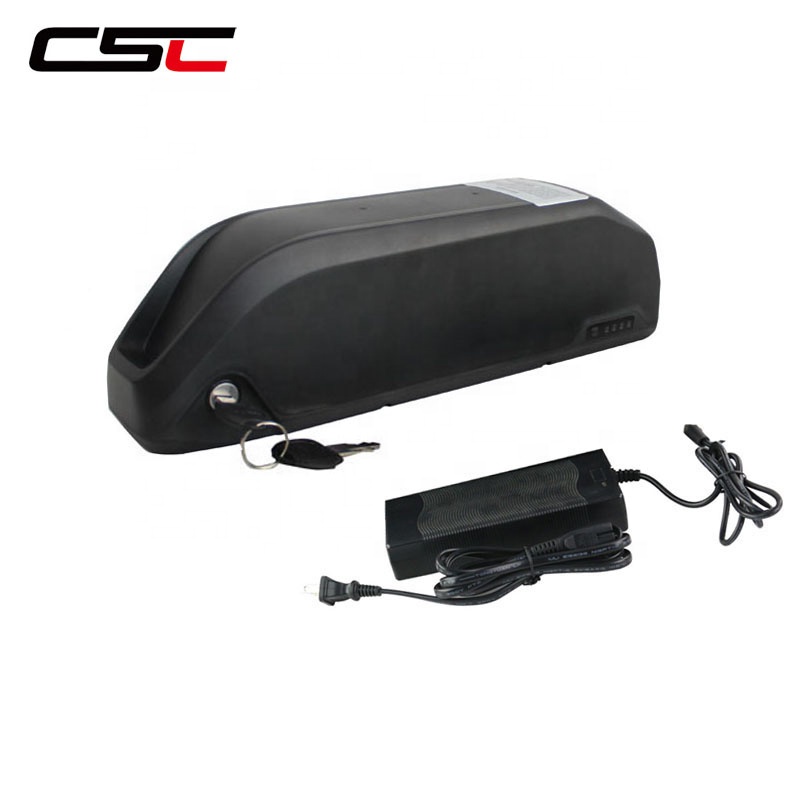

Electric Bike Battery Specifications:Connector for Controller: Anderson
Connector for Controller: Anderson
Nominal Voltage: 52V
Nominal Capacity: 17.5Ah
Composed Type: 14Series 5Paralles 14S5P
Cells: Samsung 18650 3500mah Power Cells
BMS: 40 Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 500W 750W 1000W 1500W
Charge Current: 2A
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Charge Cut-off Voltage: 58.8V
Discharge Cut-off Voltage: 42V
Battery Dimension: 370*90*110mm (Length*Width*Height)
Battery Net Weight: <4.5kg
Cycle life: ≥80% capacity after 800 cycles.
Charge Time: 8-9 Hour
Battery Packing List
1. Electric bike battery with high quality inbuilt BMS.
2. Ebike battery with AC and DC plug,AC plug will be matched as delivery country if without request.
3. Electric bicycle battery discharge cable and connectors, if without request will left 250mm naked cable.
CSC was established in 2009, which is a professional electric bike and carbon fiber bicycle manufacturer located in Fujian, China. All of our Ebike wheels and carbon wheels built by hand which is carefully crafted to provide you with the perfect balance between durability, stability and weight. These products are all in accordance with the EN standards.
Our primary products: Electric bike kit, Electric bike, Electric bike battery, Electric bike motor, Electric bike controller, Electric parts, Carbon bike wheels, carbon bike rim, and carbon parts, etc.
We strive to provide our customers with best quality products and first-class service. With more accessories and components available for online purchase, more efficient checkout systems, you'll find CSC has the power to win more markets and positive feedback. CSC support you in every mile! Meanwhile, all OEM and ODM Wheels and rims are welcome, we will try our best to make our electric bike and carbon wheels preferable for our customers worldwide.
