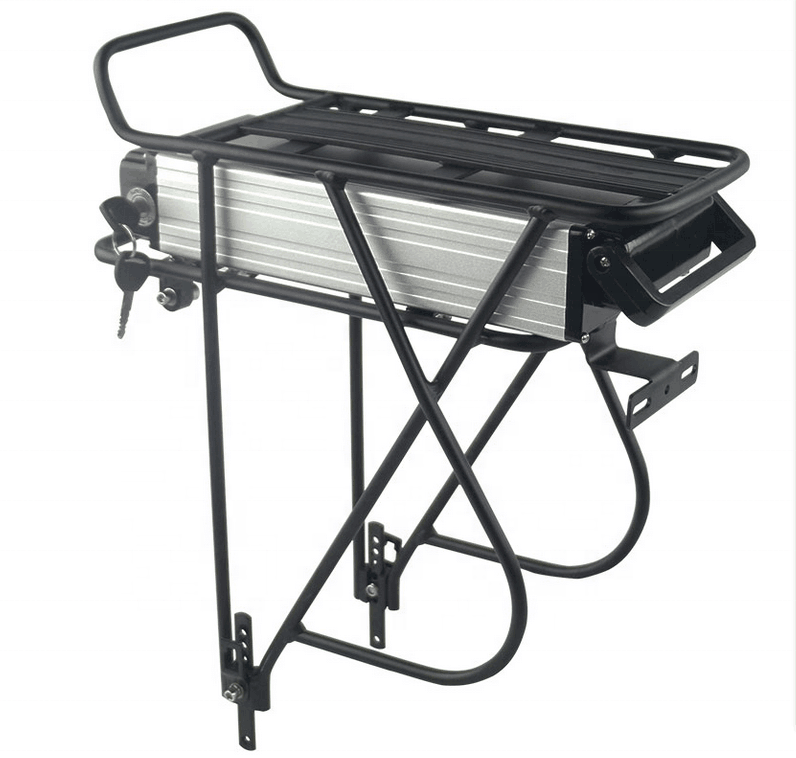

Electric bike Rear rack type luggage battery 48v 20ah Rechargeable E Bike Li ion Battery with Rear Rack for electric bicycle

  • Factory price: There is no set price, you can ask the supplier to get a product quote
    Initial batch size:
     123412 ¥310
  • Delivery merchant:Shanghai CSC Sports Co., Ltd.
  • Type: Lithium Battery Voltage: 48v
    Capacity: 10 - 20Ah Application: Electric bike
    Nominal Capacity (Ah): 20ah Certification: ISO9001/CE/ROHS/UN38.3
    Nominal Voltage (V): 48V Battery Cell: 18650 Li Ion Cell
    Place of Origin: Guangdong
  • Purchase type:
  • Offers:

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies,While supplies last。

  • Net content:5000g
  • Specifications:
  • Delivery to:

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity:
    Inventory0pieces
Product Description

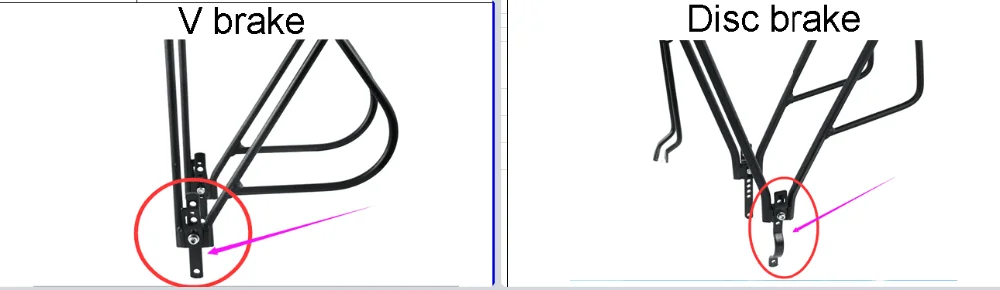

If you order the rear battery with rack, please leave a message which type you need (suitable for Disc brake or V brake).


1. On/Off Switch can control battery discharge
2. Waterproof and Solid Aluminium alloy Case
3. Lighted battery LED power Indicator
4. Beautiful Cadillac LED taillight design
5. Lock with Keys securely locks the mount on bike rack
6. Battery with controller box space


Electric Bike Battery Specifications:


model 48V 20Ah lithium Battey with Rack

Nominal Voltage 48V

Nominal Capacity 20Ah

Composed Type 10Series 6P

Cells Brand 18650 2500mAh Power Cells

BMS 30Amp continuous 70±10Amp maximum

Fit Motor Power 48v 500w , 1000w,1500w

Charge Current 2-5A 2-5A 2-5A 2-5A
Charge Cut-off Voltage 52V
Discharge Cut-off Voltage 39V
Discharge Temperature -20 to 65°C
Charge Temperature 0 to 45°C
Dimensions 435*155*50mm
Battery Weight 4.5kg
Cycle life ≥80% capacity after 800 cycles

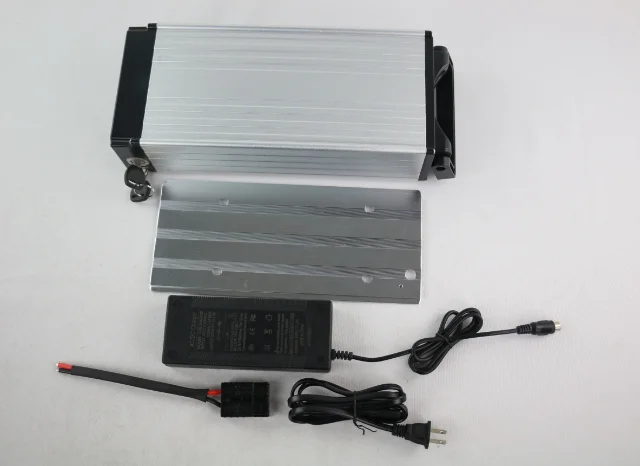

Battery Packing List
1. Electric bike battery with high quality inbuilt BMS.
2. Ebike battery with AC and DC plug,AC plug will be matched as delivery country if without request.

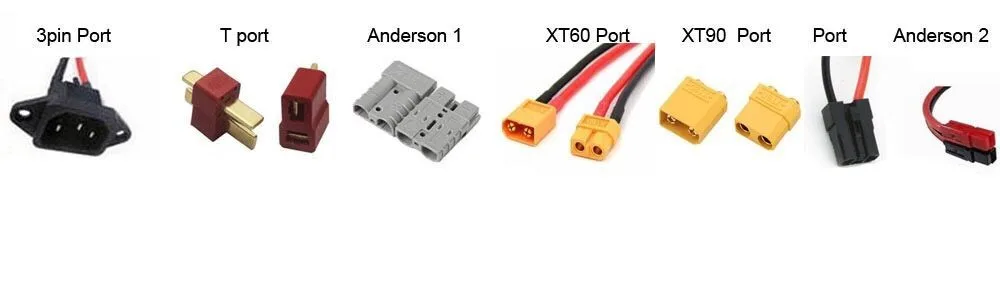

3. Electric bicycle battery discharge cable and connectors, if without request will left 250mm naked cable.
