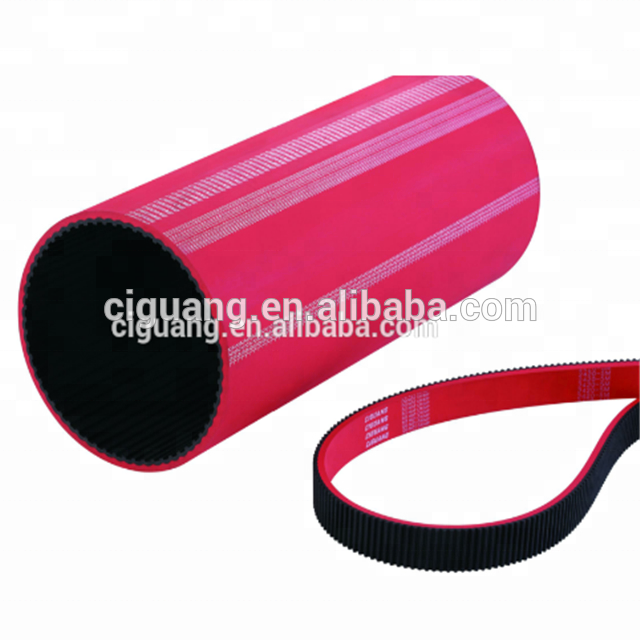

T10/AT10 red rubber coating timing belt
1) with high performance
2) Material: CR. Nylon, modulus glass fiber cord
3) Quality: approvaled ISO,SGS
4) coating rubber color:as your require
T10/AT10 red rubber coating timing belt Features & Benefits:
• Trapezoidal tooth profile
• High efficiency due to positive engagement between belt teeth and pulley grooves
• No re-tensioning required
• No high tension required

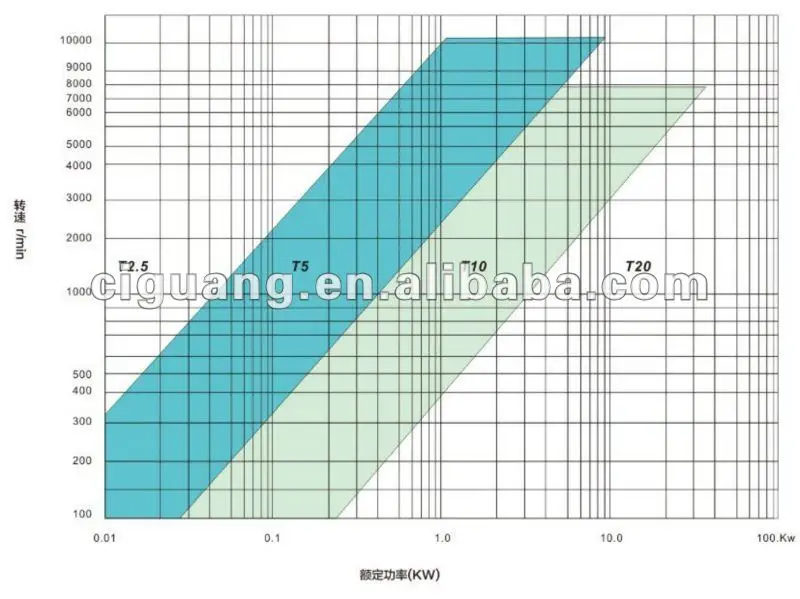

Design horsepower
We are a manufacture with 20 years experience
Advanced producing equipment
Avaliable timing belt details:
T type industrial timing belt specification
T TYPE | PITCH(MM) | TOOTH HEIGHT(MM) | BELT THICKNESS(MM) | ANGLEβ |
MXL | 2.032 | 0.51 | 1.14 | 40 |
XL | 5.080 | 1.27 | 2.30 | 50 |
L | 90525 | 1.91 | 3.60 | 40 |
H | 12.70 | 2.29 | 4.30 | 40 |
XH | 22.225 | 6.35 | 11.20 | 40 |
XXH | 31.750 | 9.53 | 15.70 | 40 |
T2.5 | 2.5 | 0.7 | 1.30 | 40 |
T5 | 5 | 1.20 | 2.20 | 40 |
T10 | 10 | 2.5 | 4.50 | 40 |
T20 | 20 | 5.00 | 8.00 | 40 |
AT5 | 5 | 1.20 | 2.70 | 50 |
AT10 | 10 | 2.50 | 5.00 | 50 |
AT20 | 20 | 5.00 | 8.00 | 50 |
Arc tooth industrial timing belt
Arc ToothType | Pitch pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) |
2M | 2 | 0.75 | 1.36 |
3M | 3 | 1.17 | 2.4 |
5M | 5 | 2.06 | 3.8 |
8M | 8 | 3.36 | 6.00 |
14M | 14 | 6.02 | 10.00 |
20M | 20 | 8.4 | 13.20 |
S2M | 2 | 0.76 | 1.36 |
S3M | 3 | 1.14 | 2.20 |
S4.5M | 4.5 | 1.71 | 2.81 |
S5M | 5 | 1.91 | 3.4 |
S8M | 8 | 3.05 | 5.3 |
S14M | 14 | 5.3 | 10.2 |
RP2M | 2 | 0.76 | 1.36 |
RP3M | 3 | 1.15 | 1.9 |
RP5M | 5 | 1.95 | 3.5 |
RP8M | 8 | 3.2 | 5.5 |
RP14M | 14 | 6.00 | 10 |
Quality management
1,with ISO9001,2008 certified
2, raw material 100% import
3,all new plant are constructed as per international OEM standard
4,Quality level is approaching to international advanced brand.
5, Matched pulley can be performance.
6, accomplish “6SMangement"
Production capacity
Drive with an annual output of 10 million ,400 thousand pulley which not only can meet the demand of multi-species&small quantity and can accept OEM order as well as providing international standard products and tooling the products according to customer’s special requirement:undertaking the earliest delivery time and satisfying your special request.

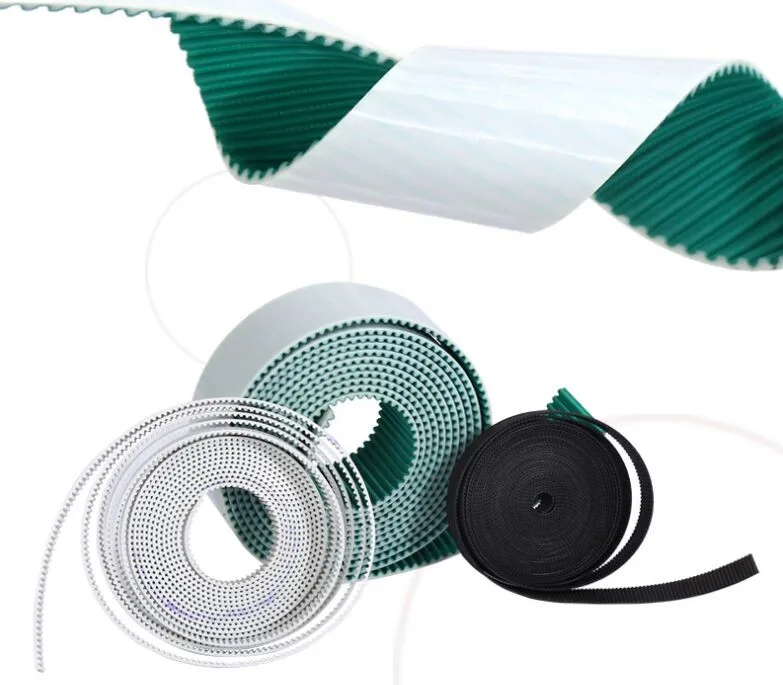

Other type is avaliable: rubber coating timing belt, PU timing belt, open ended belt, double sided
timing belt(DA, DB, special type) etc.
Packaging
carton: 40*50*40 or as your require!
Note:
1, Free choice of different width of synchronous belts
2,Detailed specification is made to order
3,If your needed specifications is not in this form, pls refer to our another mold list and we can make mold according to clients' request as well.
4, Can also produce all of automotive belt
After-sales service
1, offer design and solution at the first time to removing your worries.
2,Solve the problem such as low transmission efficency,lubbrication oil required
3,,distance limit between the drive part and the slave drive part when using the gear
Ciguang warmly welcome customes both at home and abroad come to negotiate business and cooperate with us!!!
