Jet car wash hose with High pressure single or double wire braid reinforced high temperature 1SN 2SN 1/4'' to 1/2''
ISo certified factory, small MOQ, good price, fast delivery
For high pressure washer. Available in blue, black and grey colours, yellow and red can be provided on request.
Structure:
Inner tube: oil resistant synthetic rubber
Reinforcement: one/two braid of high tensile steel wire
Cover: oil, weather and abrasion resistant synthetic rubber
Working Temp.: -40°C to +155°C
Application: hose suitable to wash cars or machines
| DN | I.D. | O.D. | W.P. | B.P. | Min B.R. | Weight | ||||
| mm | inch | mm | bar | psi | bar | psi | mm | Kg/m | ||
| One wire layer | 6 | 6.4 | 1/4” | 13.1 | 250 | 3650 | 1000 | 14600 | 100 | 0.21 |
| 8 | 7.9 | 5/16” | 14.7 | 250 | 3650 | 1000 | 14600 | 110 | 0.26 | |
| 10 | 9.5 | 3/8” | 17.1 | 250 | 3650 | 1000 | 14600 | 120 | 0.36 | |
| 12 | 12.7 | 1/2” | 20.4 | 250 | 3100 | 840 | 12100 | 160 | 0.45 | |
| Two wire layer | 6 | 6.4 | 1/4” | 14.7 | 400 | 5800 | 1600 | 23200 | 100 | 0.37 |
| 8 | 7.9 | 5/16” | 16.3 | 400 | 5800 | 1600 | 23200 | 110 | 0.435 | |
| 10 | 9.5 | 3/8” | 18.7 | 400 | 5800 | 1600 | 23200 | 120 | 0.556 | |
| 12 | 12.7 | 1/2” | 21.9 | 400 | 4350 | 1200 | 17400 | 160 | 0.645 | |

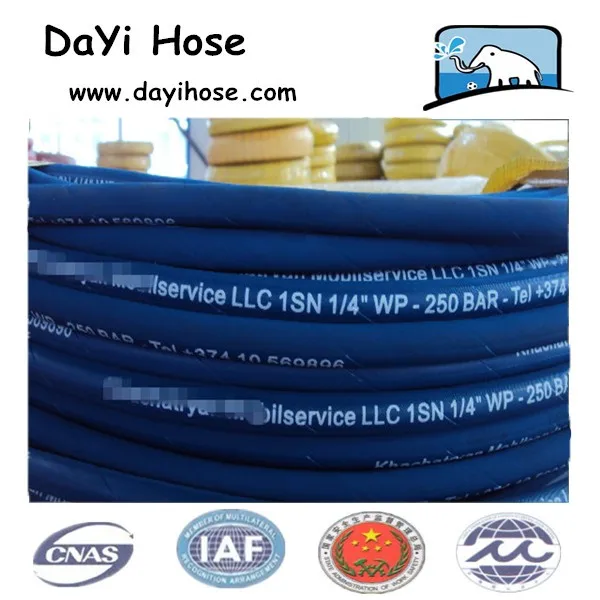

Blue color of Jet car wash hose with High pressure single or double wire braid reinforced high temperature 1SN 2SN 1/4'' to 1/2''
Red color of Jet car wash hose with High pressure single or double wire braid reinforced high temperature 1SN 2SN 1/4'' to 1/2''

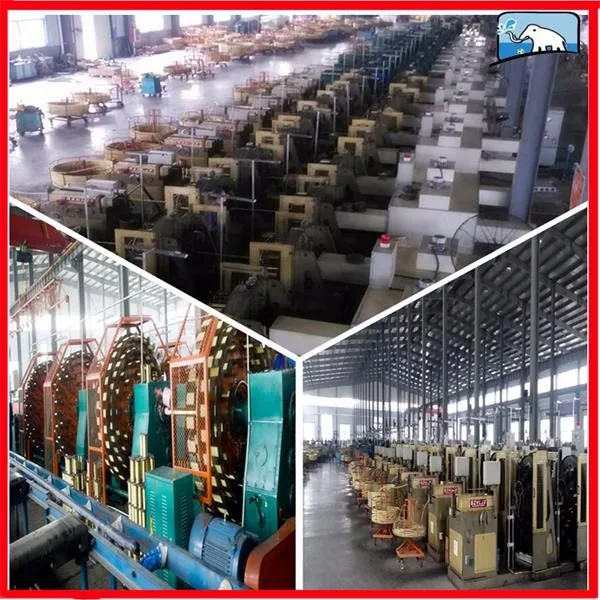

Step to make the Jet car wash hose with High pressure single or double wire braid reinforced high temperature 1SN 2SN 1/4'' to 1/2''
HEBEI DAYI RUBBER HOSE CO.,LTD.is specialized in manufacturing steel wire braided hydraulic hose, steel wire spiral hydraulic hose,metal hose, Teflon hose, steam hose and relevant machines and equipment. At present,our company have more than 300 employees and about 20 technicians.
Jet car wash hose with High pressure single or double wire braid reinforced high temperature 1SN 2SN 1/4'' to 1/2''
We will offer the high quality service and know the order goods production process. Quality first, the supremacy services is our concept. We will keep working on servicing our customers heartedly with improving management, technology and products.
A. We can design and use customer company brand.
B. we can produce hose with large size from 3/16 to 4 inch.
You could contact us in anytime if there is any question and we promise to reply you within 24 hours. We will do better than you think!
