RUBBER HOSE (SAE&DIN STANDARD)
| SAE100R 1AT CONSTRUCTION: This hose consists of an inner tube of oil synthetic rubber, single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover. APPLICATIONS: Hose range suitable to carry hydraulic fluids such as glycol, mineral oils,fuels,lubrication,emulsion,hydrocarbons etc. WORKING TEMPERATURE: From-40°C up to +100°C |
| REFERENCE SPECIFICATION | |||||||||
| Nominaldiameter | Inside Diameter | Reinforcement | Outside | Working Pressure | Proof Pressure | ||||
| Diameter | Diameter | ||||||||
| mm | mm | mm | Mpa max | PSI | PSI | ||||
| mm | inch | min | max | min | max | max | |||
| 4.8 | 3/16" | 4.6 | 5.4 | 20.7 | 3002 | 6003 | |||
| 6.4 | 1/4" | 6.2 | 7 | 10.8 | 11.4 | 13.5 | 19 | 2755 | 5496 |
| 7.9 | 5/16" | 7.7 | 8.5 | 12.5 | 13.1 | 15.4 | 17.2 | 2494 | 5003 |
| 9.5 | 3/8" | 9.3 | 10.1 | 14.5 | 15.1 | 17.5 | 15.5 | 2248 | 4495 |
| 12.7 | 1/2" | 12.3 | 13.5 | 17.7 | 18.3 | 20.6 | 13.8 | 2001 | 4002 |
| 15.9 | 5/8" | 15.5 | 16.7 | 21.1 | 21.7 | 24 | 10.3 | 1494 | 3002 |
| 19 | 3/4" | 18.6 | 19.8 | 24.6 | 25.4 | 27.7 | 8.6 | 1247 | 2494 |
| 25.4 | 1" | 25 | 26.4 | 32.1 | 32.9 | 35.4 | 6.9 | 1001 | 2001 |
| 31.8 | 1-1/4" | 31.4 | 33 | 40.8 | 41.6 | 44.1 | 4.3 | 624 | 1247 |
| 38.1 | 1-1/2" | 37.7 | 39.3 | 47.2 | 48 | 50.5 | 3.4 | 493 | 1001 |
SAE100R 2AT
CONSTRUCTION
This hose consists of an inner tube of oil synthetic rubber, two wire braids reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils,fuels,lubrication,emulsion,hydrocarbons etc.
WORKING TEMPERATURE
From-40 degree up to +100 degree
| REFERENCE SPECIFICATION | ||||||||
| Nominal | Inside | Reinforcement | Outside | Working | ||||
| diameter | Diameter | Diameter | Diameter | Pressure | ||||
| mm | mm | mm | MPa | |||||
| mm | inch | min | max | min | max | max | max | PSI |
| 4.8 | 3/16" | 4.6 | 5.4 | 10.6 | 11.7 | 14.1 | 34.5 | 5003 |
| 6.4 | 1/4" | 6.2 | 7 | 12.5 | 13.1 | 15.2 | 34.5 | 5003 |
| 7.9 | 5/16" | 7.7 | 8.5 | 14.2 | 14.8 | 17.1 | 29.3 | 4249 |
| 9.5 | 3/8" | 9.3 | 10.1 | 16.2 | 16.8 | 19.1 | 27.6 | 4002 |
| 12.7 | 1/2" | 12.3 | 13.5 | 19.4 | 20 | 22.3 | 24.1 | 3495 |
| 15.9 | 5/8" | 15.5 | 16.7 | 22.8 | 23.4 | 25.8 | 19 | 2755 |
| 19 | 3/4" | 18.6 | 19.8 | 26.4 | 27.2 | 29.4 | 15.5 | 2248 |
| 25.4 | 1" | 25 | 26.4 | 33.9 | 34.7 | 37.1 | 13.8 | 2001 |
| 31.8 | 1-1/4" | 31.4 | 33 | 42.8 | 43.6 | 46.1 | 11.2 | 1624 |
| 38.1 | 1-1/2" | 37.7 | 39.3 | 49.2 | 50 | 52.5 | 8.6 | 1247 |
| 50.8 | 2" | 50.4 | 52 | 61.9 | 62.7 | 65.2 | 7.8 | 1131 |

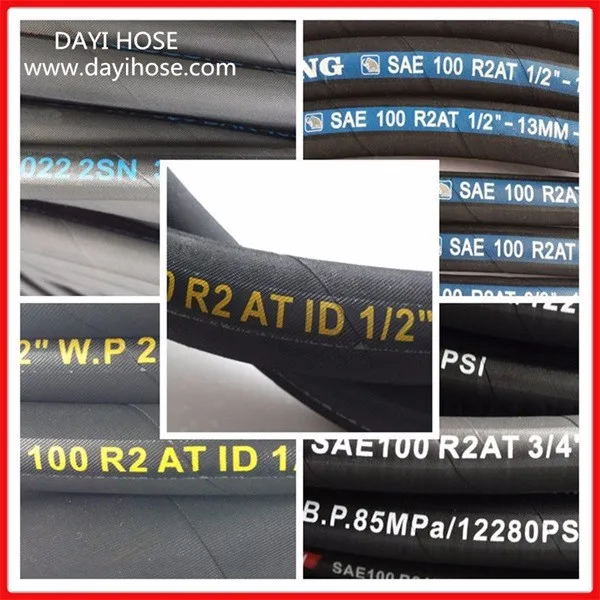

Image of steel wire braided flexible hydraulic rubber hose

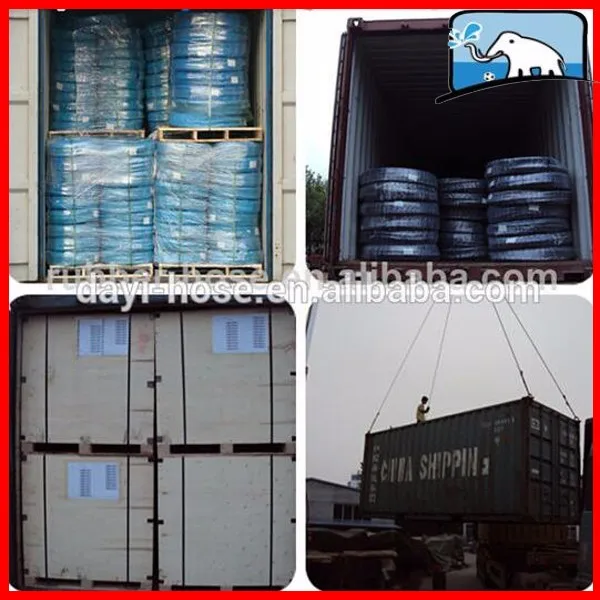

Packing:After finishing the hose production, we will pack the kelly hose.

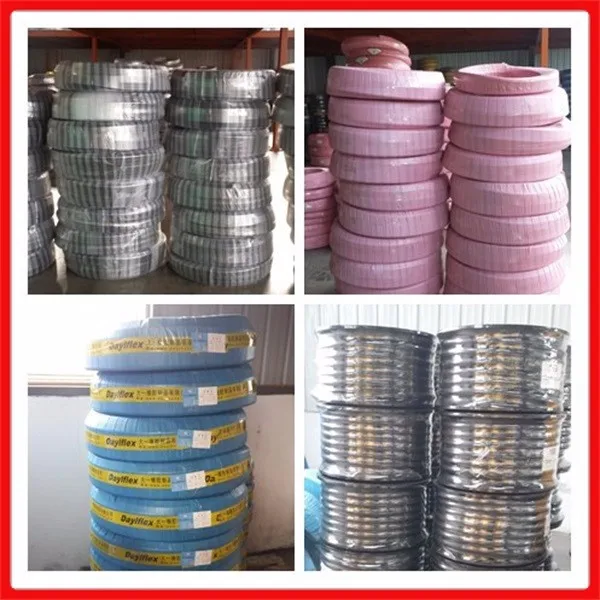

In general, the packing will use transparent PVC film packing, woven bag, pallet, reel packing
Special packing is available according to customers' requirements.
1). DAYI RUBBER PRODUCTS CO.,LTD is a leading manufacturer&exporter of various rubber hose, automobile air conditioning hose in China.
2).More than ten years’ production & export experience. Products quality meets European and American clients satisfaction.
3).100% QC inspection Before Shipment.
4).Quality Assurance: At least 1 year use after receipt of the goods
5). Welcome custom size. We can make the production according to your drawing or request.

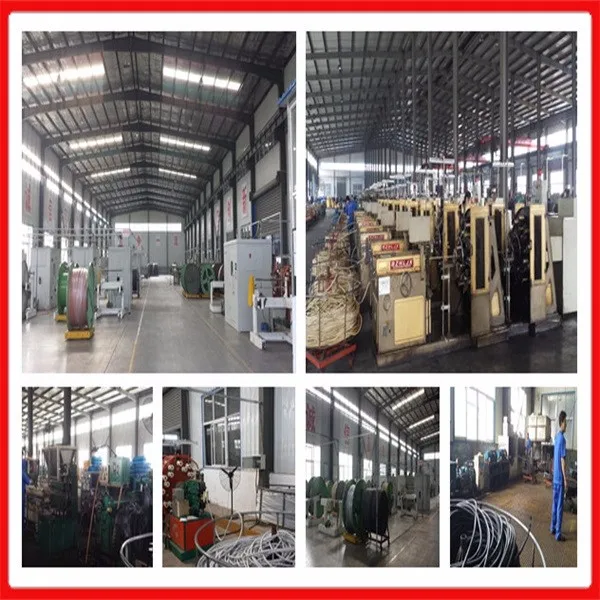

Workshop

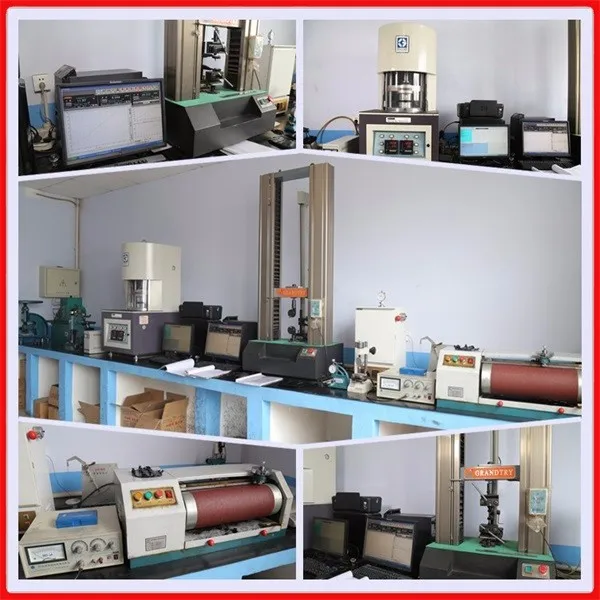

Laboratory

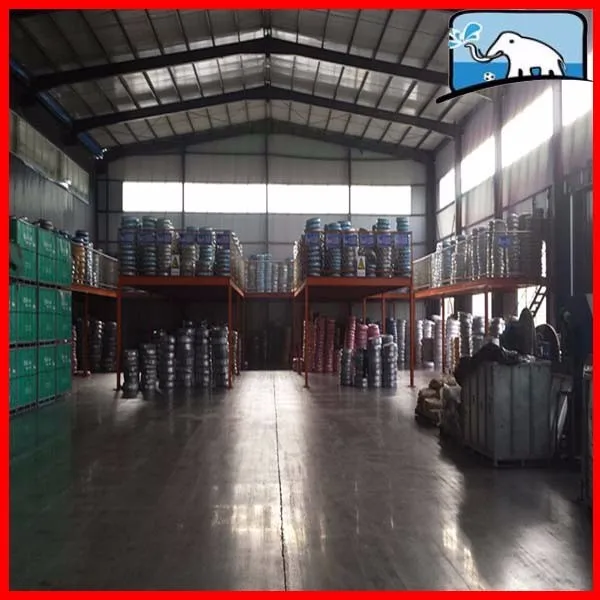

Warehouse
1.We can offer OEM services.
2.We can provide FERR SAMPLE for our customers
3.We welcome clients to visit our factory leading to better understanding of our production.
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer’s request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we have been offering OEM services for more than 10 years.
Q4. Does your product have different color hose?
A. Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
A. It usually takes 5 to 30 days, which generally depends on the quantity
your order and our storage.
