E-ROAD road safety Aluminum and plastic solar LED cat eyes road stud

  • Factory price: There is no set price, you can ask the supplier to get a product quote
    Initial batch size:
     123412 ¥310
  • Delivery merchant:Hebei E-Road Traffic Co., Limited
  • Place of Origin: Hebei, China (Mainland) Brand Name: E-ROAD
    Model Number: ER-SRS Name: led traffic safety solar road stud
    solar panel: :2.5W mono or poly silicon solar Unit weight: :0.33KG
    Material: Cast Aluminium shell and PC Road side reflectors color: White/ Yellow/ Red/ Gre
    Resist copression: over 20 tons Life time: 5 years (Ni-MH)
    NI-MH Battery: one or two 1.2V/600MAH
  • Purchase type:
  • Offers:

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies,While supplies last。

  • Net content:5000g
  • Specifications:
  • Delivery to:

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity:
    Inventory0pieces

Specification of  Solar Road Stud





1) Solar panel: 2.5V/0.2W mono or poly silicon solar panel



Stability and high efficiency photoelectric conversion, the average conversion rate is 16%--17%



2) Battery: 1.2V/1200mAh rechargeable battery



3) Material: Aluminum body, PC clear window



4) 4 or 6 pcs φ5 super bright LEDs, frequency/flash rate: 2Hz



Each LED spec.



Item

Symbol

Max. Rating

Unit

Forward Current

IF

20

mA

Pulse Forward Current

IFP

100

mA

Allowable Reverse Current

IR

10

uA

Power Dissipation

PD

75

mW

Operating Temperature

Topr

-40~+85

°C

Dice Temperature

Tstg

-40~+100

°C

Soldering Temperature

Tsod

260

°C







5) Light intensity & view distance:8,000-10,000mcd & over 800m



6) Working time:100 hours constant lighting after fully charged



7) Working model: flashing/ steady light



8) Color: Amber, red, blue, green, white



9) Resist compression: above 20 tons



10) Waterproof grade IP>68



11) Life time: about 5 years (Ni-MH)

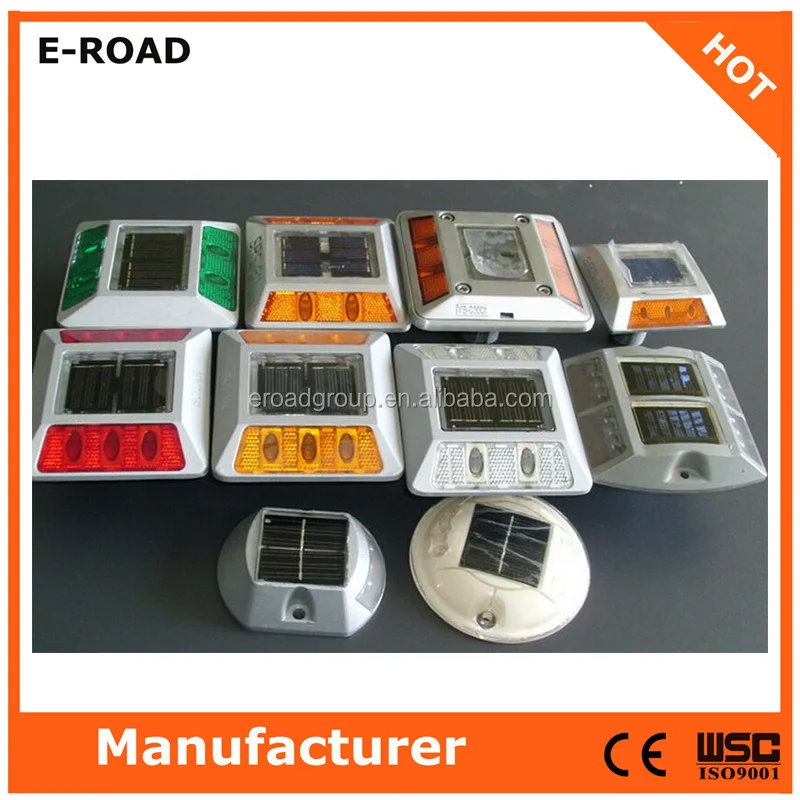

Details of  Solar Road Stud

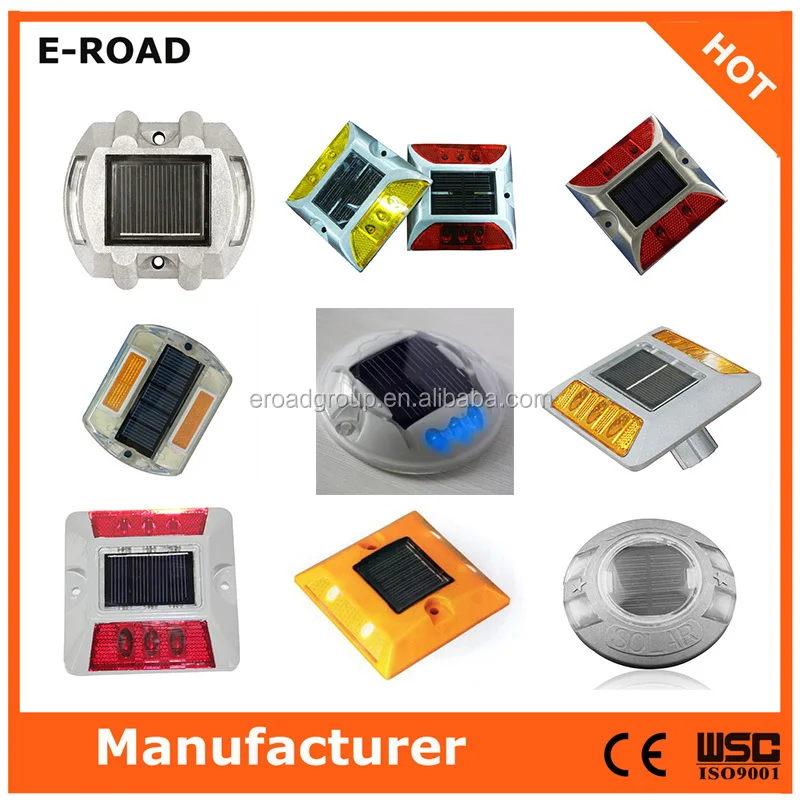

 Other Types of Solar Road Stud



Contact

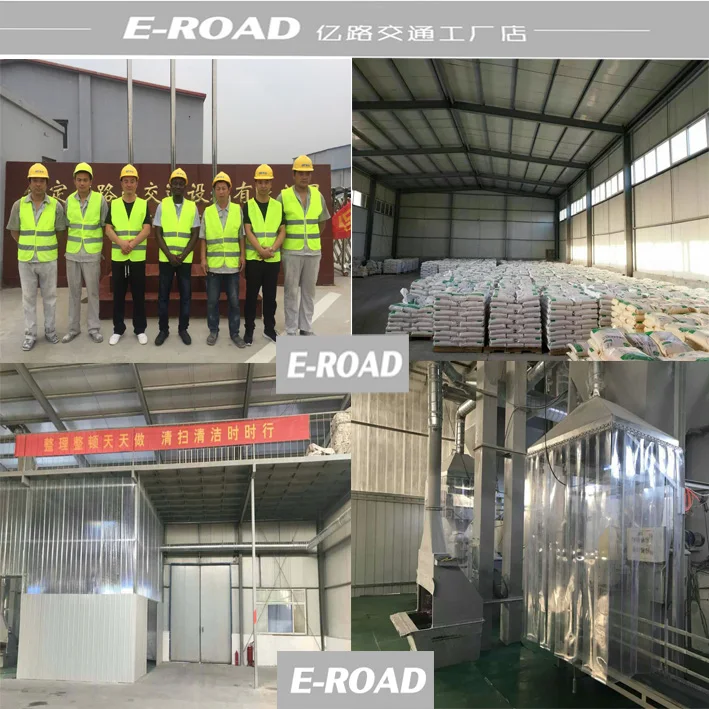

Company Information

we specialize in Car Lock and Road Safety  field for 20 years in Hebei Province.

With the strength of
Road Stud / Cat Eyes
Thermoplastic Road Marking Paint
Flexible Delineator  / Warning Post
Wheel Clamp/ Packing Lock and Facility
Traffic Sign
Guardrail
Reflective Products

FREE SAMPLES can be sent on request.
