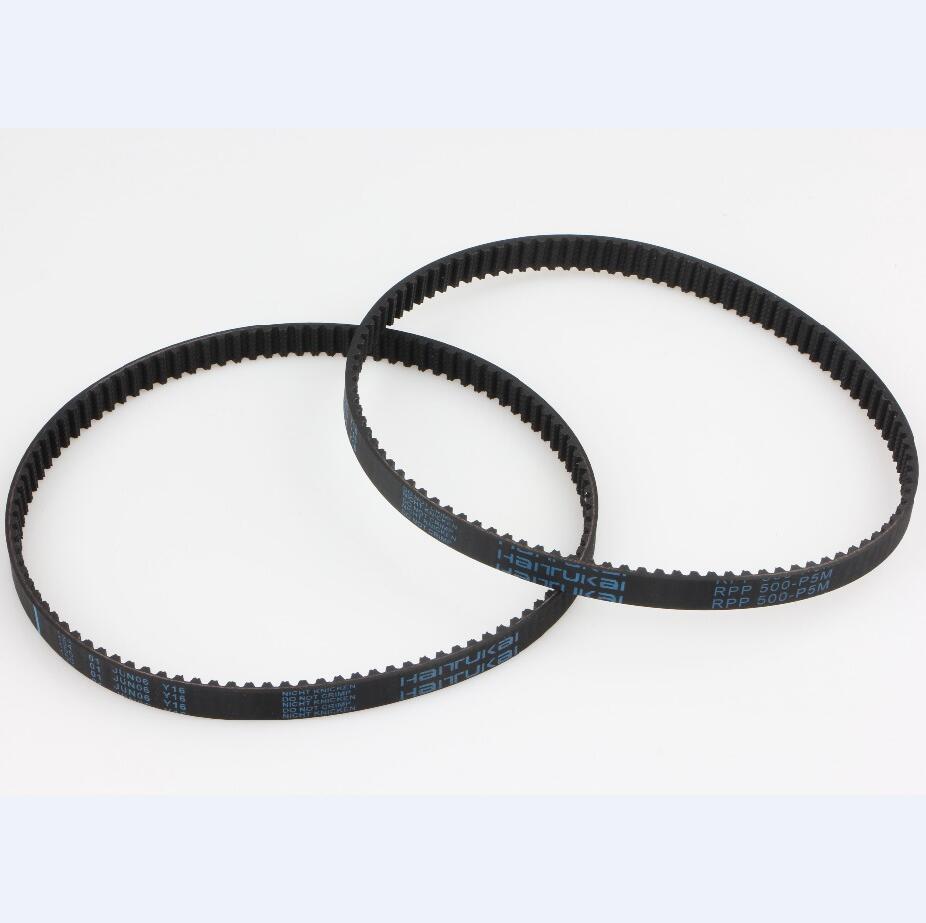

Industrial synchronous belt
Industrial synchronous belt drive is a new transmission mode that use meshing between teeth of belt to have impetus to work.
They can be used in textile industry, light industry, chemical industry, industry electrical appliances, machinery for transferring power.
TYPE
MXL XXL XL L H XH XXH T2.5
T5 T10
HTD:2M 3M 5M 8M 14M 20M
STS:S2M S3M S4.5M S5M S8M S14M
RPP: RP5M RP8M RP14M
| Gear Code | Type | Pitch Pb(mm) | Tooth height ht(mm) | Belt thickness hs(mm) |
| HTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6 | |
| 14M | 14 | 6.02 | 10 | |
| 20M | 20 | 8.4 | 13.2 | |
| STS | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.2 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| RPP | 2M | 2 | 0.76 | 1.36 |
| 3M | 3 | 1.15 | 1.9 | |
| 5M | 5 | 1.95 | 3.5 | |
| 8M | 8 | 3.2 | 5.5 | |
| 14M | 14 | 6 | 10 |
1.Q: Are you trading company or manufacturer ?
A: We are factory.
2.Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. Or it is 7-35 days if the goods are not in stock, it is according to quantity.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
