launch heavy duty 24v truck diesel vehicle diagnostic machine
| Introduction: |
X-431 V+ is a brand new advanced automotive fault diagnostic tool based on Android system. It passes on Launch advantages in automotive fault diagnostic technology, such as wide Car and Truck model coverage, powerful function, abundant special function and accurate test data, etc.
X-431 V+ with X-31 HD Heavy Duty Scanner achieves full car and truck models and full system fault diagnosis through the Bluetooth communication between Data Link Connector (DLC) and smart mobile terminal. Two separate diagnostic interfaces are supplied, one for 12 Volt systems and 24 Volt Truck Systems. Plus a full case of relevant connectors. |
| Special Features: |
1. Wifi Internet connection 3. Update: Free Online Update for One Year 4. 10.1 inch multi-touch capacitor screen, more smooth operation 5. Multi-Languages: English, Arabic, German, French, Spanish, Russian, Japanese. |
| Feature: |
| Wireless Bluetooth Diagnosis Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient. Support various car models Industrial shockproof design Industrial shockproof design is perfect for the working environment in repair shops. Wide diagnostic software coverage. Accurate test data. Software based on Android, matching with more diagnostic hosts. Release new software version timely to let customers enjoy latest service. Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required. Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of worldwide models. |
| Specification |
| System: Android 7.1 Display:10.1 inch capacitive touch screen CPU:Quad-core 1.4GHz RAM: 2G Body memory :16GB (expandable to 128GB) Battery:7000mAh lithium polymer battery Connectivity:4G (no SIM card ) wifi Front camera: no Rear camera: 5million pixels Dimension: 264*210*30mm(LxWxH) Update year: 2 years for free Total Weight: 15kg |
| Connector Parameters |
| Connection Method: Standard OBDⅡ Dimension:103mm*62mm*28mm Working Voltage:9V DC--18V DC Test Voltage:DC12V Power Consumption:≤2W Bluetooth:10 meters Diagnosis:Bluetooth WorkingTemperature: -10 ℃-50℃ |
LAUNCH X-431V+ Adaptors:
>>Do You Still Need The Heavy Duty Module For 24v Trucks ??
--here is a Optional launch heavy duty module for you. details please check as following :
Part 1: heavy-duty truck diagnostic module details
X-431 V+ heavy-duty module is specifically designed to diagnose diesel and gas-fueled heavy-duty vehicle models of 12V & 24V voltage.
Ports and indicator of heavy-duty truck module
Main Features:
1.Unique LAUNCH cloud diagnosis technology
2.Support wired diagnosis
3.Support diagnosis for all car models of gasoline, diesel and natural gas engines that meet
Euro III-Euro VI standards
4.Industrial shockproof design, perfect for the working environment in repair shops
5.Advanced modularization design technology, automatically switch between12V and24V
power
6. Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of all car models worldwide
7. Multiple diagnostic devices available, such as X-431 PR03S, X-431 PAD III, etc
Software diagnostic platform:
Read fault code
Clear fault code
Read data stream
Actuation Test
Special functions
Read freeze frame
ECU program

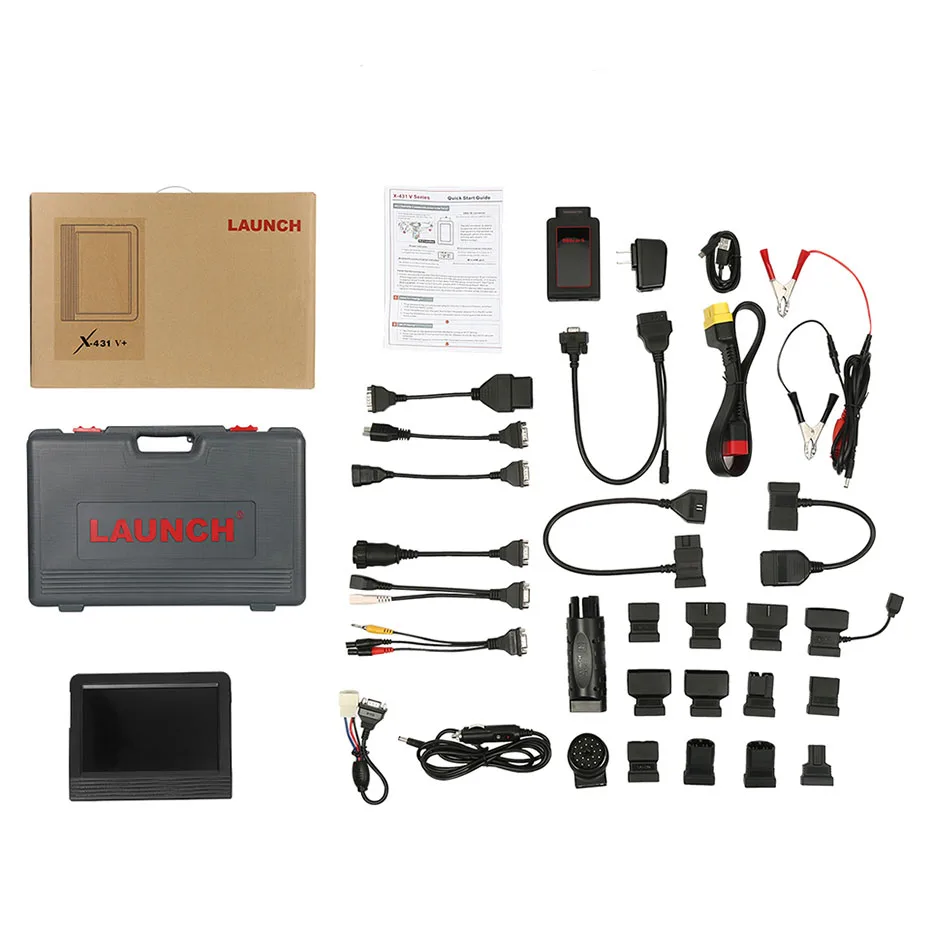

LAUNCH X-431V+ Adaptors of Heavy Duty Module:
Heavy Duty Module X-431V+HD
Details of adaptors:
LAUNCH X-431V+ Diagnostic Device Standard Plastic Box Packaging
LAUNCH X-431 Heavy Duty Module Standard plastic box packaging
LAUNCH X-431V+ Scanner Standard Independent Transport Packaging
