24v heavy duty diesel automatic scanner diagnostic tool autoboss star auto scanner auto scanner diagnostic tools

Factory price： There is no set price, you can ask the supplier to get a product quote

Initial batch size：
123412 ¥310 ~~¥Unset Price~~
Delivery merchant：广州Junliye进口公司出口有限公司

Type：	diagnostic tool	Voltage：	12V/24V DC
Power：	12v/24v car scanner	Certification：	CE auto scanner diagnostic tools
Applicable Models：	Universal	Place of Origin：	Guangdong, China (Mainland)
Brand Name：	LAUNCH X 431 auto scanner diagnostic to	Model Number：	X-431V+ HD auto scanner diagnostic to
Warranty：	12 Months	Vehicle Coverage：	12v & 24v, Petrol & Diese
Language：	muitl-languages	Software Update：	Software Update Online 2 Year
Update method：	One Click Upgrade	Touch screen：	10.1 inch
Connection：	Standard OBD II	Diagnosis method：	Bluetooth Diagnosis, within 10 me
Adaptors：	LAUNCH X-431V+HD full set adaptors	CPU for device：	fastest, Quad-core 1.4GHz
Printer：	optional

Purchase type： Foundry production Manufacturer's own brand
Promotional price：Promotion¥0.0
Offers：

This product is free of shipping

Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

Full999 yuanGet beautiful for freeFreebies，While supplies last。
Net content：5000g
Specifications：

Delivery to：
Please select the receiving city
Please select

Please select

Please select
Purchase quantity：

Inventory0pieces 【Complimentary】

24v heavy duty diesel automatic scanner diagnostic tool autoboss star auto scanner auto scanner diagnostic tools 24v heavy duty diesel automatic scanner diagnostic tool

Product Description

Introduction:

X-431 V+ is a brand new advanced automotive fault diagnostic tool based on Android system. It passes on Launch advantages in automotive fault diagnostic technology, such as wide Car and Truck model coverage, powerful function, abundant special function and accurate test data, etc.

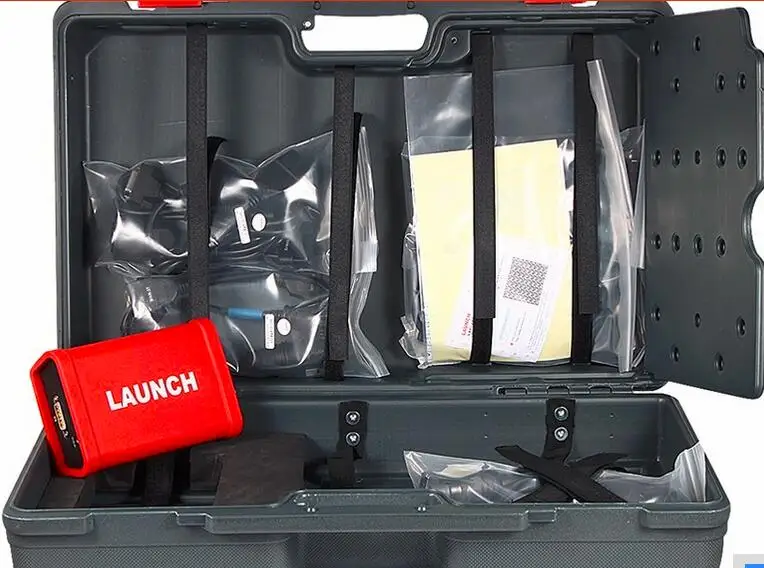

X-431 V+ with X-31 HD Heavy Duty Scanner achieves full car and truck models and full system fault diagnosis through the Bluetooth communication between Data Link Connector (DLC) and smart mobile terminal. Two separate diagnostic interfaces are supplied, one for 12 Volt systems and 24 Volt Truck Systems. Plus a full case of relevant connectors.

Special Features:

1. Wifi Internet connection
2. Wireless Bluetooth Diagnosis

3. Update: Free Online Update for One Year

4. 10.1 inch multi-touch capacitor screen, more smooth operation

5. Multi-Languages: English, Arabic, German, French, Spanish, Russian, Japanese.

Feature:

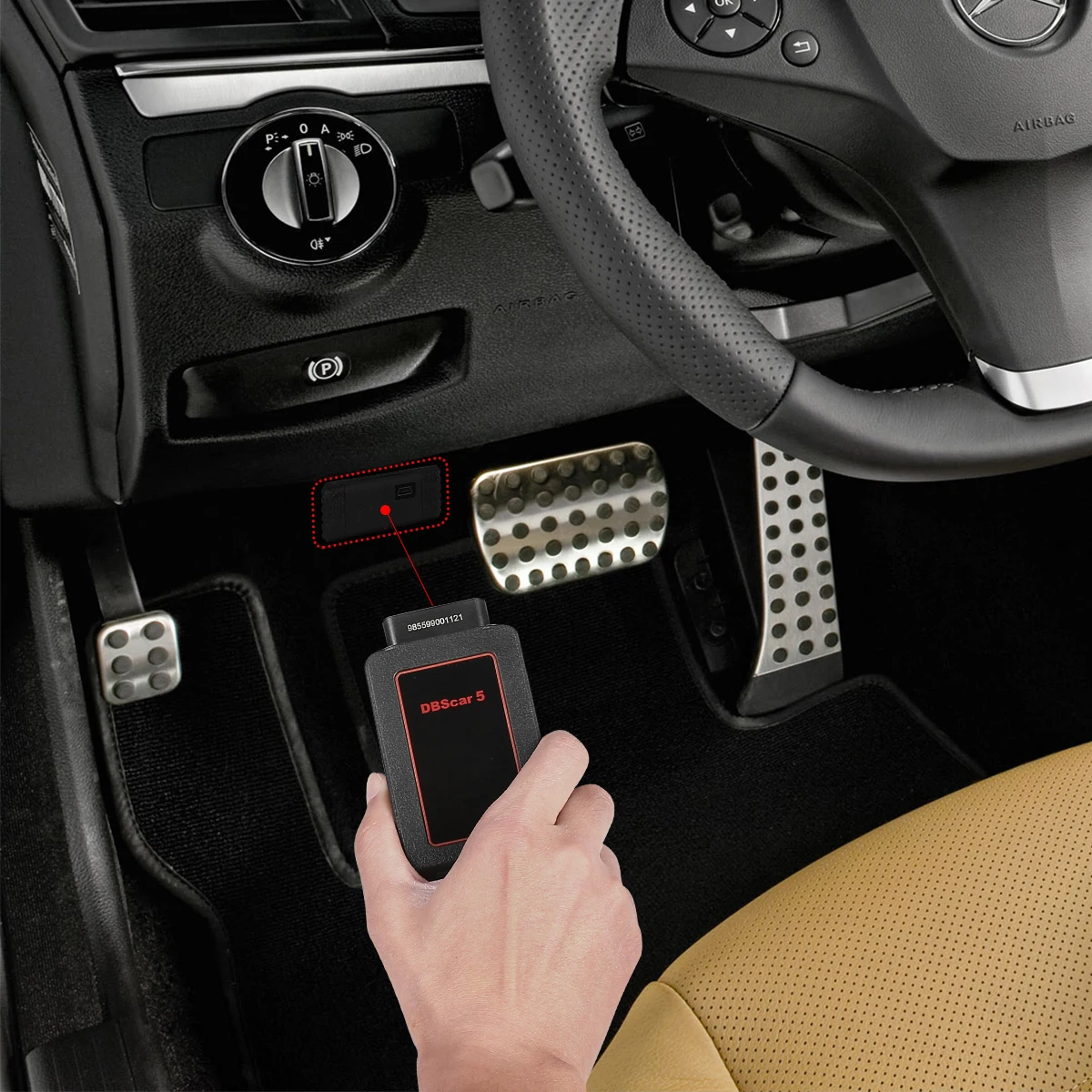

Wireless Bluetooth Diagnosis
Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient.
Support various car models
Industrial shockproof design
Industrial shockproof design is perfect for the working environment in repair shops.
Wide diagnostic software coverage.
Accurate test data.
Software based on Android, matching with more diagnostic hosts.
Release new software version timely to let customers enjoy latest service. Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required.
Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of worldwide models.

Connector Parameters

Connection Method: Standard OBDⅡ
Dimension:103mm*62mm*28mm
Working Voltage:9V DC--18V DC
Test Voltage:DC12V
Power Consumption:≤2W
Bluetooth:10 meters
Diagnosis:Bluetooth
WorkingTemperature: -10 ℃-50℃

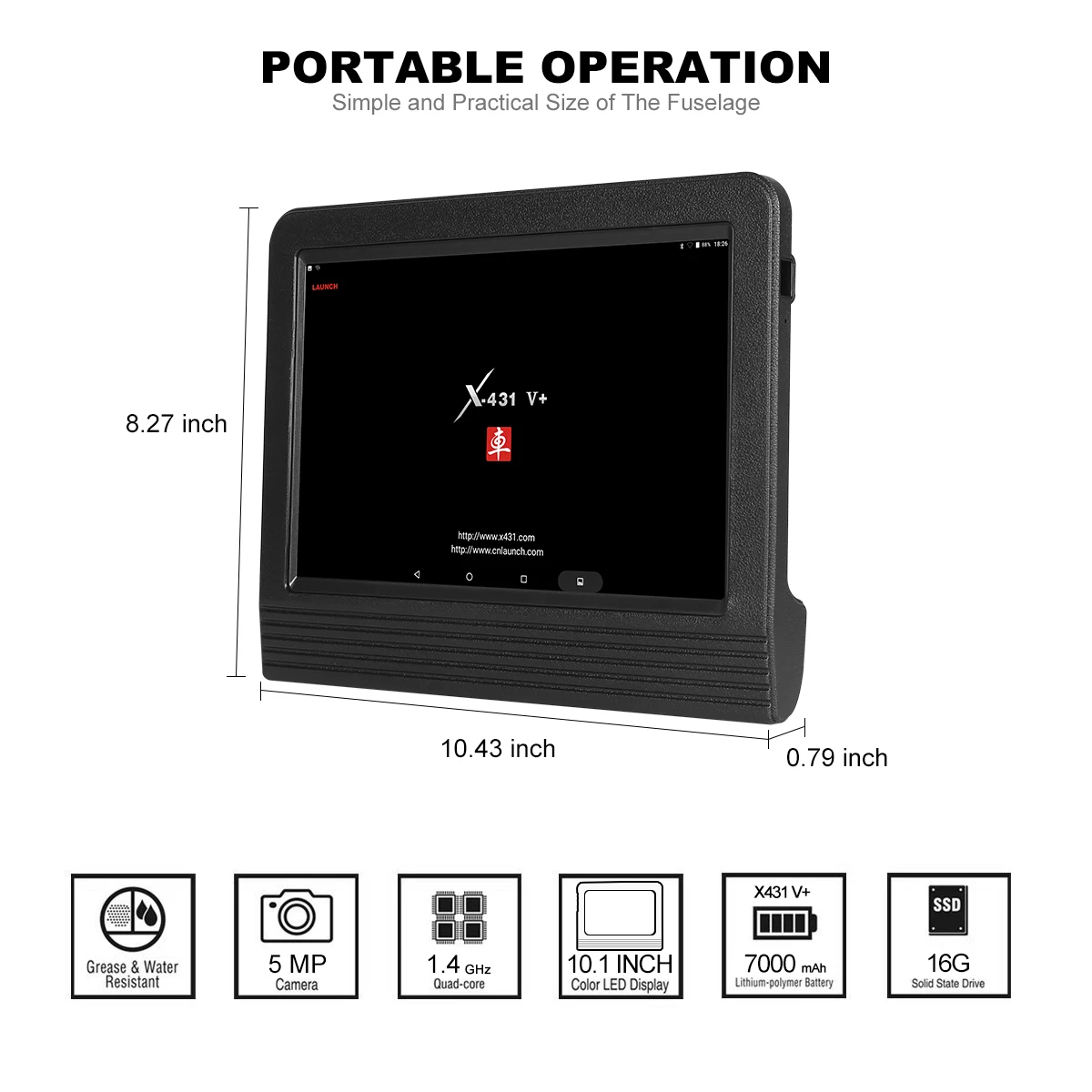

Specification

System: Android 7.1
Display:10.1 inch capacitive touch screen
CPU:Quad-core 1.4GHz RAM: 2G Body memory :16GB (expandable to 128GB) Battery:7000mAh lithium polymer battery Connectivity:4G (no SIM card ) wifi
Front camera: no Rear camera: 5million pixels
Dimension: 264*210*30mm(LxWxH)
Update year: 2 years for free
Total Weight: 15kg

>>Do You Still Need The Heavy Duty Module For 24v Trucks ??

--Here is a Optional launch heavy duty module for you. details please check as following :

Part 1: heavy-duty truck diagnostic module details
X-431 V+ heavy-duty module is specifically designed to diagnose diesel and gas-fueled heavy-duty vehicle models of 12V & 24V voltage.

Ports and indicator of heavy-duty truck module

Main Features:

1.Unique LAUNCH cloud diagnosis technology
2.Support wired diagnosis
3.Support diagnosis for all car models of gasoline, diesel and natural gas engines that meet
Euro III-Euro VI standards
4.Industrial shockproof design, perfect for the working environment in repair shops
5.Advanced modularization design technology, automatically switch between12V and24V
power
6. Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of all car models worldwide
7. Multiple diagnostic devices available, such as X-431 PR03S, X-431 PAD III, etc

Software diagnostic platform:

Read fault code
Clear fault code
Read data stream
Actuation Test
Special functions
Read freeze frame
ECU program

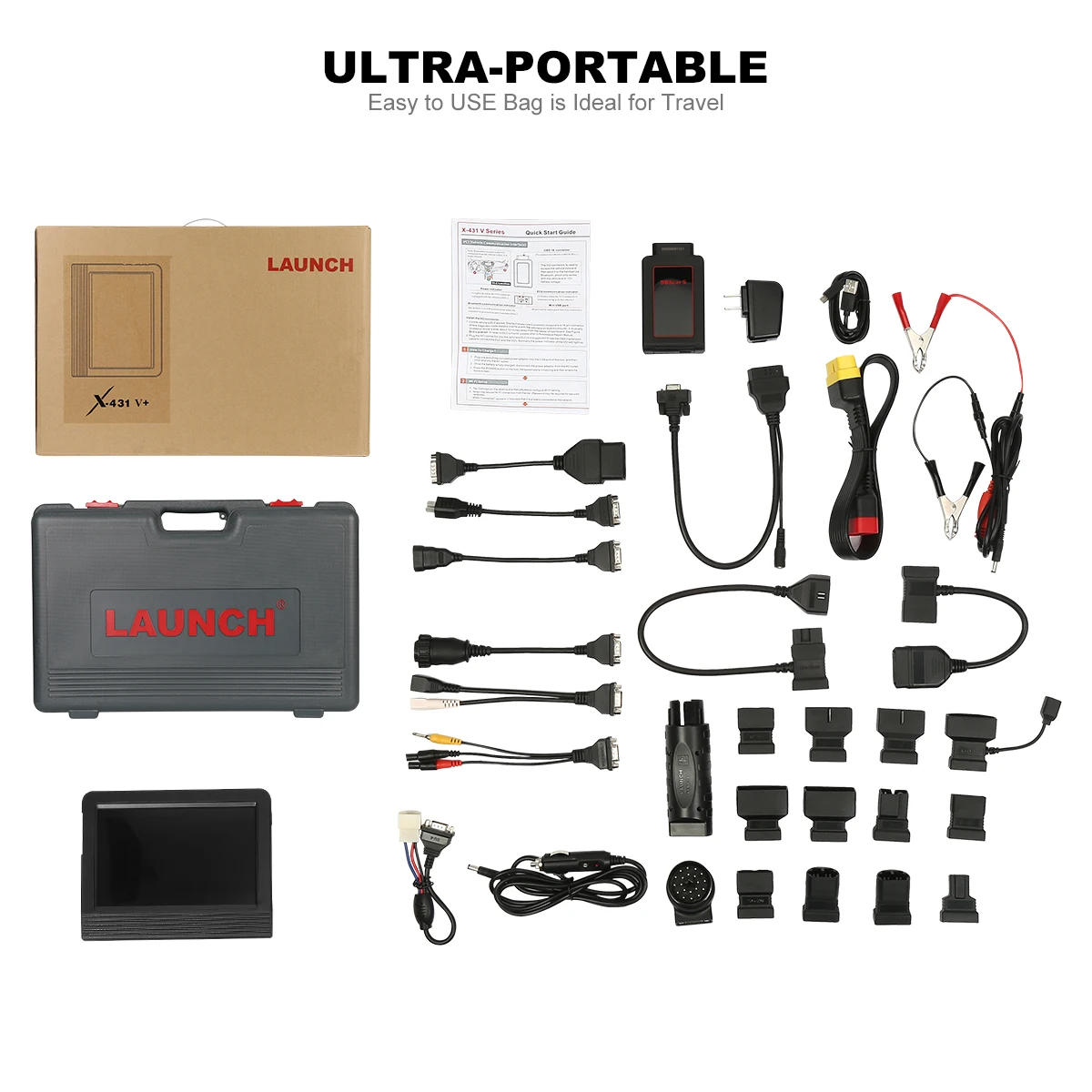

LAUNCH X-431V+ Adaptors of Heavy Duty Module:
