Carbon Di2 Bike Cyclocross Frame standard QR thru axle Disc brake Bicycle Road Frameset 51.5cm 54cm 56.5cm Free Shipping

Factory price： There is no set price, you can ask the supplier to get a product quote

Initial batch size：
123412 ¥310 ~~¥Unset Price~~
Delivery merchant：Shanghai CSC Sports Co., Ltd.

Material：	Carbon	Foldable：	No
Size：	48 - 56cm	Use：	Road Bicycles
Weight：	1200g+/-30g	Place of Origin：	China (Mainland)
Brand Name：	CSC	Model Number：	FM028
Surface：	UD Matte	Front Fork：	12x100mm Thru Axle or 15x100mmThru Axle
Head tube：	42 to 52.1 Tapered	Type：	14212mm Thru Axle and 1359mm Standard QR
Seat Tube：	:ID31.6mm /OD34.9mm	Bottom bracket：	BB68/BB30/PF30
Warranty：	1 Year	Delivery time：	2-5 Work days

Purchase type： Foundry production Manufacturer's own brand
Promotional price：Promotion¥0.0
Offers：

This product is free of shipping

Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

Full999 yuanGet beautiful for freeFreebies，While supplies last。
Net content：5000g
Specifications：

Delivery to：
Please select the receiving city
Please select

Please select

Please select
Purchase quantity：

Inventory0pieces 【Complimentary】

Product Description

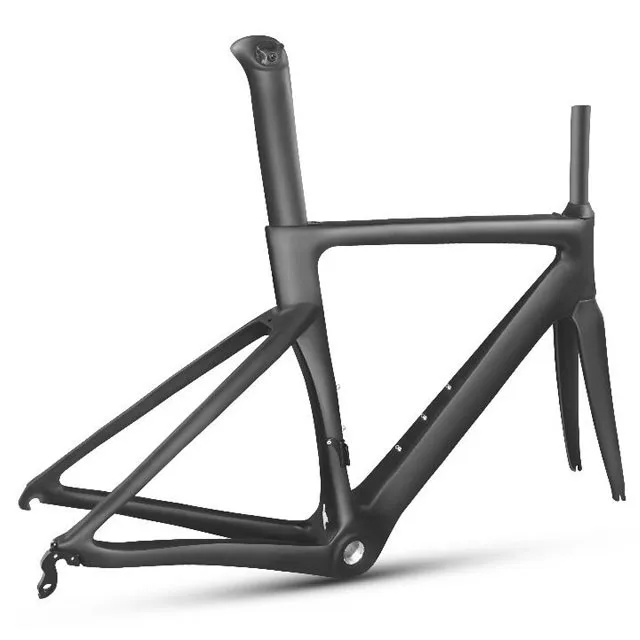

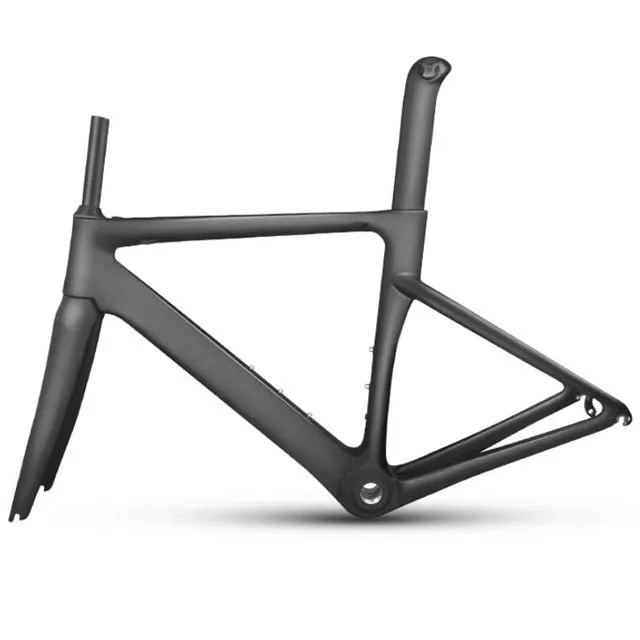

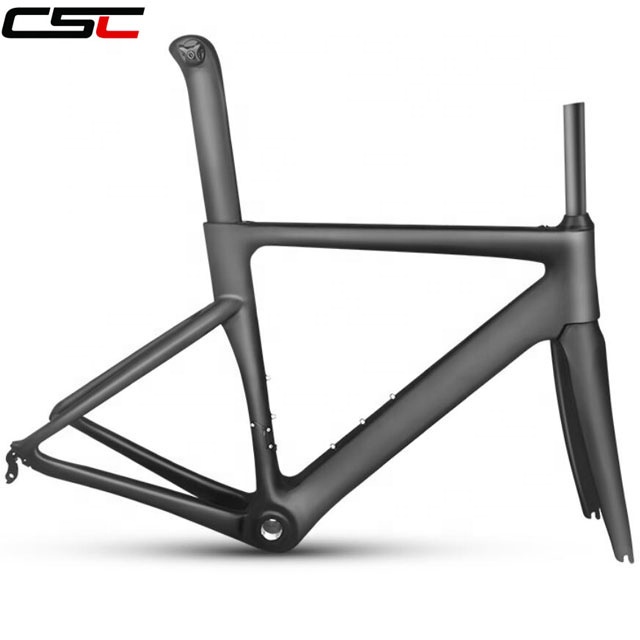

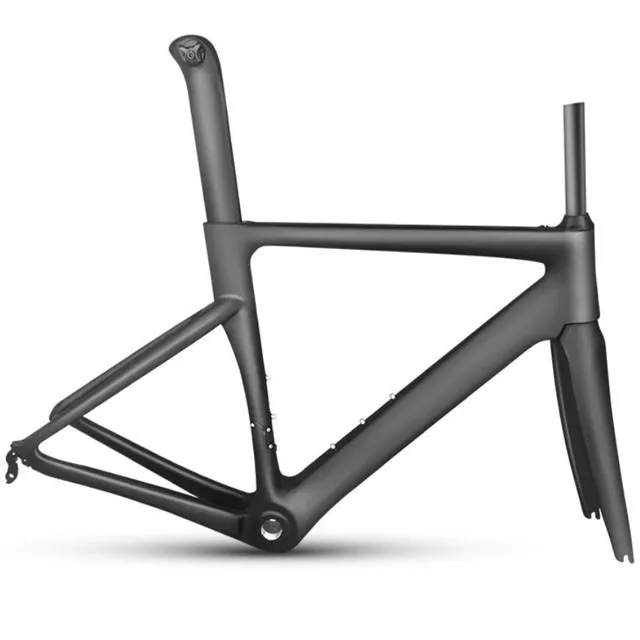

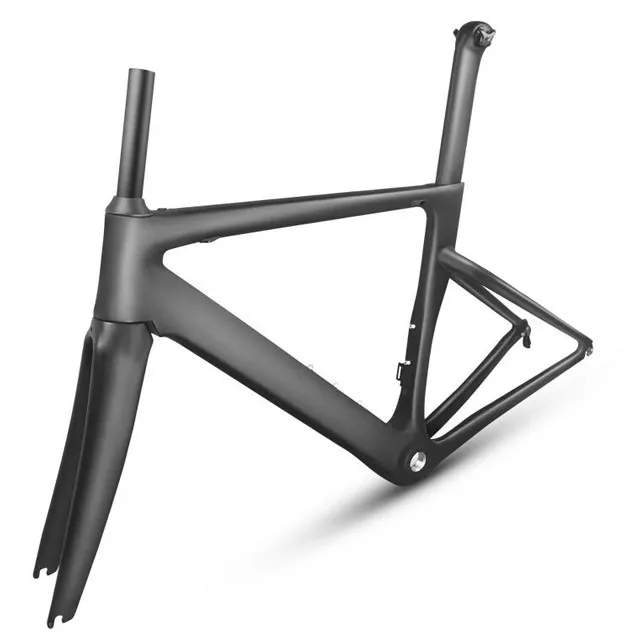

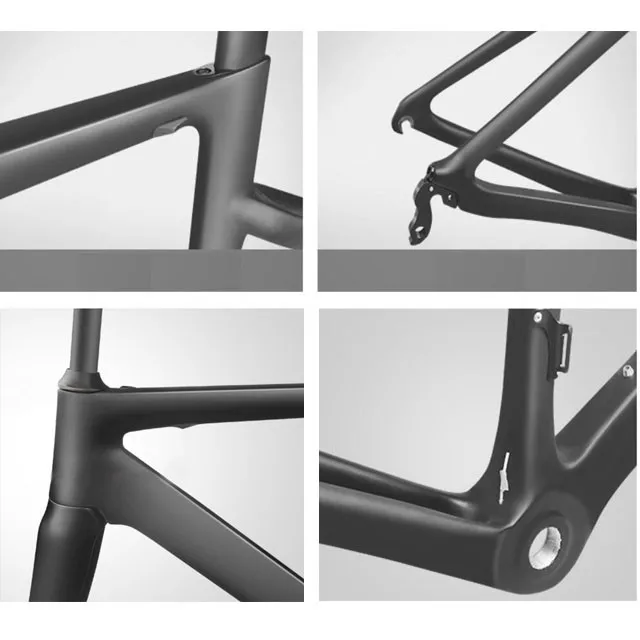

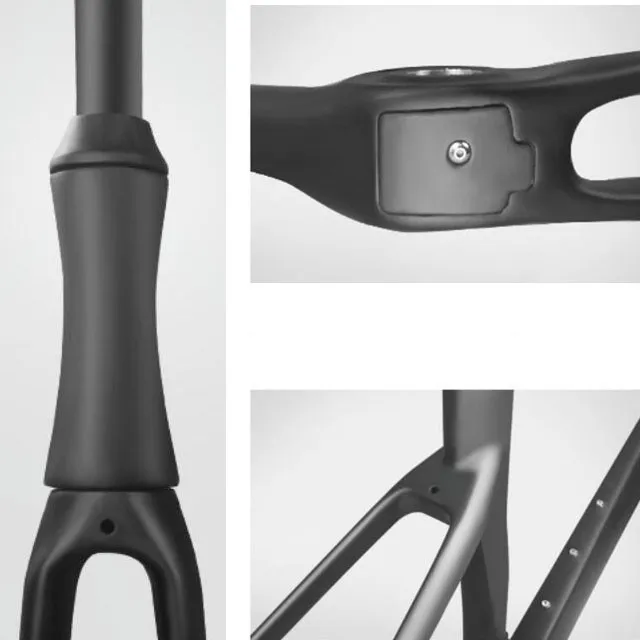

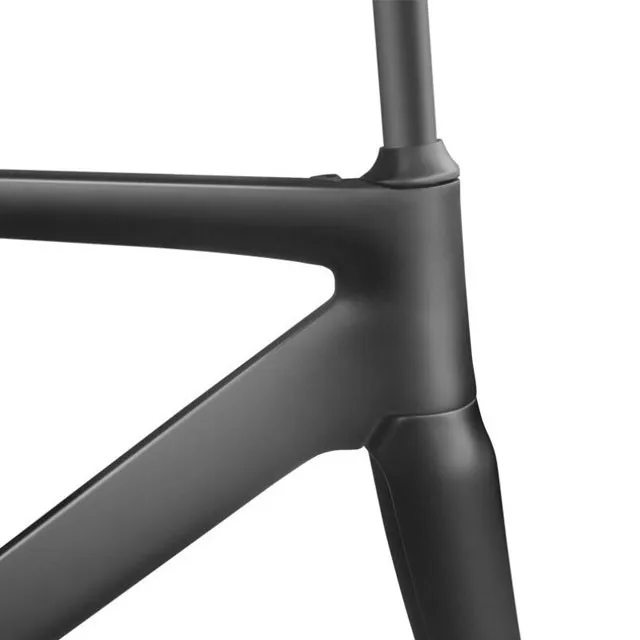

Carbon Bike Frame 12x100mm/ 15x100mm/ 12x142mm thru axle Or QR Disc Brake Di2 Bicycle Road Frameset

Material: T800 Toary full carbon fiber

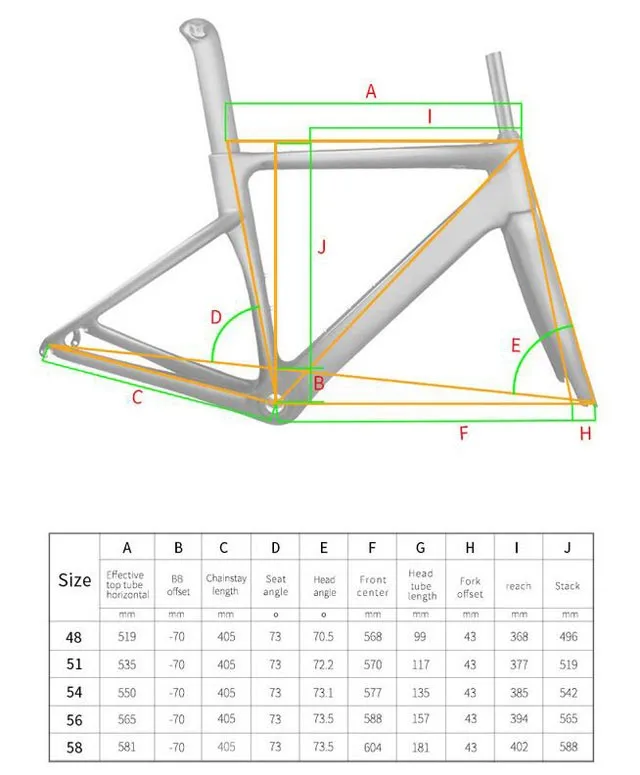

Avaiable Size : 700C 51.5CM,54CM,56.5CM
Finish: UD Matte
Weight: 1150+/-50g for the frame, 480g+/-20g for the Fork
Headset Size: 42 to 52.1 Tapered
Seat Tube: ID31.6mm /OD34.9mm
Suitable Derailleur: Di2 and Mechanical Compatible
Derailleur Cables Routing: Internal
Bottom Bracket: BB86.5
Front Fork: 12x100mm Thru Axle or 15x100mm Thru Axle or Standard QR
Rear Hole Size :142*12mm Thru Axle and 135*9mm Standard QR (it come with two option, you can exchange youself)
Recommend tyre: 700cx35

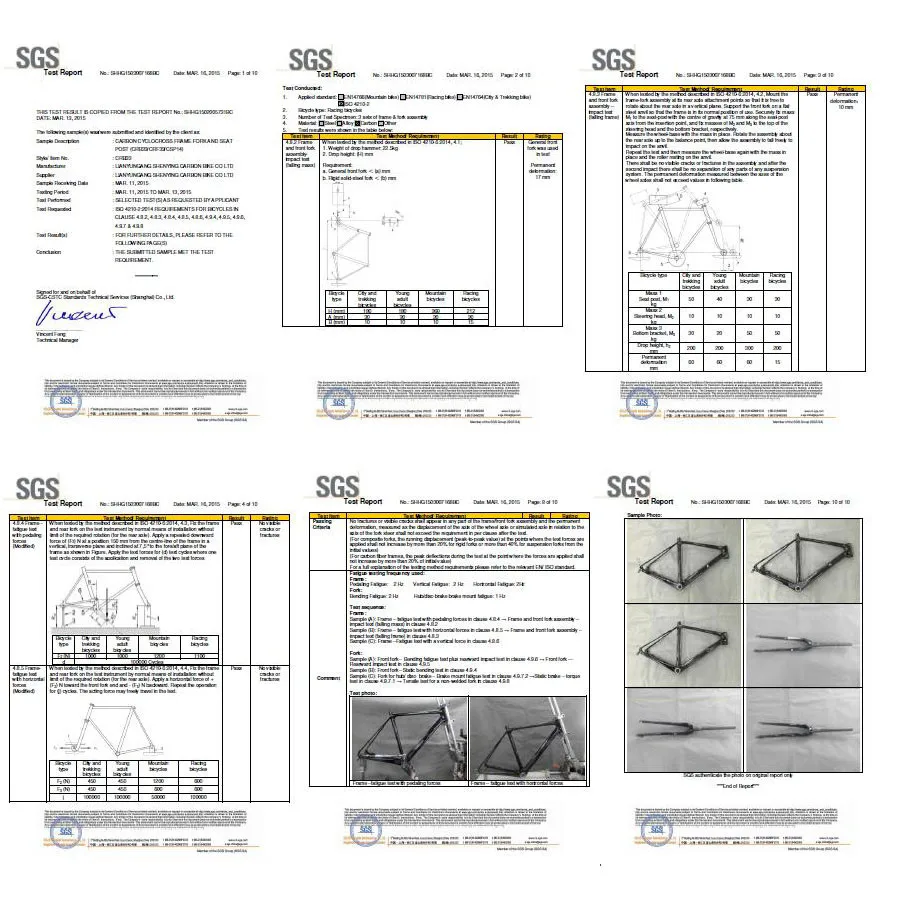

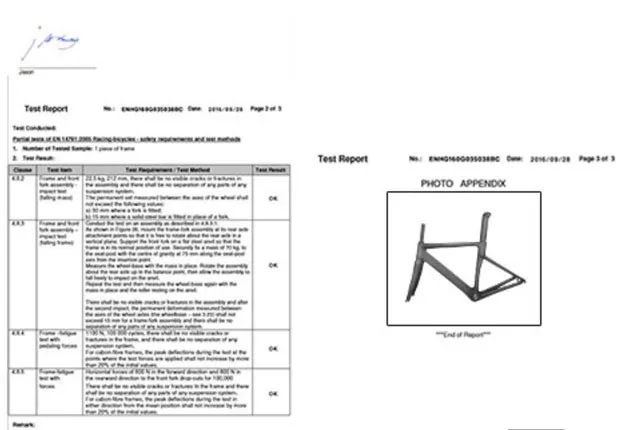

Test:Passed SGS Quality and EN
Warranty: 1 years

Frame and the front fork brake mounting method is post mount
1) We ship by EMS, hongkong post air parcel or China post air parcel. If you need it ship by DHL, FEDEX or UPS,please contact us to pay extra cost.
2) Import duties, taxes and charges are not included in the item price.These charges are the buyer's responsibility.
3) 1 year Warranty: We offer you our high quality and customers-tested products ,We have a quality assurance date which is 1 years. Under normal riding, if there is any damage not caused by human factors, products can be replaced from us.
