profile | PH | PJ |
Pitch | 1.6 | 2.34 |
Teeth height | 1.25 | 1.6 |
r | ≤0.15 | ≤0.2 |
Belt thickness | 2.6 | 3.6 |
Angle | 40° | 40° |

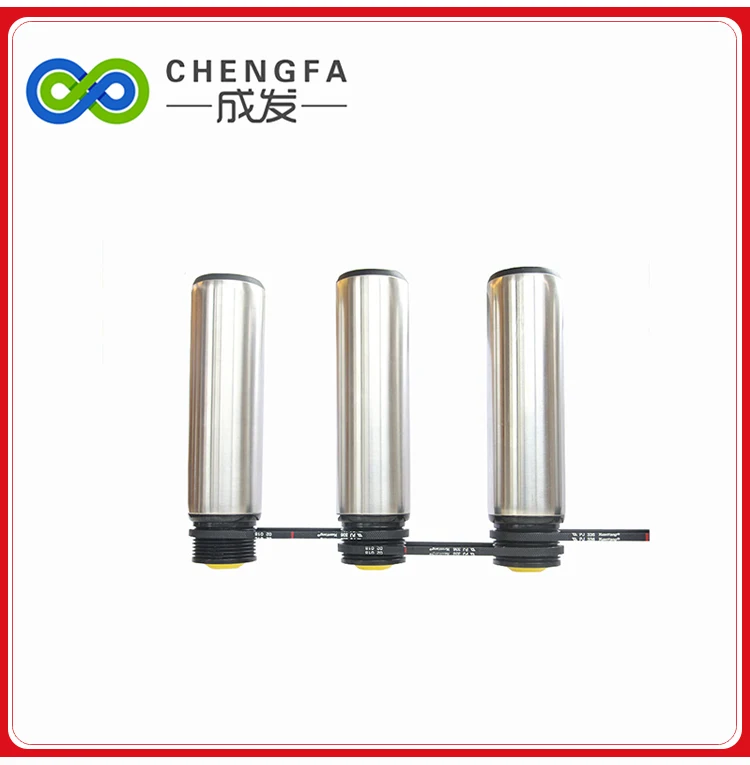

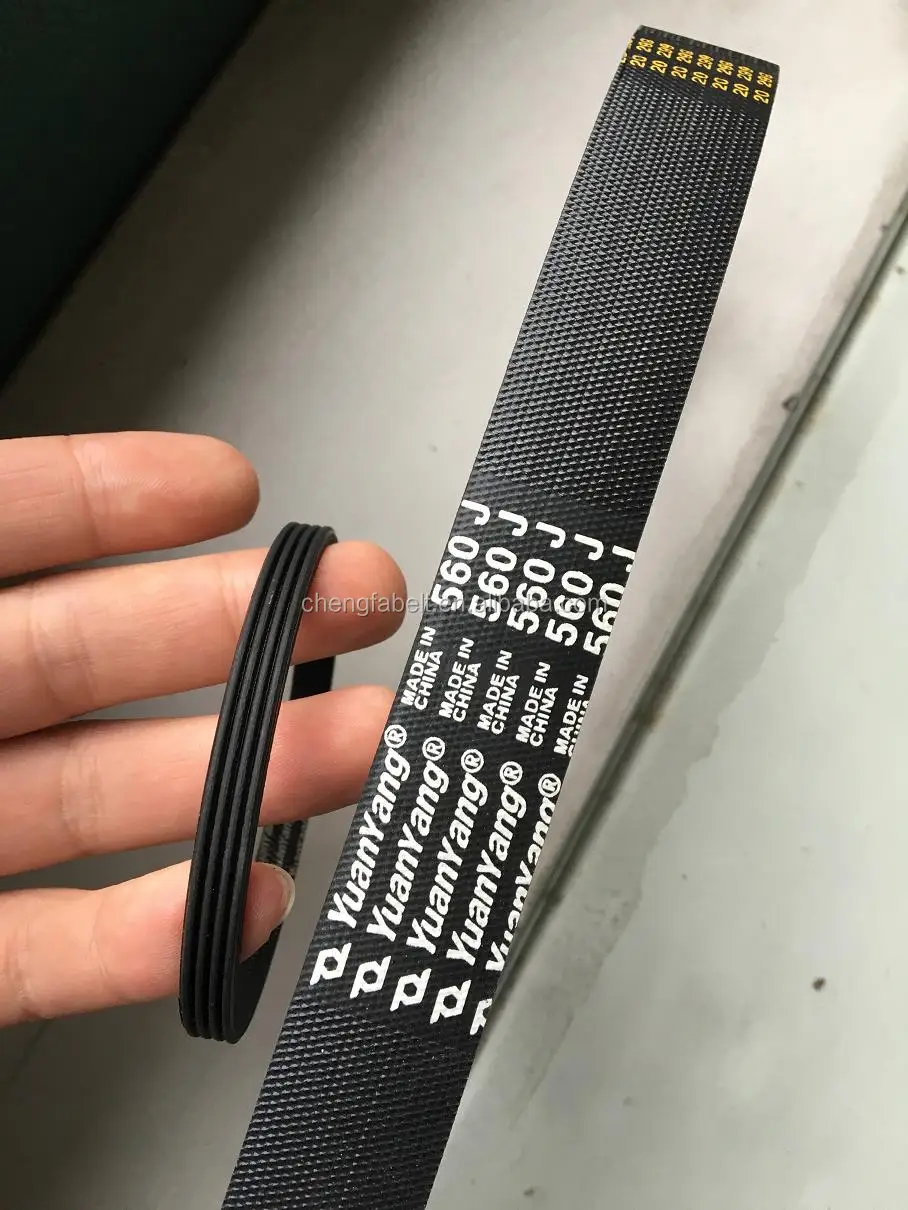

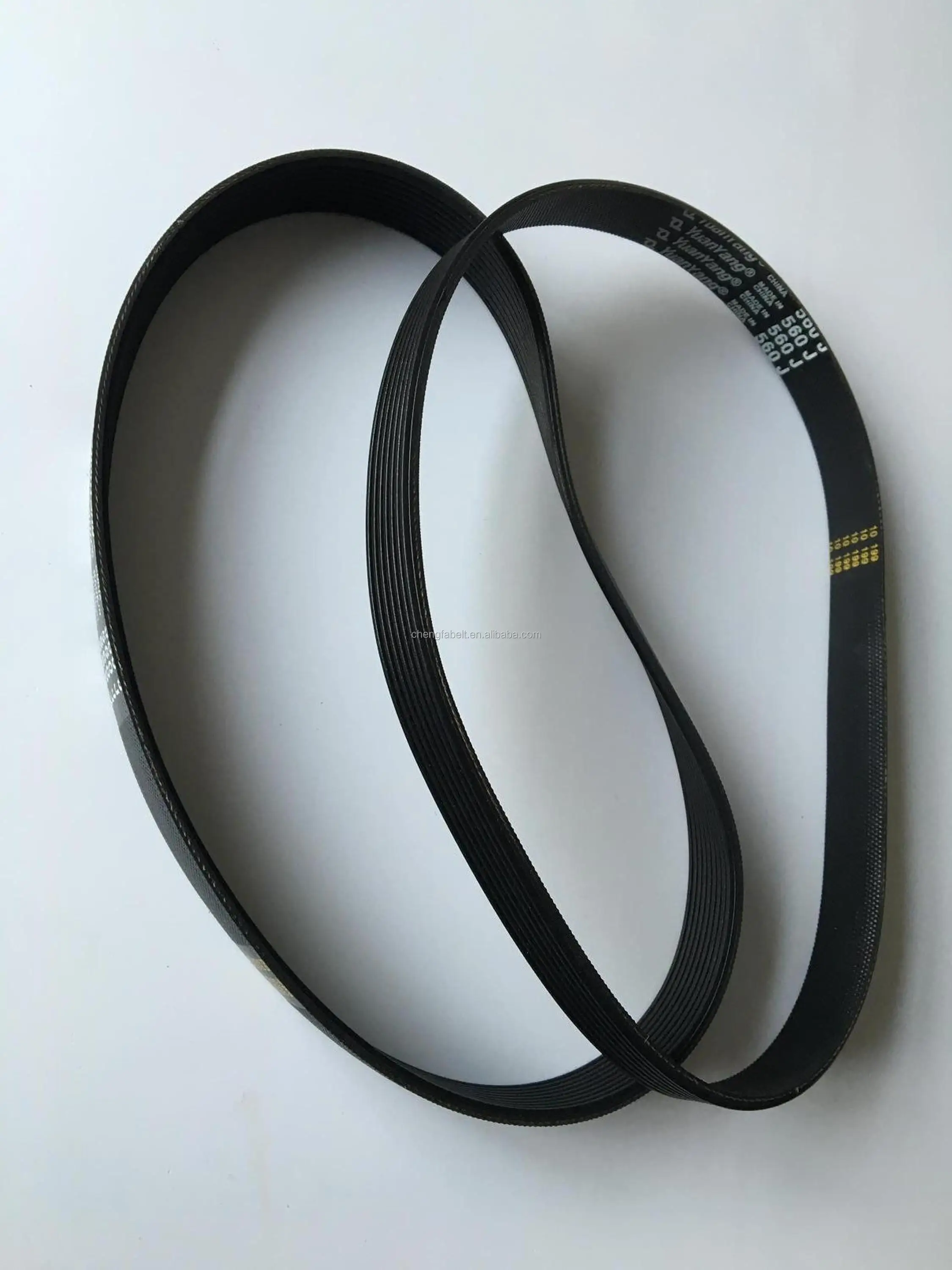

Moulded elastic PJ for roller conveyor transmission for logistic industry (LG, SKII, )
3epj286 special for corner transmission
profile | PH | PJ | PK | PL | PM |
Pitch | 1.6 | 2.34 | 3.56 | 4.7 | 9.4 |
Teeth height | 1.25 | 1.6 | 2.4 | 4.3 | 7.5 |
r | ≤0.15 | ≤0.2 | ≤0.25 | ≤0.4 | ≤0.75 |
Belt thickness | 2.6 | 3.0 | 4.8 | 7 | 12 |
Angle | 40° | 40° | 40° | 40° | 40° |
1. Q: What is your main customer?
A: Damon, Qinde, Hong'an, etc.
2. Q: What is the max. weight of each box can be transmitted?
A: Different weight use different width of belt. Usually 2PJ for less than 50 kgs, 3PJ for box less than 80kgs, 4PJ for box less than 120kgs.
3. Q: What is the delivery?
A: We usually have small quantity of stock. Some special items or Non-standard items no ready stock.
For quantity of 5000 pcs each item, we can ship out within 10 -15 days after receive payment.
4. Q: What is the payment term?
A: For small amount less than USD10000.00, we require 100% before shipment. For order amount more than USD 10000.00, and need more than 15 days for production, payment will be 30% deposit, balance before shipment.
5. Q: What is the guarantee ?
A: We guarantee for one year with correct installation.
6. Q: Which size of belt do you have?

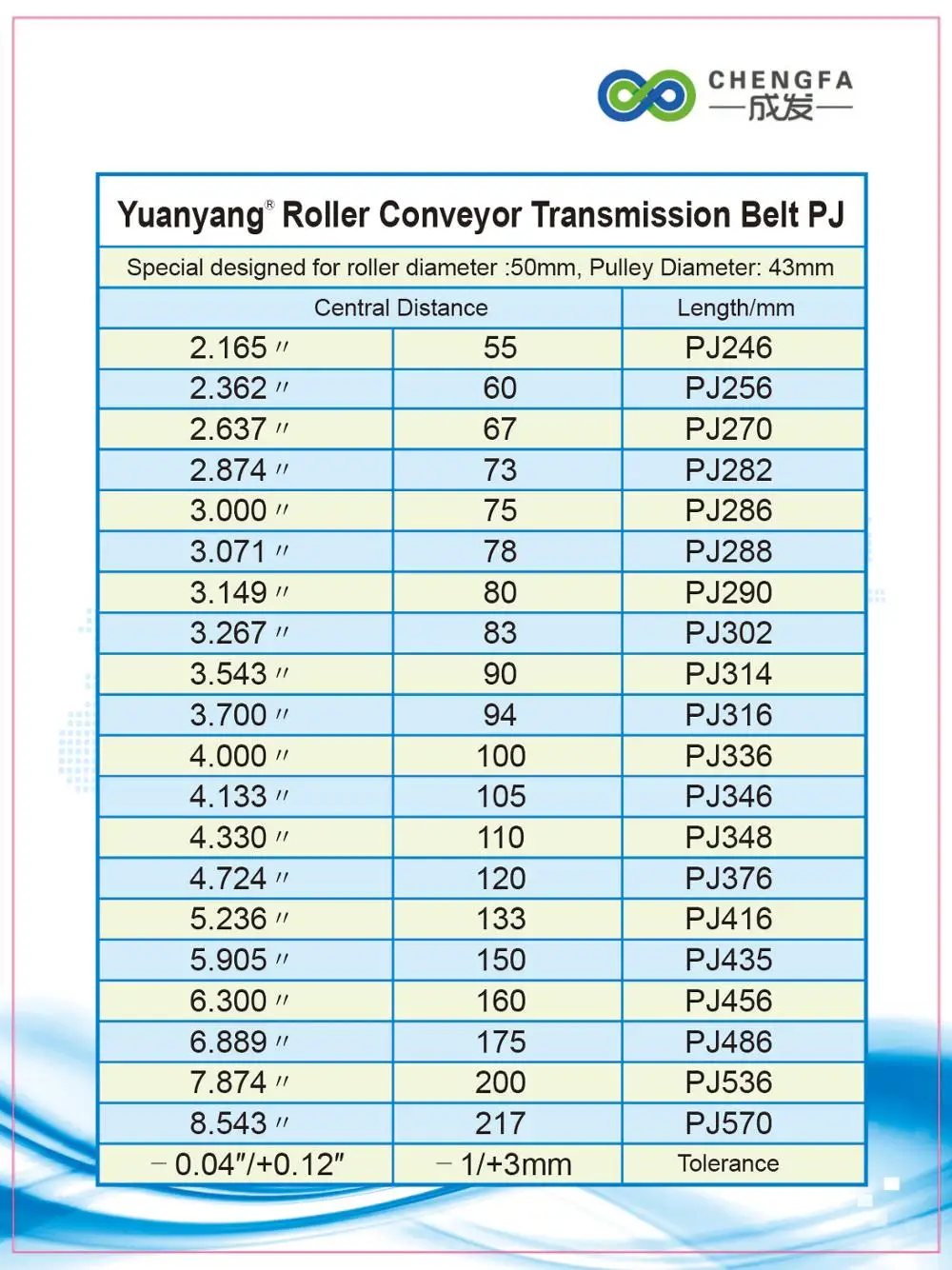

A: We have complete range of elastic PJ belt for roller conveyor.
We can also make belt according to your design , you just need to tell us the central distance and the roller diameter and pulley diameter, box weight .
