| Yuanyang Roller Conveyor Transmission Belt PJ | ||
| Special designed for roller diameter :50mm, Pulley Diameter: 43mm | ||
| PJ type | ||
| Central Distance | ||
| 2.165 inch | 55 | PJ246 |
| 2.362 inch | 60 | PJ256 |
| 2.637 inch | 67 | PJ270 |
| 2.874 inch | 73 | PJ282 |

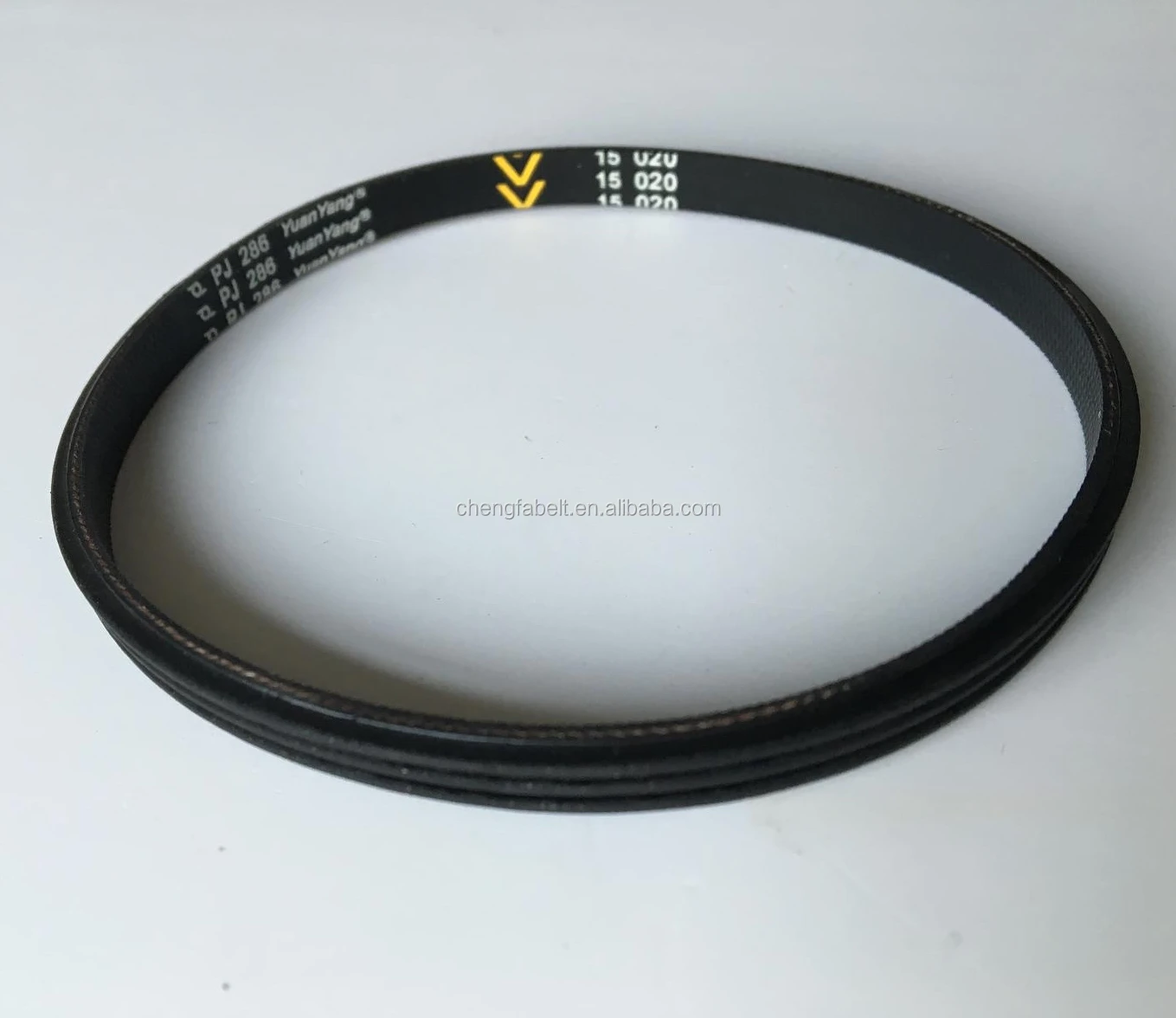

| 3.000 inch | 75 | PJ286 |
| 3.071 inch | 78 | PJ288 |

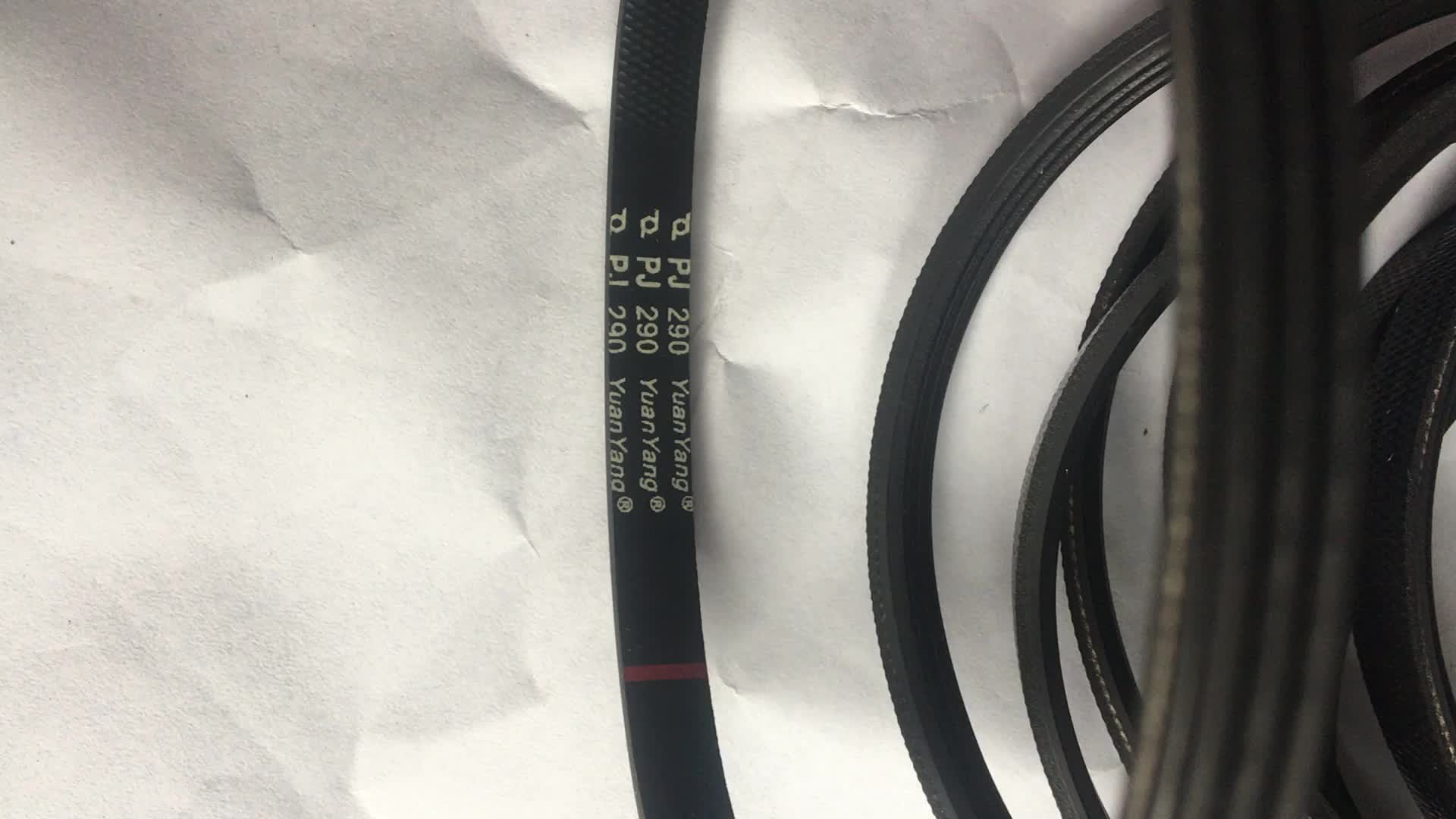

| 3.149 inch | 80 | PJ290 |
| 3.267 inch | 83 | PJ302 |
| 3.543 inch | 90 | PJ314 |
| 3.700 inch | 94 | PJ316 |
| 4.000 inch | 100 | PJ336 |
| 4.133 inch | 105 | PJ346 |
| 4.330 inch | 110 | PJ348 |
| 4.724 inch | 120 | PJ376 |
| 5.236 inch | 133 | PJ416 |

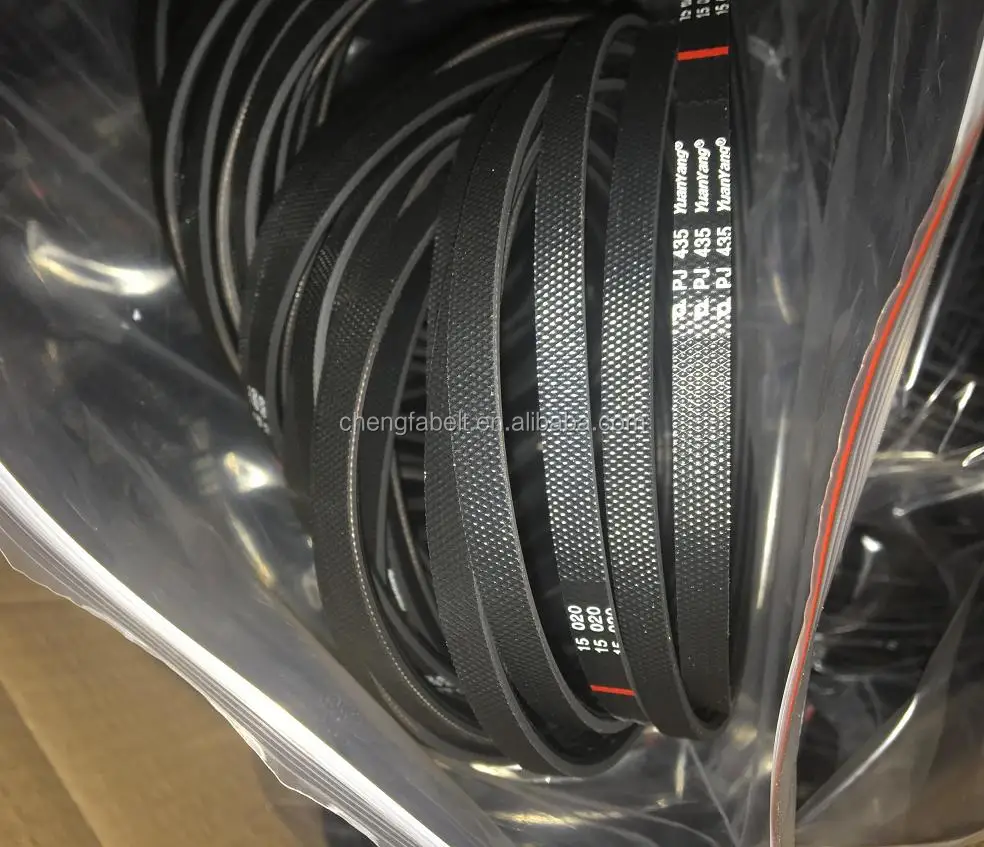

| 5.905 inch | 150 | PJ435 |
| 6.300 inch | 160 | PJ456 |
| 6.889 inch | 175 | PJ486 |
| 7.874 inch | 200 | PJ536 |
| 8.543 inch | 217 | PJ570 |
| -0.04/+0.12 | -1/+3 mm | tolerance |
profile | PH | PJ | PK |
Pitch | 1.6 | 2.34 | 3.56 |
Teeth height | 1.25 | 1.6 | 2.4 |
r | ≤0.15 | ≤0.2 | ≤0.25 |
Belt thickness | 2.6 | 3.0 | 4.8 |
Angle | 40° | 40° | 40° |
Elastic poly v belt special for logistic roller conveyor transmission.
High wear resistance, strong tension
Pitch of PJ is 2.34mm+-0.1mm, thickness of PJ is 3.0mm +-0.2mm

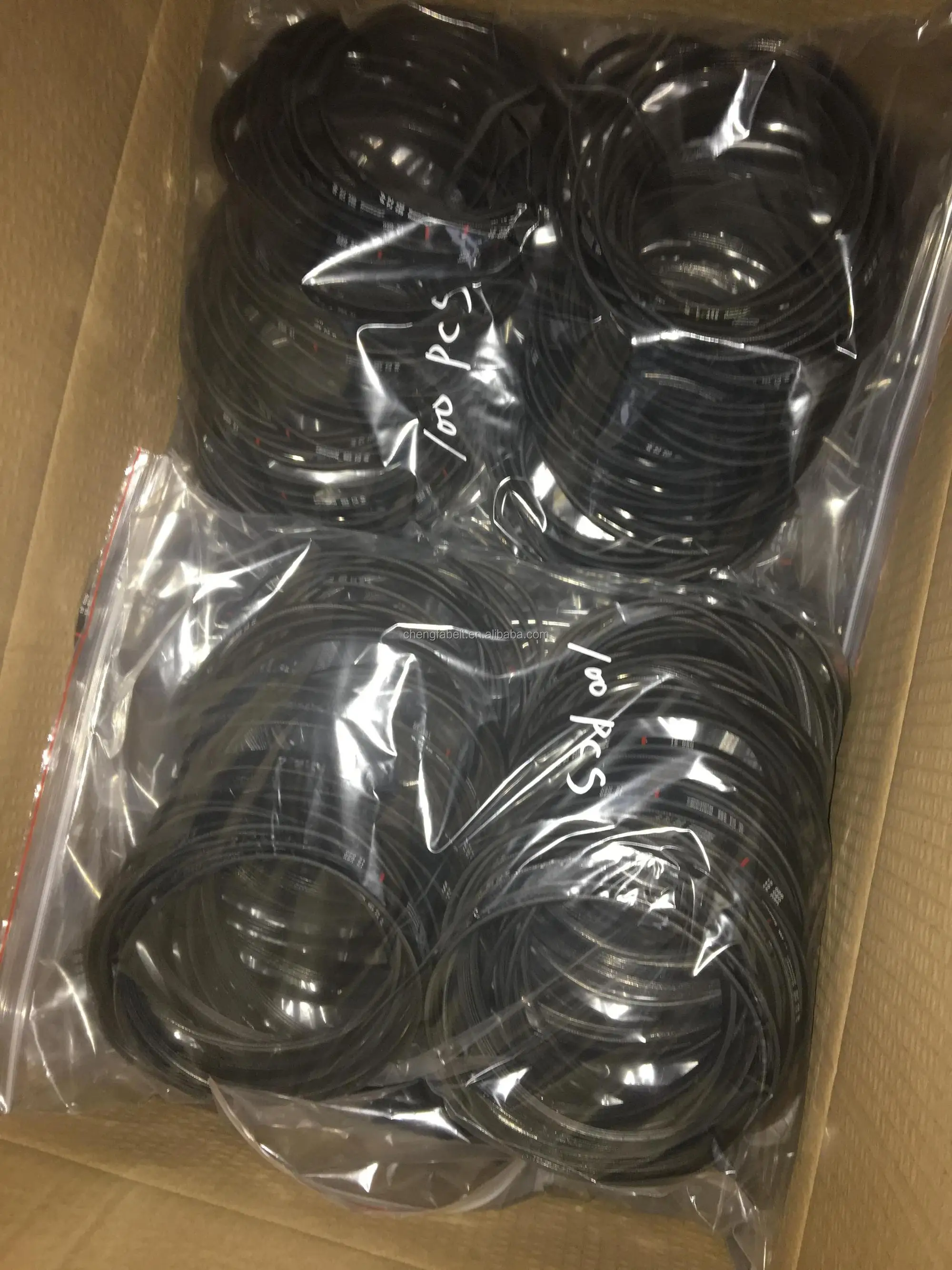

100 pcs packed in one transparent poly bag, 1000 pcs - 1500 pcs packed in one carton box, up the different belt size ,
weight of each box is about 10-15 kgs,
box size : 58x38x32cm
Ready stock of common size, new belt producttion lead time about 10-20 days for 20000 pcs.
Guarantee: one year
Payment term:
50% deposit if no stock or special size, balance before shipment,
100% before shipment for stock belts
Shipment: Sea, air, express
