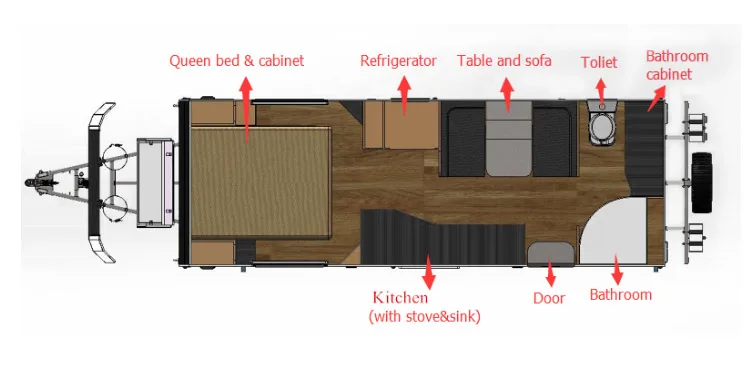

| C3-A Floor Plan |
| EXTERNAL STANDARD |
| INTERIOR STANDARD |

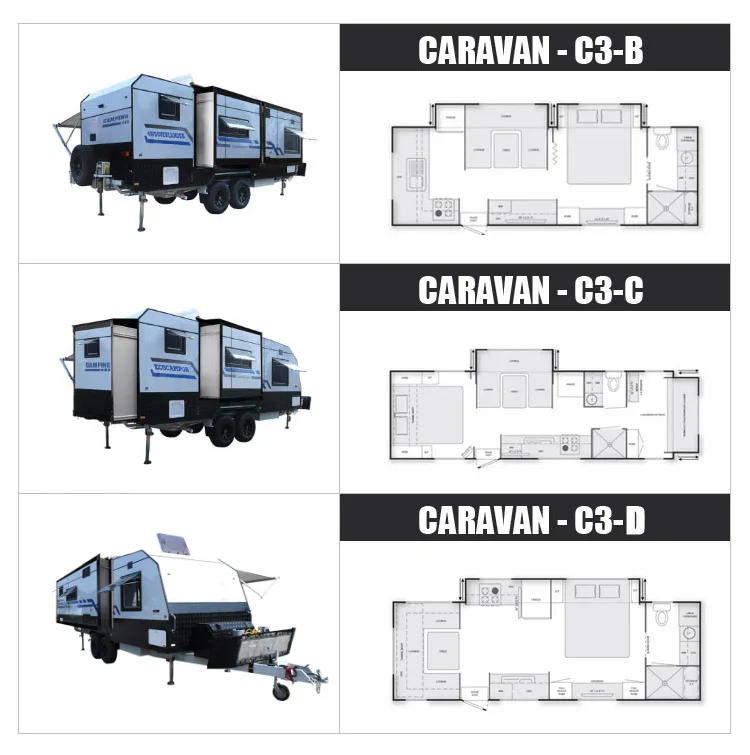

| Similar Products |
| Basic Specification | |
| Dimensions | 9030(L) x 2268(W) x 3120 (H) mm |
| Tent Size | 5500 L *2500 W mm |
| Tare Mass | 2580 KG |
| Body Material | Sandwich Composite Sheet |
| Tire | 265 / 75 R 16 C |
| Height of chassis from ground | 522 mm |
| Capacity | 2 - 4 Person |
| Configuration( + Standard - Optional) | ||||
| Inside | + | Queen size beds | + | Wear-resisting floor |
| + | Artificial leather sofa | + | Storage cabinet | |
| + | Triple fold table | + | Multifunctional kitchen cabinet | |
| + | Silver mirror bathroom | + | 1KG extinguisher | |
| Outside | + | Picnic table with light | + | 700*500 Skyline *2 |
| + | Lifting Jack*4 | + | Alloy Step | |
| + | Jockey Wheel | + | Gradienter | |
| + | Fuel tank holder*2 | + | Front chequcker plate toolbox | |
| Water System | + | Fresh water tank 95L*2 | + | Water inlet |
| + | Grey water tank 180L | + | One pieces bathroom | |
| + | Water heater 14L | + | Fit tape | |
| + | Water Pump 12V,4.3L/min | - | External Shower | |
| + | Black water filler cap | - | Front Tap On a Frame | |
| Electric System | + | Fridge THETFORD 184L | + | 50A Anderson plug |
| + | FM radio antenna | + | Reflector | |
| + | 23L Mircowave | + | Battert 12V120AH*3 | |
| + | Rangehood | + | Solar Panel Control System | |
| + | 24inches LCD TV | + | Solar panel 12V,100W*2 | |
| + | MP5 Player | + | Electricity meter | |
| + | JBL Steros*4 | + | Water Gauge indicator | |
| + | External Speaker*2 | + | Battery charger | |
| + | TV Antenna | + | Circuit interrupter | |
| + | 2.8Kg washing machine | + | LED Lights | |
| + | Electric THETFORD Toilet | + | FM Radio Antenna | |
| + | Dometic Air Conditioner | - | Smoke Alarms | |
| + | Bathroom Ventilator*2 | - | CO Alarms | |
| + | THETFORD 3Gas Stoves, 1 Electric Stove,Oven and grill | |||
| + | Number plate lambs*2, side lambs*6 front lambs*2, | |||
| + | Turning Lights,Reversing lights,brake lights, position lights | |||
| + | External electric outlet:220V socket*1, Usb port*2 + cigarette lighter*1 | |||
| + | Power outlet: 110-240V socket*6, usb socket*6 +cigarette lighterx *3 | |||
| Welcome To Contact Us |
| Caravans and Motorhomes Factory Tour |
We have specialized in sheet metal processing with 36 years experience since 1982, and we made many kinds of products for our customers from America,Europe,and Australia.The factory is located in Foshan City. Having a total area of 10000 square meters and 200 staff members.
80% our products are exported to different countries, such as USA, Australia, Britain, France, Germany, Italy, Swiss, Switzerland, Poland, Spain, Belgium, etc.
| Packaging and Transportation |
Disassembly or assembly packing is optional .Packed with foam.
How about Deliver Time?
Conventional style Camper Trailer is 45 - 90 days after received the deposit.
Customized style Camper Trailer is 60- 120 days after received the deposit. ( These are approx. guides only and will vary depending on customize options and technical difficulty.)
