| 4WDOVERLANDER - EC-RF-01 Camper Trailer |

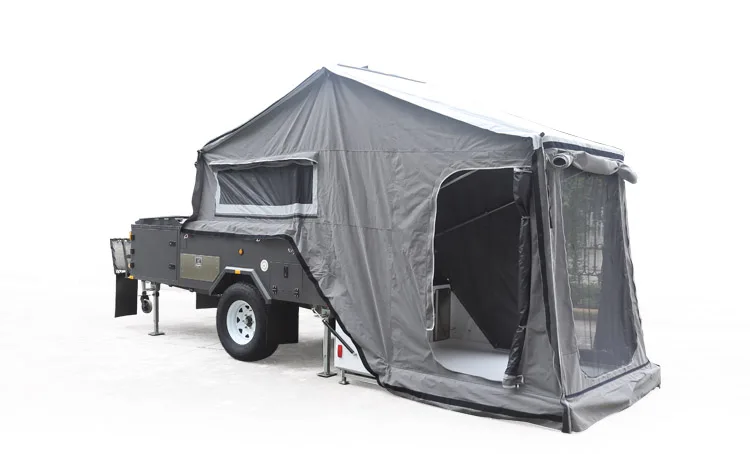

Trailer construction is rock-solid, with skeletal construction and body parts offering an excellent combination of body strength and flexibility. A canvas awning can be unfolded to cover your camping base, with plenty of mesh screens to let the air in while keeping bugs out.One full set is including one fold out beds,tent,big drawer ,large front tool box, Slide out stainless steel kitchen,45 or 90L stainless steel under body water tank.
| Super Fast Setup |
This Camper Trailer (EC-RF-01) is lightweight, tows effortlessly, is extremely easy to park and features a unique folding queen bed area that folds out in less than 1 minute.

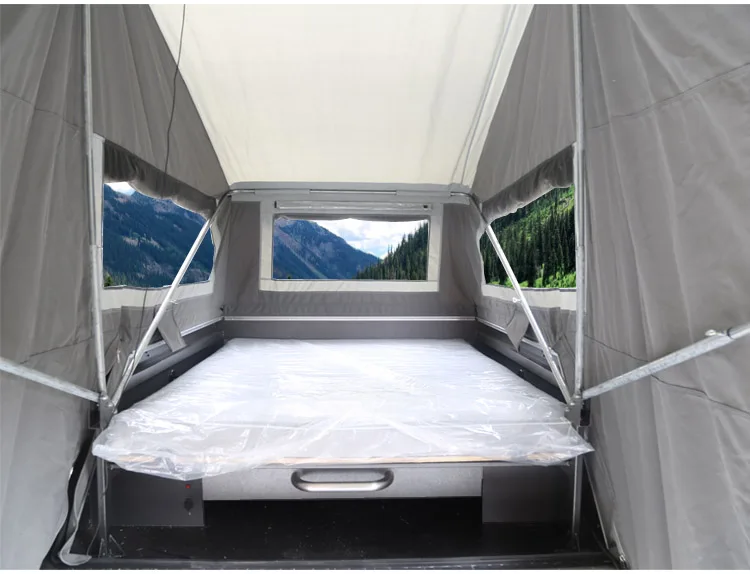

| Unique Folding Queen Bed Area |
This Camping Trailer (EC-RF-01) have a broad space and queen-size innerspring bed only 1M off the floor for easy access.
| External STANDARD FEATURES |

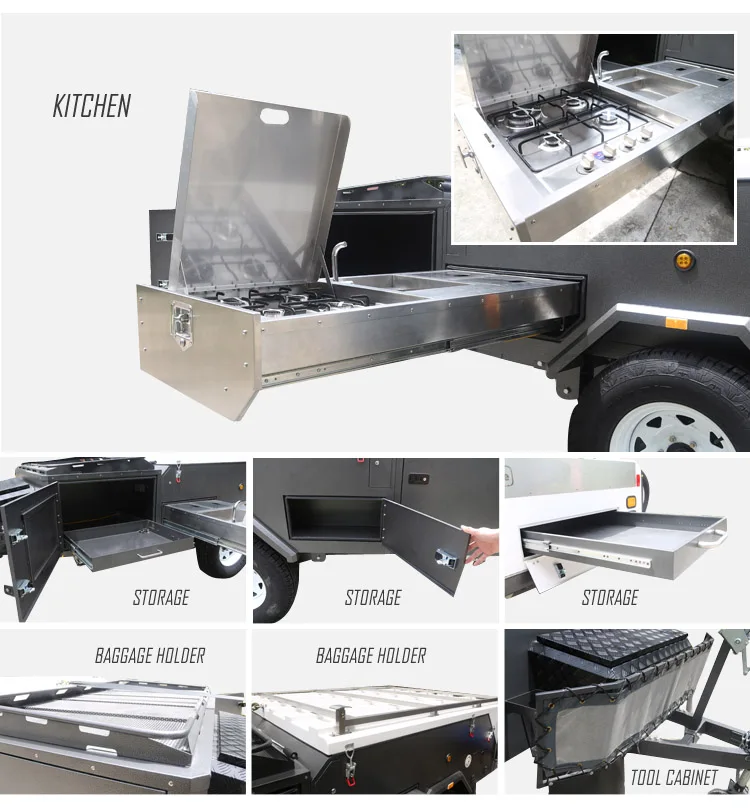

The best external kitchen on the market.The Camper Trailer (EC-RF-01) have plenty of storage space so that you can carry more camping items
BASIC SPECIFICATION | |

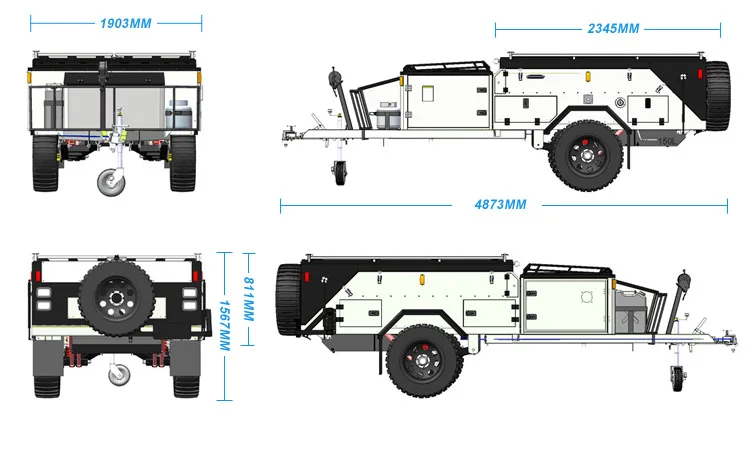

Dimensions | 4873*1903*1567mm |
Size of main trailer body | 2345*1903*811mm |
Net Weight | 1450KG |
ATM | 2000KG |
GTW | 1860KG |
Surface | powder coating as custom colors |
Storgae space | large storage space of 1230L |
CHASSIS PART | |
Chassis | square tube of 75*50*3.0, 175*50*3.0 |
Suspension | off road independent suspension with four shock absorbers |
Draw bar | square tube of 100*50*3.0 |
Coupling | load bearing 2000KG, 360 degree off road coupling,galvanized surface |
Winch | load bearing of 1200BL, self-lock model, galvanized |
Safety chain | 304 stainless steel |
Axels | 45mm solid square |
Jockey Wheel | 10" swing-up, heavy duty solid jockey wheel |
Brake | American standard electric brake with hand brake (Available to modify to other standards) |
TRAILER BODY | |
Storage box | front storage box for gas bottles, large middle storage box |
Flap | SS304 & Aluminum |
Kitchen | slide out kitchen full stainless steel 304 |
Wheels | off-road tires *3, Mag-wheels*3, Fender*2 |
Stabilizer leg | 4 legs with adjustable height |
Jockey wheel | load bearing 2000KG, swing up and foldable model,height can be adjusted from 580 to 830mm, galvanized surface |
Step/stair | aluminum checker plate |
Water tank | 100L, can upgrade to 120L or 150L |
Cover tyre | 16 inch |
Tent | including main tent, annex and galvanized steel poles, shower room is available, can update to stainless steel poles |
Jerry Can | 304 stainless steel |
Signal connectors | 13 holes or 7 holes |
Consign frame | for disassembled trailer delivery |
Tail light | LED,Turning light, brake light and reversing light |
Brackets and Holders | Brackets for gas bottle, Jerry Can, holder for spare tyre |
| Floor Plan |
We have specialized in sheet metal processing with 33 years experience since 1983, and we made many kinds of products for our customers from America,Europe,and Australia.
80% our products are exported to different countries, such as USA, Australia, Britain, France, Germany, Italy, Swiss, Switzerland, Poland, Spain, Belgium, etc.
 | Quality Control |
| Each Trailer before delivery to the customer will have to pass our quality inspection to ensure the quality. | |
| Packaging | |
1.Industrial packaging;plastic bag + kraft paper+ carton +plywoodpallets; wrap bags+ carton+plywood pallets; 2.Commerical Packaging;1pc / plastic bag +carton +plywood pallets 3.As the clients | |
CARAVAN AND CAMPER TRAILER REPAIRS AND SERVICE
4wdoverlander Camper Trailers have a dedicated factory in china for the repair and service of your 4wdoverlander caravans and camper trailers. Our qualified tradesman are the best in the business, providing reliable, quality and professional workmanship. No job is too big or small so please contact us and tell us what you need!
We offer a range of services to improve or fix your 4wdoverlander caravan or camper trailer including;
General caravan and camper trailer servicing
Caravan repairs and camper trailer repairs
Insurance work for damaged caravans and camper trailers
Suspension upgrades and suspension modifications
Fit and installation of accessories for caravan and camper trailers
Custom modifications
Custom accessories
1.You are metal factory? or trading company?

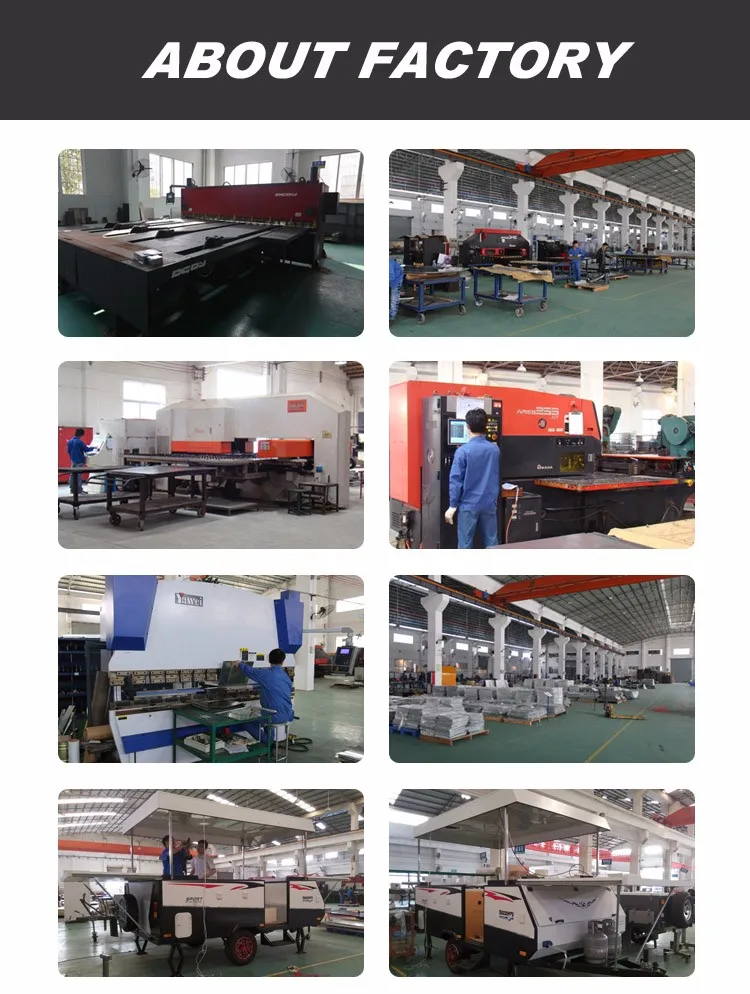

We are professional manufacturer of sheet metal fabrication, mainly handle almost anything from Mild Steel, Stainless Steel and Aluminum such as electrical cabinet, network cabinet,tool cabinet, display rack,equipment enclosure,bus stop...The process includes laser cutting, bending ,welding,powder coating and assembling..
2.Your factory is a huge one?
There are 350000 square meter workshop here, and the workshops are delicate and standard. There are about 300 people working for you in our factory.
Stable and strong supply can gurantee your normal and urgent orders.
Our factory can produce 5000000 pcs of metal products per month.
3.Where are you?
Nanhai, Foshan city, Guangdong province, China.
4.What are your edges?
We are reliable and have done this business for more than 33 years.
Many new old customers choose us because of our good services, timely and quick delivery, good quality, competitive price and credibility.
5.What services can I get from you?
We are always here for your needs.
You can get catalogue, pictures, vedios about us;
You can get quote from us anytime you need;
Customizing services, OEM services, etc.
