Engineered for Australia's harsh outback,coupled with modular versatility and luxurious ammenities.

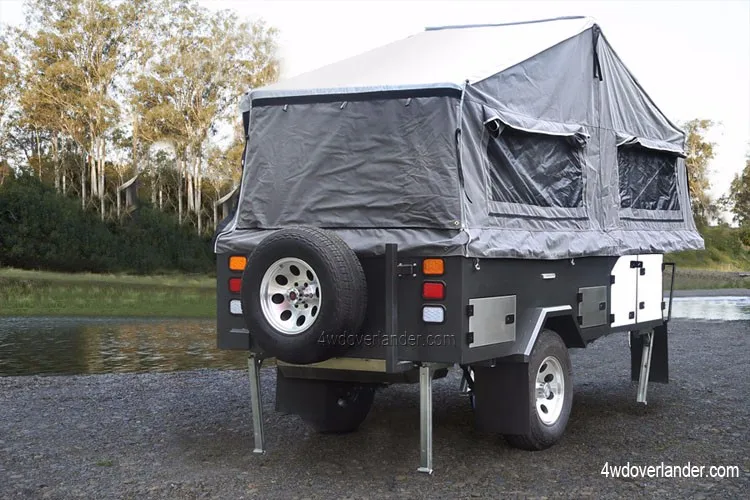

The Hard Floor forward fold camper trailer is one of the most innovative and modern hard-floor camper trailer in the market. EC-FF-01 forward fold camper trailer was in development for 9 months with a team of mechanical engineers and research and development staff from within the company.We looked at the Hard floor camper trailer concept with a fresh approach and designed it to have every option included from the day of concept, rather than adding options after the design was completed. It consists of over 250 laser cut parts, made up from mild steel, galvanised metal, aluminium sheet metal, zinc anneal sheet metal, stainless steel and composite materials from Australia and Germany.
|
| EXTERNAL |
| INTERNAL |
| KITCHEN |
| ACCESSORIES |
| FLOOR PLAN |
| Body And Chassis | |
| Dimensions | 4931x1900x1535 mm |
| Size of main trailer body | 2305x1900x733 mm |
| Aluminium ,stainless steel and galvanised body panels | |
| Heavy duty structural hot dipped galanised chassis and drawbar construction | |
| Independent suspension with double shock absorber | |
| 10 inch electric brakes | |
| 2000kg off road tow hitch with hand-brake | |
| 265 / 75 /16 all terrain types | |

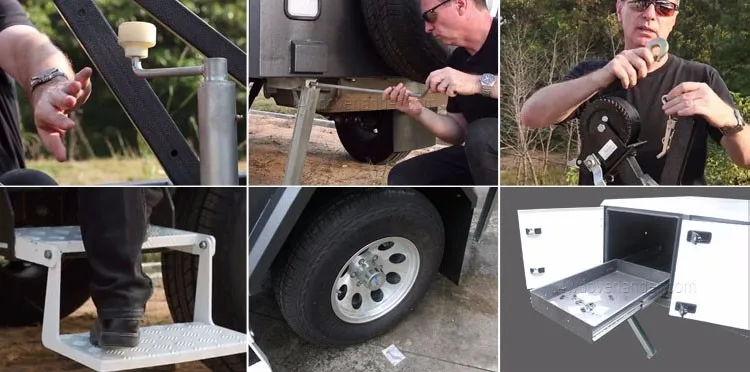

| 4 Heavy duty wind down stabillser legs and heavy duty jockey wheel | |
| trailer box with aluminium checkered plate | |
| 100 litre food-grade stainless steel water tank | |

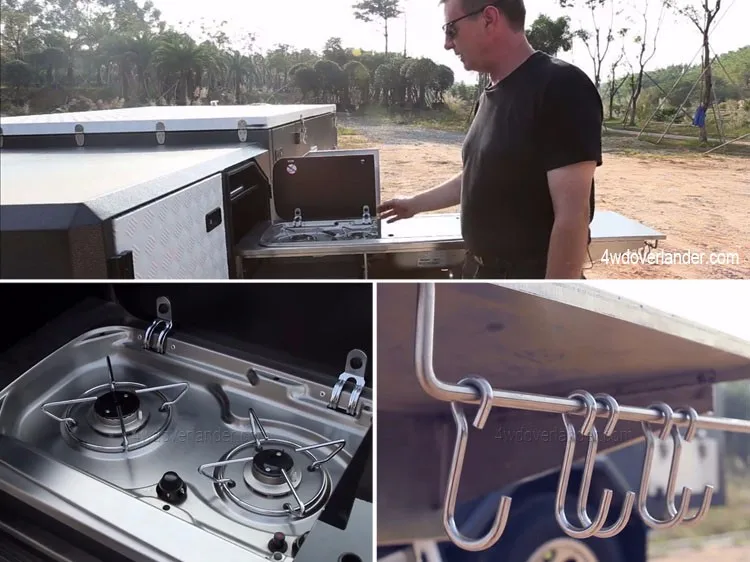

| External Kitchen | |
| Slide out refrigerator drawer |
| External Lockable Storage Compartments | |
| Front mounted stone deflection with 2 x 20 litre jerry can holders | |
| 2×4 kg gas bottles holders |
| Electrical System | |
| Tail light | LED , Turning light,brake light and reversing light,License plate light |
| Interior Cabin | |

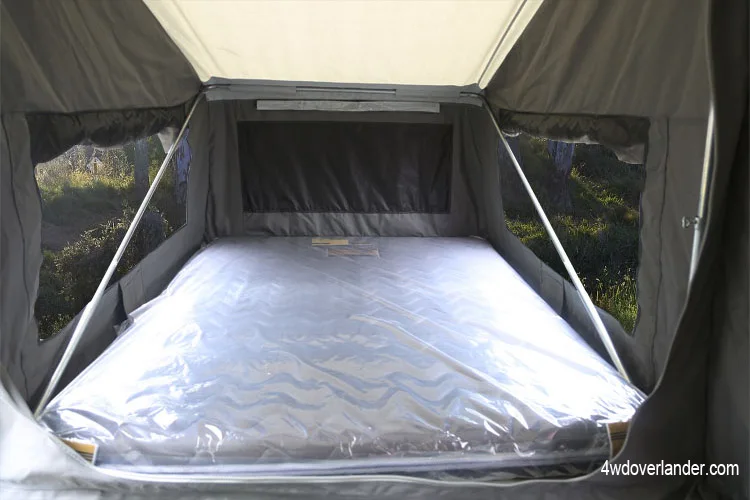

| Queen size mattress | |
| Dual USB socket |
| Annexe / Canvas | |
| Mesh Floor | |
| Pegs & Ropes | |
| Main Tent | |
| Annexe LED Strip light |
We have specialized in sheet metal processing with 35 years experience since 1982, and we made many kinds of products for our customers from America,Europe,and Australia.
80% our products are exported to different countries, such as USA, Australia, Britain, France, Germany, Italy, Swiss, Switzerland, Poland, Spain, Belgium, etc.
| PACKAGING AND QC |
 | Quality Control |
| Each Trailer before delivery to the customer will have to pass our quality inspection to ensure the quality. | |
| Packaging | |
1.Industrial packaging;plastic bag + kraft paper+ carton +plywoodpallets; wrap bags+ carton+plywood pallets; 2.Commerical Packaging;1pc / plastic bag +carton +plywood pallets 3.As the clients | |
