BASIC SPECIFICATION | |

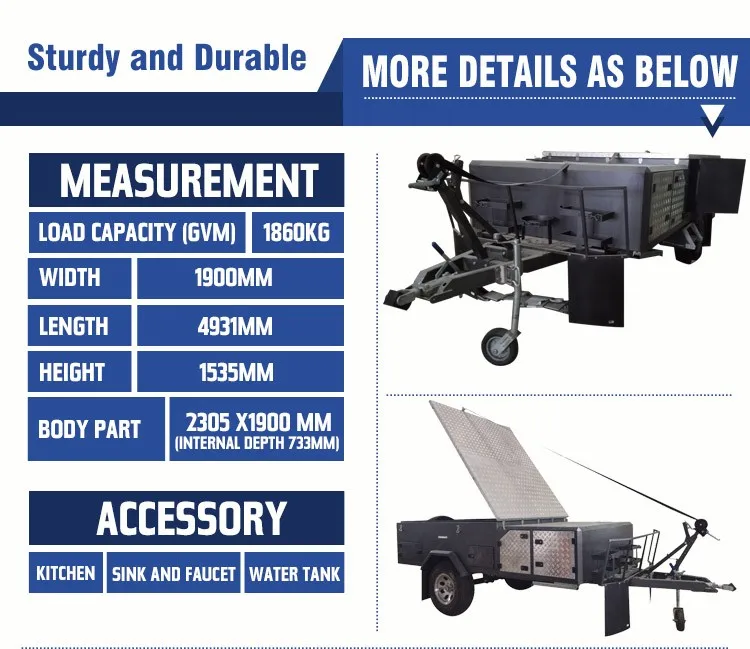

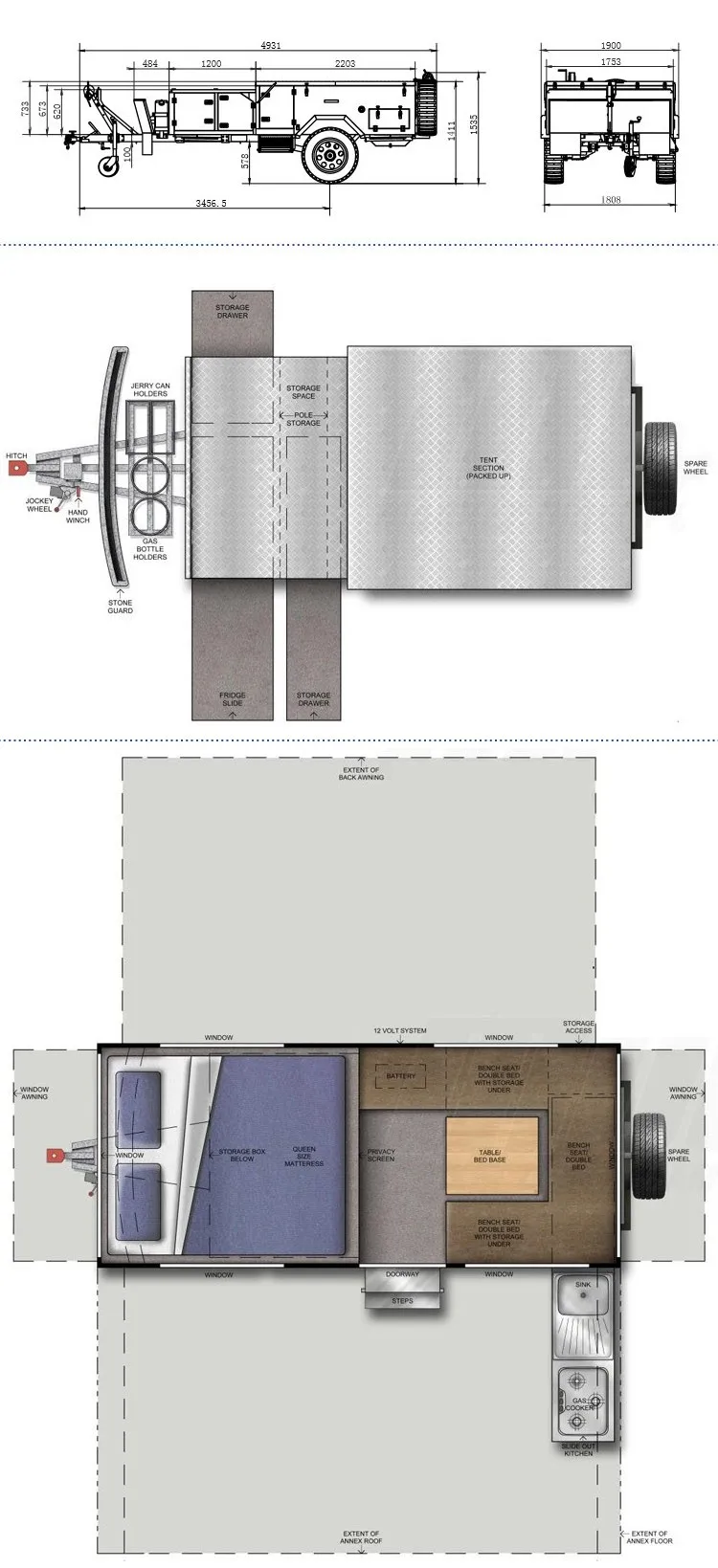

Dimensions | 4931*1900*1535mm |
Size of main trailer body | 2305*1900*733mm |
Net Weight | 1380KG |
ATM | 2000KG |
GTW | 1860KG |
Surface | powder coating as custom colors |
Storgae space | large storage space of 980L |
CHASSIS PART | |
Chassis | square tube of 75*50*3.0, 175*50*3.0 |
Suspension | off road independent suspension with four shock absorbers |
Draw bar | square tube of 100*50*3.0 |
Coupling | load bearing 2000KG, 360 degree off road coupling,galvanized surface |
Winch | load bearing of 1200BL, self-lock model, galvanized |
Safety chain | 304 stainless steel |
Axels | 45mm solid square |
Jockey Wheel | 10" swing-up, heavy duty solid jockey wheel |
Brake | Australian standard electric brake with hand brake (Available to modify to other standards) |
TRAILER BODY | |
Storage box | front storage box for gas bottles, large middle storage box |
Flap | SS304 & Aluminum |
Kitchen | slide out kitchen full stainless steel 304 |
Wheels | off-road tires *3, Mag-wheels*3, Fender*2 |
Stabilizer leg | 4 legs with adjustable height |
Jockey wheel | load bearing 2000KG, swing up and foldable model,height can be adjusted from 580 to 830mm, galvanized surface |
Step/stair | aluminum checker plate |
Water tank | 100L, can upgrade to 120L or 150L |
Cover tyre | 16 inch |
Tent | including main tent, annex and galvanized steel poles, shower room is available, can update to stainless steel poles |
Jerry Can | 304 stainless steel |
Signal connectors | 13 holes or 7 holes |
Consign frame | for disassembled trailer delivery |
Tail light | LED,Turning light, brake light and reversing light |
Brackets and Holders | Brackets for gas bottle, Jerry Can, holder for spare tyre |
OTHER DETAILS | |
MOQ | 10sets |
Packaging: | 1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; |
Delivery time: | 25-30 days after received the deposit |
Payment terms: | LC, T/T, Paypal, Western Union, Cash, etc |

We have specialized in sheet metal processing with 33 years experience since 1983, and we made many kinds of products for our customers from America,Europe,and Australia.
80% our products are exported to different countries, such as USA, Australia, Britain, France, Germany, Italy, Swiss, Switzerland, Poland, Spain, Belgium, etc.
