Low price steel shot and grits metal abrasive

  • Factory price： There is no set price, you can ask the supplier to get a product quote
    Initial batch size：
     123412 ¥310
  • Delivery merchant：Jinan Prime Metal Products Co., Ltd.
    • Place of Origin： Shandong, China (Mainland) Brand Name： PRM
    Model Number： steel shot s230 Material： steel
    Usage： shot blasting Abrasive Grain Sizes： s230
    Product name： Low price steel shot and grits metal Color： Black
    Shape： Round Application： shot blasting
    Hardness： 40-50HRC Size： S70-S930
    Sample： 200g for free MOQ： 1 ton
    Density： 7.2g/cm3 Feature： Long Life
  • Purchase type：
  • Offers：

    This product is free of shipping

    Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

    Full999 yuanGet beautiful for freeFreebies，While supplies last。

  • Net content：5000g
  • Specifications：
  • Delivery to：

    Please select the receiving city

    Please select
    Please select
    Please select
  • Purchase quantity：
    Inventory0pieces
Product Description

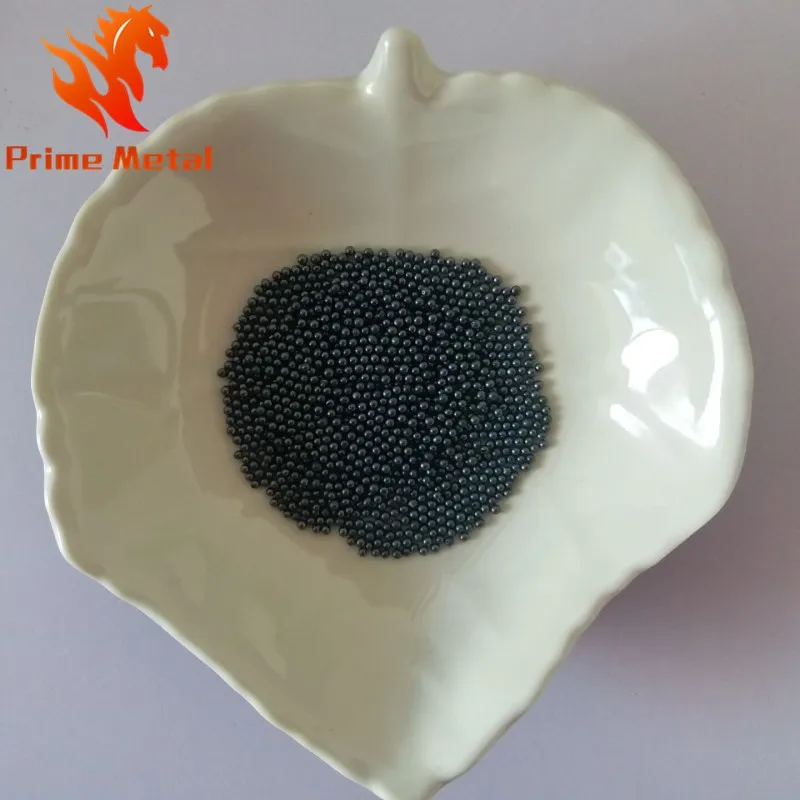

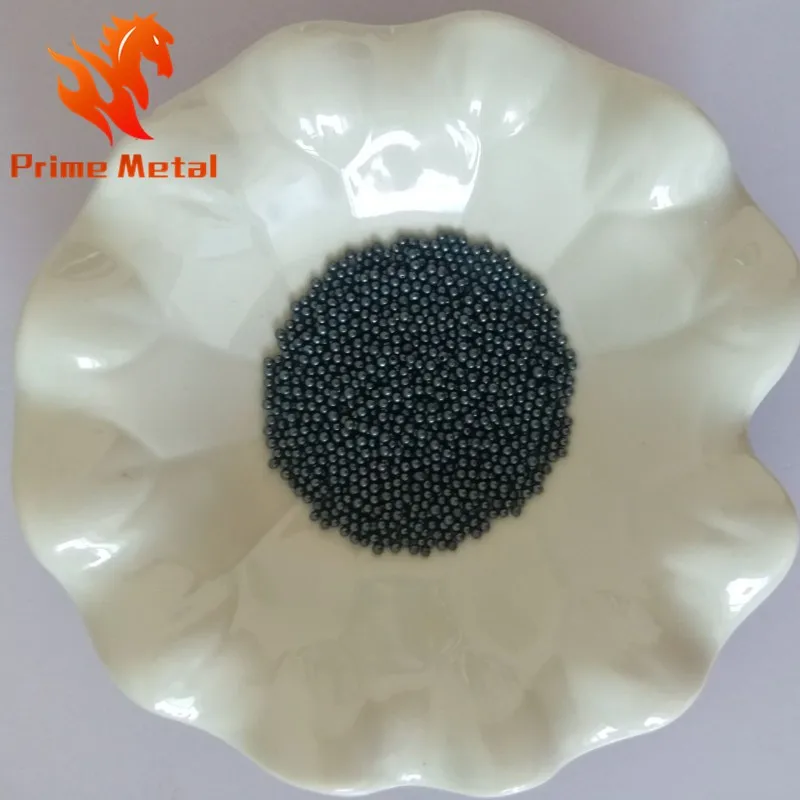

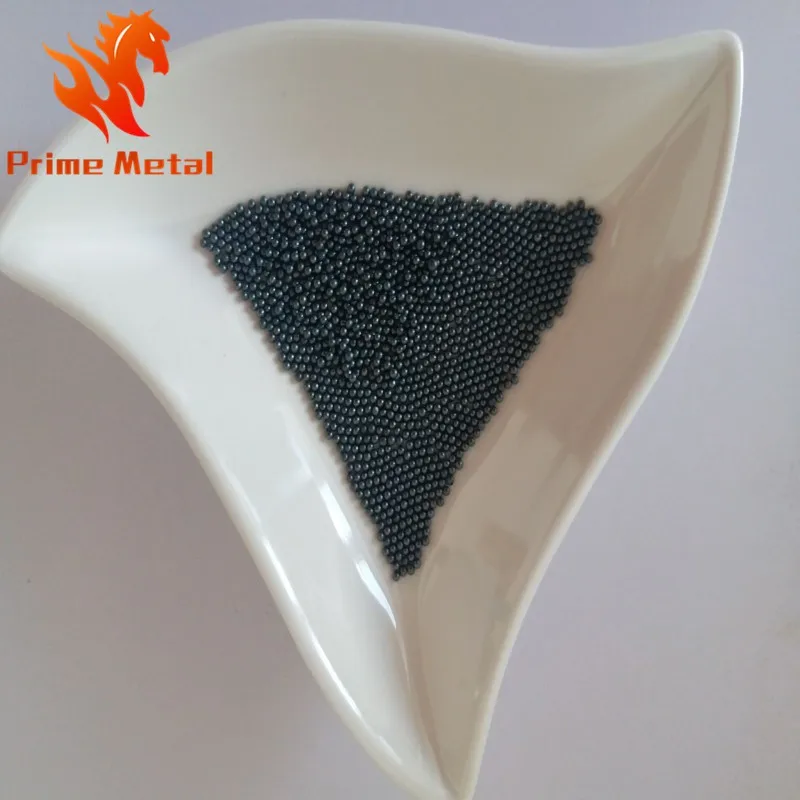

Low price steel shot and grits metal abrasive

Steel Shot Abrasive also known as Ball Shot is a high performance is a spherical product of hypereutectoid steel in a heat treated tempered condition.
It has a uniform structure which provides optimum resilience and resistance to fatigue, and remains Round throughout its working life.
It used Impact rather than a cutting process, leaving minimal dust.
Detailed Specification

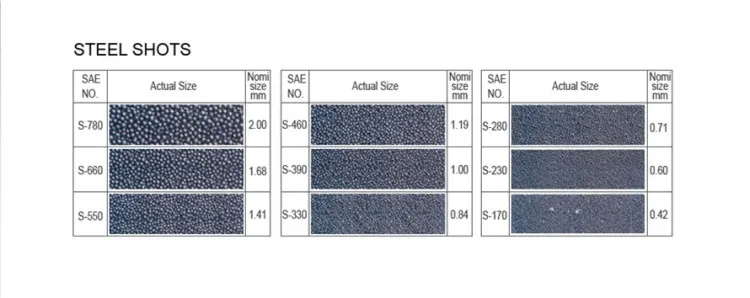

1. Steel shot size: S780, S660, S550, S460, S390, S330, S280, S230, S170, S110,S70
2. Chemical Composition of steel shot : C 0.70-1.20% Mn 0.60-1.20%, Si 0.40-1.20%, S≤0.05%, P ≤0.05%
3. Hardness: Normal: 40-50HRC Special: 52-56HRC, 56-60HRC Density: 7.4g/cucm
4. Steel shot is used for industrial foundry, forging plant, heat treatment shop, steel construction plant, container manufacturer, ship builder, auto and locomotive manufacturer .
5. Microstructure: Tempered Marten site High strength, durable Ervin life: Cast steel shot: 2000 cycles.


Detailed Images
Application
SAE
                             Steel shot Application
S-780    S-660
Knock-out or descaling large cast iron, cast steel, iron pipe, forged piece and heat treatment piece.

S-550    S-460
Knock-out, descaling, peening and shaping of medium-to large cast iron, cast steel, forged piece, heat treatment piece, steel plate and pipe.

S-390     S-330
Knock-out, descaling, peening and shaping of small-to-medium cast iron, ductile iron, cast parts, heat treatment piece, steel plate, sections, steel pipe, structural parts, chain and non-ferrous metals.

S-280
Blasting small cast iron, cast part, heat treatment piece, cast aluminum,cast steel plate and cast copper alloy before gold-plating process to increase elasticity and toughness.

S-230  S-170    S-110
Shot peening stainless steel plate, thin steel plate and non ferrous metals before painting process to increase elasticity and toughness.

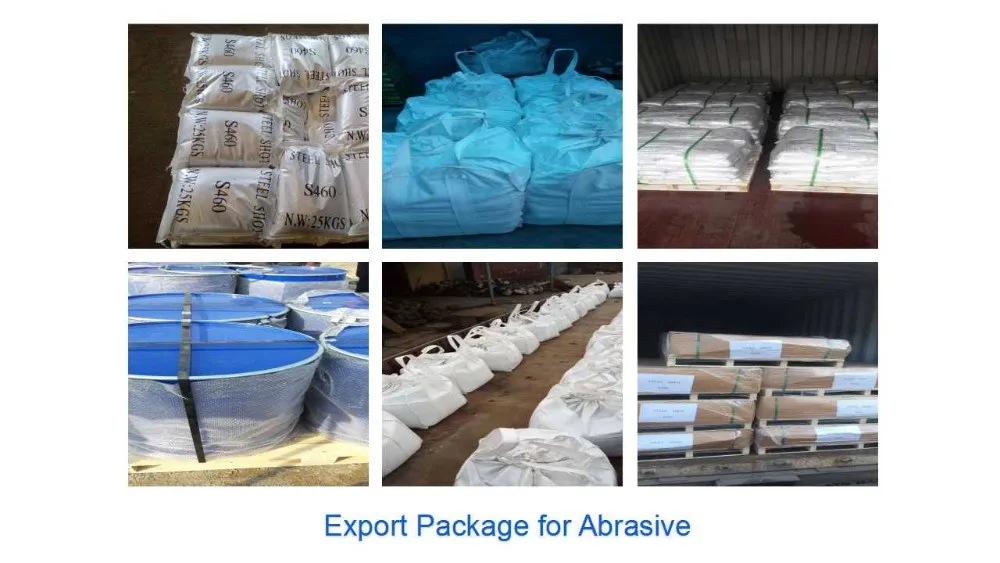

Packing &Delivery

Popular export package for steel shot is

1. 1000kgs/MT bag

2. 25kg/bag, 40 bags/MT bag

3.25kg/bag, 40 bags/pallet

4. 25kg/bag, 40 bags/carton box  packed on pallet

5. 900kgs/iron drum

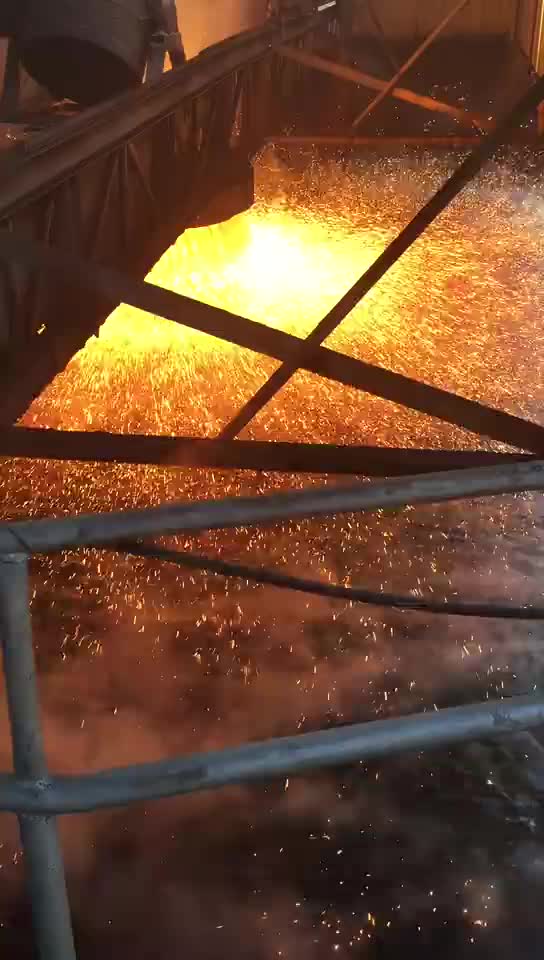

Production Process

Steel shot is manufactured from automatic production line , process is as follows

1. Melting (steel scrap + alloy)

2. Atomizing (by high pressure water jet)

3. Drying

4. Screening (separate the SAE shot sizes from the oversized shot particles used for grit production)

5. Spiraling (remove irregular shaped shot)

6. Quenching (produces superior particle integrity with minimal stress cracks)

7. Tempering

8. Screening

9. Packaging (25 KGS per one small pp bag, 40 small bag per one big PP bag)

Our Company

Jinan Prime Metal Products Co.,Ltd is a professional supplier for metal products .Our main business is including two parts , one is metal abrasive , the other one is tank head and related products .Our products have been exported to more than 20 countries and areas , and won a good praise with good quality and excellent service.

For abrasive , we take prime quality raw material , and manufacture with advanced full automatic equipment, and we also have strict quality control system . Before delivery , we will test the sample at random , once the result is qualified , cargo will be delivered , all the test result will be sent to customer along with documents .Our abrasive can promise to achieve a long work life and make a best surface treatment


Our Advantage

•Does not break down so produces little dust

• Causes minimal wear and damage to machines

• Hard - Average Hardness greater or equal to 46-51 HRC

• Low Dust Levels are advantageous for the Operator and minimise Dust Contamination

• Low overall lifetime cost as breaks down slowly and can be used many times

FAQ

1. Q : May i get a sample before placing an order ?
    A:Of course you can , 200g free sample will be provided for test .

2 Q:. How about your MOQ?
    A:If we have stock, MOQ is 1 kg, if there is no stock, MOQ is 1000kgs.

3.Q: How about your quality ?
   A:We have strict quality control from raw material to delivery , and will provide formal test report
       together with cargo .

4. Q: Where is your nearest station or air port ?
    A:Nearest station is Jinan Western Station ,2 hours to our factory ,
       Nearest airport is Jinan Internation Airport .,40 minutes to our factory
