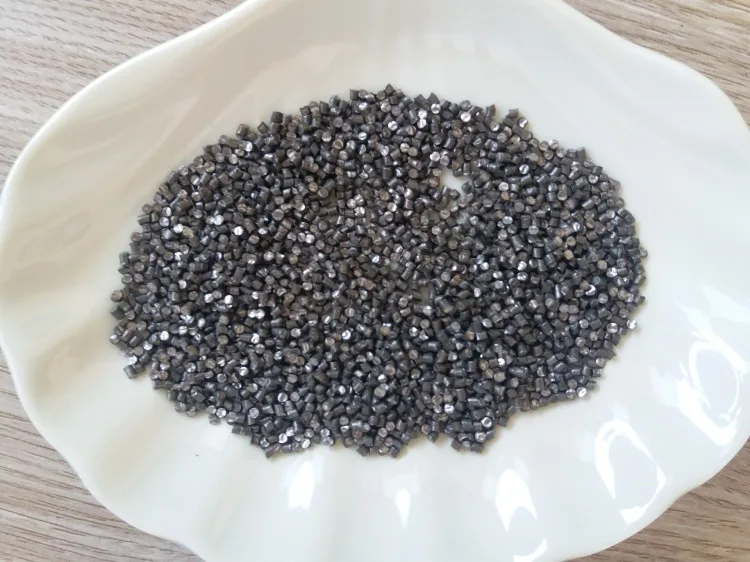

Carbon Steel Cut Wire Shot/Cut Wire Shot 1.0mm for polishing
A Steel Cut Wire Shot is developed by cutting wire into length equal to the wire's diameter. Product quality is assured by controlling chemical & physical properties inherent in the wire and by accurate sizing. All the pieces are 100% solid. The cut wire is made available in an "As-Cut" i.e. cylindrical form and in conditioned/ spherical shape.
Steel cut wire shot size:
New wire/bright wire:45# 60# 80#
0.4mm,0.6mm,0.8mm,1.0mm,1.2mm,1.4mm,1.5mm,1.6mm,2.0mm
Steel cut wire shot hardness:
45# 45-50 HRC
60# 48-53 HRC
80# 52-57 HRC
Old wire/black wire (tyre wire /steel strand)
1.0mm, 1.2mm,1.5mm,2.0mm,2.5mm
Main technical indicators of steel cut wire shot:
Products | Conditioned Carbon Steel Shot | Carbon Steel Cut Wire Shot |
Shape | Conditioned (Spherical) | As cut (Cylindrical) |
Sizes specifications | From 0.2mm to 2.5mm | |
Standards | AMS 2431, MIL-S-13165C, DIN8201, VDF 8001, SAEJ827, SAEJ441, JB/T8354 | |
Chemical composition | Carbon (C) | 0.45-0.75% |
Manganese (Mn) | 0.40-1.2% | |
Silicon (Si) | 0.1-0.3% | |
Sulfur (S) | ≤0.04% | |
Phosphorus (P) | ≤0.04% | |
Microhardness | 525~940 HV Vickers 51~68 HRC Rockwell | |
Tensile intension | 1350~2850 Mpa | |
Durability | 3900 Times (0.6mm, VDFI8001) | 4000 Times (0.6mm, VDFI8001) |
Microstructure | Deformed Sorbite | |
Density | 7.8 g/cm3 | |
Bulk density | 4.5 g/cm3 | |
Cut Wire Shot is the media of choice for peening, cleaning, tumbling, and vibratory finishing. It is widely used in wheel blast equipment. Available in the alloys shown above (and in others – note that if a metal can be drawn into wire, Pellets can cut it into shot or pins), our product can be purchased as-cut (cylindrical with sharp edges) or conditioned (rounded to a sphere)
Applications: Surface improvement, deburring, descaling, shot blasting, and peening of metal parts.
Specs: Available in regular spring-wire grades yielding a hardness of 45 to 52 HRC and in special high-carbon grades of 55 to 62 HRC. We can supply Carbon Steel Cut Wire Shot to meet AMS 2431/3 and 2431/8 aerospace specifications.
Steel cut wire shot compared with steel grit, you can get 30% reduction on cost,it cuts from steel wire , the length and diameter is nearly the same ,new steel cut wire shot will turn into round shot after long-time use in shot blasting machine .
Popular Export Package for Steel Cut Wire Shot
1.1000kgs/MT bag
2.25kg/bag, 40bags/MT bag /pallet /carton box
3.900kgs/iron drum
Our Factory
Our workshop
1. May i get a sample before placing an order ?
Of course you can , 200g free sample will be provided for test .
2.How about your MOQ?
If we have stock, MOQ is 1 kg, if there is no stock, MOQ is 1000kgs.
3.How about your quality ?
We have strict quality control from raw material to delivery , and will provide formal test report
together with cargo .
4. Where is your nearest station or air port ?
Nearest station is Jinan Western Station ,2 hours to our factory ,
Nearest airport is Jinan Internation Airport .,40 minutes to our factory
Interested ? Feel free to send me an inquiry
