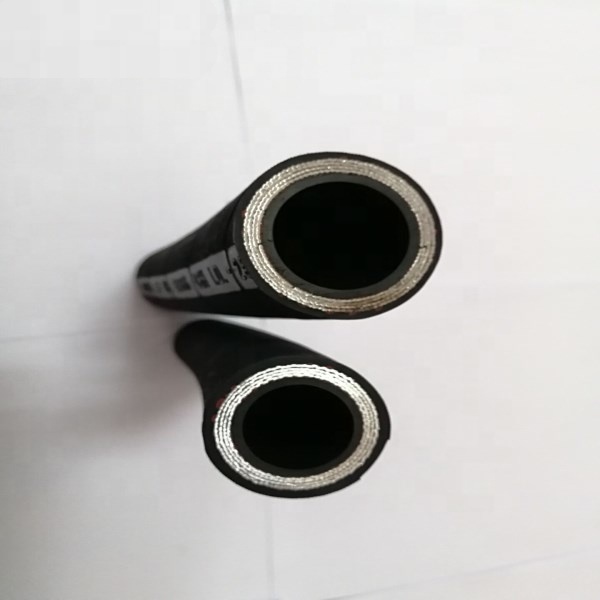

1. Tube : Oil resistant synthetic rubber
2. Reinforcement : four high tensile steel wire spiral layers ( 4 W/S )
3.Cover : abrasion and weather resistant synthetic rubber
4.Temperature range : -40 oCto +121oC
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 10 | 3/8 | 9.5 | 17.2 | 20.3 | 27.5 | 4000 | 110.3 | 16000 | 125 | 0.62 | 20 to 40 |
| 13 | 1/2 | 12.7 | 20.7 | 23.8 | 27.5 | 4000 | 110.3 | 16000 | 180 | 0.85 | 20 to 40 |
| 16 | 5/8 | 15.9 | 24.6 | 27.4 | 27.5 | 4000 | 110.3 | 16000 | 200 | 1.29 | 20 to 40 |
| 19 | 3/4 | 19.0 | 27.7 | 30.7 | 27.5 | 4000 | 110.3 | 16000 | 240 | 1.47 | 20 to 40 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 27.5 | 4000 | 110.3 | 16000 | 300 | 2.0 | 20 to 40 |
| 32 | 1 1/4 | 31.8 | 43.9 | 47.0 | 20.7 | 3000 | 82.7 | 12000 | 420 | 2.86 | 20 to 40 |
| 38 | 1 1/2 | 38.1 | 50.4 | 53.5 | 17.2 | 2500 | 68.9 | 10000 | 500 | 3.24 | 20 to 40 |
| 51 | 2 | 50.8 | 63.7 | 66.7 | 17.2 | 2500 | 68.9 | 10000 | 630 | 4.8 | 20 to 40 |
HEBEI DAYI RUBBER HOSE CO.,LTD.is specialized in manufacturing steel wire braided hydraulic hose, steel wire spiral hydraulic hose,metal hose, Teflon hose, steam hose and relevant machines and equipment. At present,our company have more than 300 employees and about 20 technicians.
Multispiral Hydraulic Hose EN856 4SH 4SP
manguera hidráulica-hydraulic rubber hose
1)Our company have advanced equipment of production, test and inspection. Advanced technology, well-built system of management and quality assurance
2)We can produce 500,000meters per month.
3)Our products have passed ISO9001:2008, safety certificate of approval for mining products and etc
4)we can send the hose sample for free
A. We can design and use customer company brand.
B. we can produce hose with large size from 3/16 to 4 inch.
You could contact us in anytime if there is any question and we promise to reply you within 24 hours. We will do better than you think!
