Chine lowest price factory Hydraulic hose

Factory price： There is no set price, you can ask the supplier to get a product quote

Initial batch size：
123412 ¥310 ~~¥Unset Price~~
Delivery merchant：Hebei Dayi Rubber Products Co., Ltd.

Place of Origin：	Hebei, China (Mainland)	Brand Name：	DAYI
Model Number：	SAE 100 R1 R2	hydraulic hose length：	100m/50m
hydraulic hose color：	black,blue

Purchase type： Foundry production Manufacturer's own brand
Promotional price：Promotion¥0.0
Offers：

This product is free of shipping

Full(999$L元)$can be reduced15 yuanShipping costs, while you run out.

Full999 yuanGet beautiful for freeFreebies，While supplies last。
Net content：5000g
Specifications：

Delivery to：
Please select the receiving city
Please select

Please select

Please select
Purchase quantity：

Inventory0pieces 【Complimentary】

Company Information

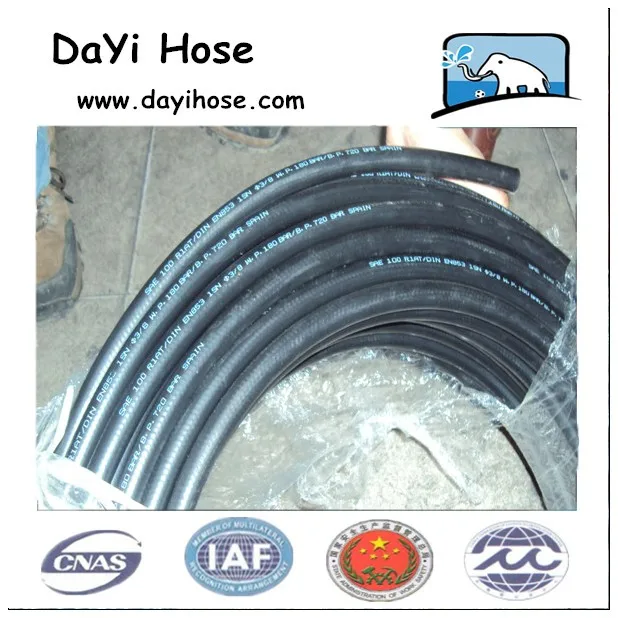

SAE/DIN hydraulic hose R1 R2

We are the leading manufacturer specialized in designing and manufacturing different kinds of hydraulic & high-pressure rubber hose in China, We help our customer develop special and quality hydraulic rubber hose for their needs.

Product Description

Structure

hydraulic hose Consists of inner tube, middle layer, two wire reinforcements and cover. Inner tube is to transmit liquid under pressure and protect wire against corrosion while cover is to protect wire against abrasion, wire layer is the structure materials that providing reinforcement.

Application

Mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery various machine tools.

Working Temperature

-40°C to +100°C

Features

It provides superior oil resistance, heat resistance and aging resistance by using special synthetic rubber.
It provides high pressure resistance and superior impulse resistance.
It provides superior bonding in hose internal, soft use and small deformation under pressure.
It provides superior kink resistance and fatigue resistance and longer services life.

General Technical Data for R1 hydraulic hose

Nominaldiameter		Inside Diameter		Reinforcement		Outside	Working Pressure		Proof Pressure	Burst Pressure	Bend	Weight
		Inside Diameter		Diameter		Diameter	Working Pressure		Proof Pressure	Burst Pressure	Radius	Weight
		mm		mm		mm	Mpa max	PSI	PSI	PSI	Min.mm	Kg/m
mm	inch	min	max	min	max	max	Mpa max	PSI	PSI
4.8	3/16"	4.6	5.4				20.7	3002	6003	12006	89	0.2
6.4	1/4"	6.2	7	10.8	11.4	13.5	19	2755	5496	10991	102	0.25
7.9	5/16"	7.7	8.5	12.5	13.1	15.4	17.2	2494	5003	9991	114	0.31
9.5	3/8"	9.3	10.1	14.5	15.1	17.5	15.5	2248	4495	8990	127	0.36
12.7	1/2"	12.3	13.5	17.7	18.3	20.6	13.8	2001	4002	8004	178	0.45
15.9	5/8"	15.5	16.7	21.1	21.7	24	10.3	1494	3002	6003	203	0.52
19	3/4"	18.6	19.8	24.6	25.4	27.7	8.6	1247	2494	5003	241	0.65
25.4	1"	25	26.4	32.1	32.9	35.4	6.9	1001	2001	4002	305	0.91
31.8	1-1/4"	31.4	33	40.8	41.6	44.1	4.3	624	1247	2494	419	1.3
38.1	1-1/2"	37.7	39.3	47.2	48	50.5	3.4	493	1001	2001	508	1.7
50.8	2"	50.4	52	59.9	60.7	63.2	2.6	377	754	1494	635	2

Packaging & Shipping

The general package of hydraulic hose is transparent PVC film packing, woven bag, pallet and reel packing, however, can also provide special package according to customer’s requests.

Our Services

We can offer OEM Services

We can provide FREE SAMPLE for our customers
We welcome clients to visit our factory leading to better understanding of our production.
