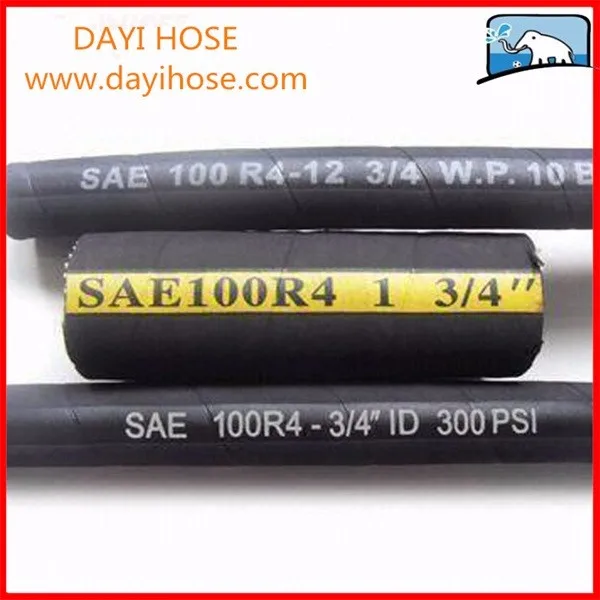

Oil suction hose SAE 100 R4
Construction: HYDRAULIC SUCTION HOSE/ SAE 100 R4 shall consist of an inner tube of oil resistant synthetic rubber, a renforcement consisting of a ply or plies of woven or braided textile fibers with a suitable spiral of body steel wire, and an oil and weather resistant synthetic rubber cover.
Temperature range : -40 °C to +100 °C
Inside Diametermm | Layer of the fabric layer | Diameter of the spire steel (mm) | Length of the hose joint (mm) | Length of the hose | ||||
Nominal size
| tolerance | Size | tolerance | size | Tolerance (mm) | |||
38 | 1.2 | 2 | 3 | 2.0 | 75 | 10 | 10 | 150 |
51 | 1.2 | 3 | 4 | 2.6 | 100 | 15 | 10 | 150 |
64 | 1.5 | 3 | 4 | 2.6 | 100 | 15 | 10 | 150 |
76 | 1.5 | 4 | 5 | 2.6 | 100 | 15 | 10 | 150 |
89 | 1.5 | 4 | 5 | 3.2 | 100 | 15 | 10 | 150 |
102 | 2.0 | 4 | 5 | 3.2 | 125 | 20 | 10 | 150 |
127 | 2.0 | 5 | 6 | 3.2 | 125 | 20 | 10 | 150 |
152 | 2.0 | 5 | 6 | 4.0 | 150 | 20 | 10 | 150 |
203 | 2.5 | 6 | 7 | 5.0 | 200 | 25 | 10 | 150 |
254 | 2.5 | 7 | 8 | 5.0 | 200 | 25 | 10 | 150 |
305 | 2.5 | 7 | 8 | 5.0 | 250 | 25 | 10 | 150 |

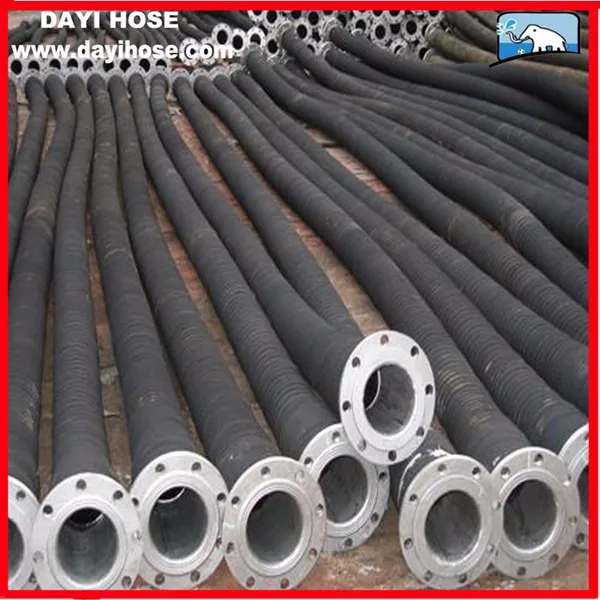

Oil suction hose SAE 100 R4
HEBEI DAYI RUBBER HOSE CO.,LTD.is specialized in manufacturing steel wire braided hydraulic hose, steel wire spiral hydraulic hose,metal hose, Teflon hose, steam hose and relevant machines and equipment.
Oil suction hose SAE 100 R4

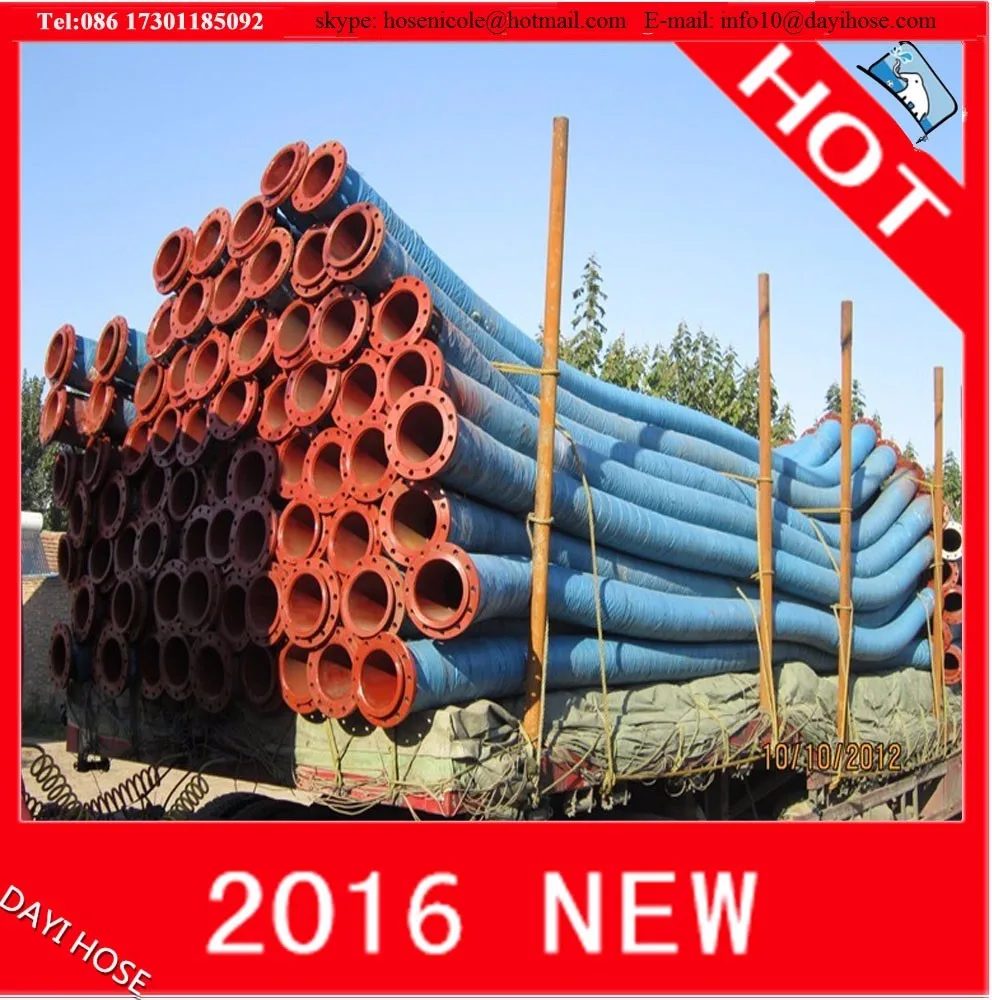

Our factory always use transparent PVC film packing, woven bag, pallet and reel packing or as you require.
We will offer the high quality service and know the order goods production process. Quality first, the supremacy services is our concept.
OEM service
24 hours 7 weeks service
One day can supply 30 000meters hose
A. We can design and use customer company brand.
B. we can produce hose with large size from 3/16 to 4 inch.
You could contact us in anytime if there is any question and we promise to reply you within 24 hours. We will do better than you think!
