SAE/DIN hydraulic hose R1 R2
HEBEI DAYI RUBBER HOSE CO.,LTD.is specialized in manufacturing steel wire braided hydraulic hose, steel wire spiral hydraulic hose,metal hose, Teflon hose, steam hose and relevant machines and equipment. At present,our company have more than 300 employees and about 20 technicians.
a) Reliable and professional manufacturer
b) Ten years manufacturing experience in the market
c) ISO certificate/Quality certificate
d) Output 500,000 meters each month - fast delivery time
e) Fast delivery and best prices
SAE/DIN hydraulic hose R1 R2

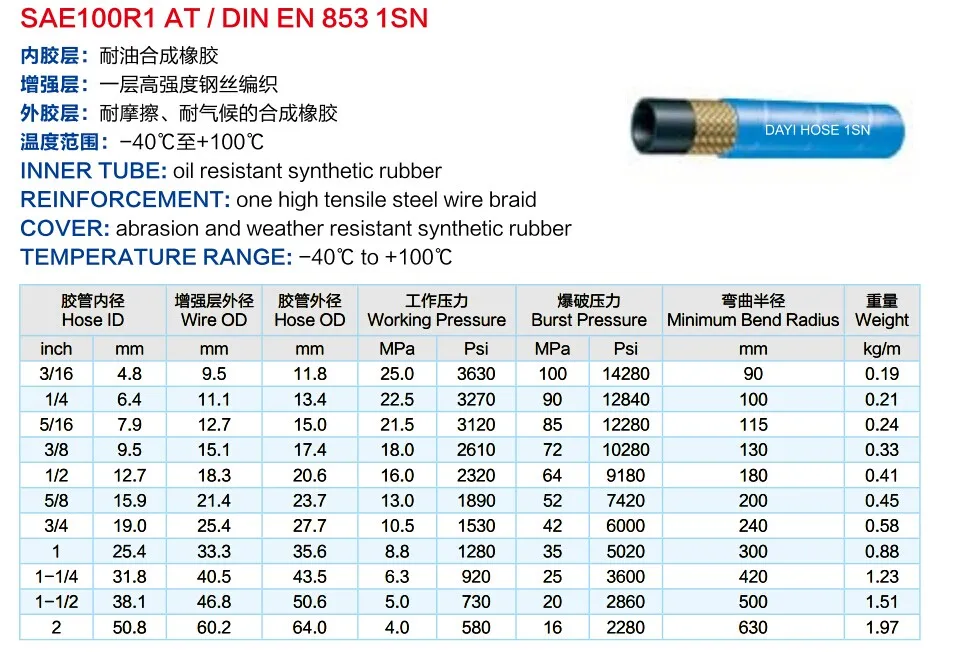

The Best Quality SAE100R1 Industrial Hydraulic Hose
CONSTRUCTION:
This hose shall consist of an inner tube of oil resistant synthetic rubber, a single steel wire braided reinforcement,
and an oil and weather resistant synthetic rubber cover.
APPLICATION:
Hose range suitable this section covers hose to use with petroleum base hydraulic fluids within a temperature range of -40°C~ +100°C.
Reference standard:SAE100R1
Metric size | British size | I.D.(mm)
| W.D.(mm)
| O.D.(mm) | Working pressure
| Proof pressure
| Bursting pressure
| Bend radius
| Weight approx | ||||||||
Type A | Type AT | ||||||||||||||||
mm | inch | min | max | min | max | min | max | max | Mpa | Psi | Mpa | Psi | Mpa | Psi | inch | mm | KG/m |
5 | 3/16 | 4.6 | 5.4 | 8.9 | 10.1 | 11.9 | 13.5 | 12.5 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 3.54 | 90 | 0.2 |
6.3 | 1/4 | 6.2 | 7 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 3.94 | 100 | 0.25 |
8 | 5/16 | 7.7 | 8.5 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 17.5 | 2540 | 35 | 5075 | 70 | 10150 | 4.53 | 115 | 0.31 |
10 | 3/8 | 9.3 | 10.1 | 14.5 | 15.7 | 19 | 20.6 | 18.1 | 15.7 | 2280 | 31.5 | 4570 | 63 | 9135 | 4.92 | 125 | 0.36 |
12.5 | 1/2 | 12.3 | 13.5 | 17.5 | 19 | 22.2 | 23.8 | 21.5 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 7.09 | 180 | 0.45 |
16 | 5/8 | 15.5 | 16.7 | 20.6 | 22.2 | 25.4 | 27 | 24.7 | 10.5 | 1520 | 21 | 3045 | 42 | 6090 | 8.07 | 205 | 0.52 |
19 | 3/4 | 18.6 | 19.8 | 24.6 | 26.2 | 29.4 | 31 | 28.6 | 8.7 | 1260 | 17.5 | 2540 | 35 | 5075 | 9.45 | 240 | 0.65 |
25 | 1 | 25 | 26.4 | 32.5 | 34.1 | 36.9 | 39.3 | 36.6 | 7 | 1015 | 14 | 2030 | 28 | 4060 | 11.81 | 300 | 0.91 |
31.5 | 1-1/4 | 31.4 | 33 | 39.3 | 41.7 | 44.4 | 47.6 | 44.8 | 4.3 | 620 | 8.7 | 1260 | 17.5 | 2540 | 16.54 | 420 | 1.3 |
38 | 1-1/2 | 37.7 | 39.3 | 45.6 | 48 | 50.8 | 54 | 52 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 19.69 | 500 | 1.7 |
51 | 2 | 50.4 | 52 | 58.7 | 61.9 | 65.1 | 68.3 | 65.9 | 2.6 | 380 | 5.2 | 750 | 10.5 | 1520 | 24.8 | 630 | 2 |
SAE/DIN hydraulic hose R1 R2
1)Our company have advanced equipment of production, test and inspection. Advanced technology, well-built system of management and quality assurance
2)We can produce 500,000meters per month.
3)Our products have passed ISO9001:2008, safety certificate of approval for mining products and etc
4)we can send the hose sample for free
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer’s request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we have been offering OEM services for 10 years.
Q4. Does your product have different color hose?
A. Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
A. It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
You could contact us in anytime if there is any question and we promise to reply you within 24 hours. We will do better than you think!
