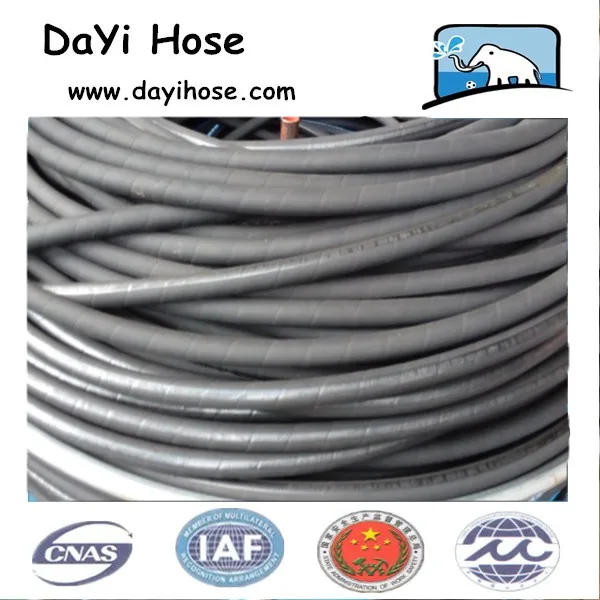

wire braid hydraulic hose
We are the leading manufacturer specialized in designing and manufacturing different kinds of hydraulic & high-pressure rubber hose in China, We help our customer develop special and quality hydraulic rubber hose for their needs.
Our product list as below :
1) Steel wire braided hydraulic hose
SAE 100 R1AT/DIN EN 853 1SN
SAE 100 R2AT/DIN EN 853 2SN
DIN EN 857 1SC / 2SC
SAE 100 R1A/R2A SAE 100 R16/R17
Steam hose((1W,2W)
SAE 100 R5
2) Multi steel wire Spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
3) Other hydraulic hose
SAE 100 R3/R6
SAE 100 R7/R8
SAE 100 R14(Teflon hose)
4) Industrial hose
air/water/oil hose
sand blast hose
suction and discharge hoses
General Technical Data for R2 wire braid hydraulic hose
| Nominal | Inside | Reinforcement | Outside | Working | Proof | Burst | Min.Bend | Weight | ||||
| diameter | Diameter | Diameter | Diameter | Pressure | Pressure | Pressure | Radius | Kg/m | ||||
| mm | mm | mm | MPa | MPa | MPa | mm | ||||||
| mm | inch | min | max | min | max | max | max | PSI | min | |||
| 4.8 | 3/16" | 4.6 | 5.4 | 10.6 | 11.7 | 14.1 | 34.5 | 5003 | 68.9 | 138 | 100 | 0.3 |
| 6.4 | 1/4" | 6.2 | 7 | 12.5 | 13.1 | 15.2 | 34.5 | 5003 | 69 | 138 | 100 | 0.3 |
| 7.9 | 5/16" | 7.7 | 8.5 | 14.2 | 14.8 | 17.1 | 29.3 | 4249 | 58.6 | 117 | 115 | 0.36 |
| 9.5 | 3/8" | 9.3 | 10.1 | 16.2 | 16.8 | 19.1 | 27.6 | 4002 | 55.2 | 110 | 130 | 0.49 |
| 12.7 | 1/2" | 12.3 | 13.5 | 19.4 | 20 | 22.3 | 24.1 | 3495 | 48.3 | 96.5 | 180 | 0.56 |
| 15.9 | 5/8" | 15.5 | 16.7 | 22.8 | 23.4 | 25.8 | 19 | 2755 | 38 | 76 | 200 | 0.6 |
| 19 | 3/4" | 18.6 | 19.8 | 26.4 | 27.2 | 29.4 | 15.5 | 2248 | 31 | 62 | 240 | 0.83 |
| 25.4 | 1" | 25 | 26.4 | 33.9 | 34.7 | 37.1 | 13.8 | 2001 | 27.6 | 55.2 | 300 | 1.22 |
| 31.8 | 1-1/4" | 31.4 | 33 | 42.8 | 43.6 | 46.1 | 11.2 | 1624 | 22.4 | 44.8 | 420 | 1.91 |
| 38.1 | 1-1/2" | 37.7 | 39.3 | 49.2 | 50 | 52.5 | 8.6 | 1247 | 17.2 | 34.5 | 500 | 2.17 |
| 50.8 | 2" | 50.4 | 52 | 61.9 | 62.7 | 65.2 | 7.8 | 1131 | 15.5 | 31 | 630 | 2.74 |

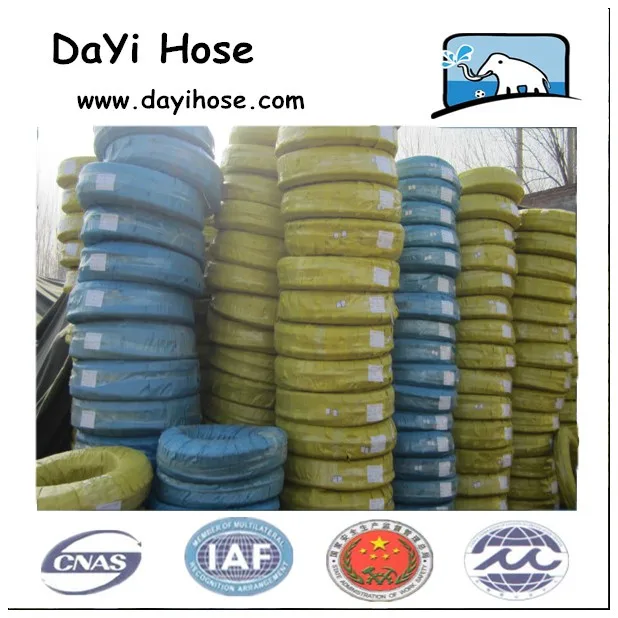

The general package of wire braid hydraulic hose is transparent PVC film packing, woven bag, pallet and reel packing, however, can also provide special package according to customer’s requests.
