Precast Concrete 52/34 Type T Bolt M20*85mm
T Bolt have black, HDG and EP surface treatment, and different grade 4.6/8.8.
T Bolt are widely used in the anchoring system and available in a choice of diameters and lengths for each cast-in channel size fixings to cast-in channels are by drop forged High quality T head bolt, face-entered into the channel after the concrete has set. The projecting bolt has a notch on the end of the shank so that the correct engagement of T head bolt in the channel lips can be clearly seen. The allowable load capacity of a fixing depends on the channel type and the anchor spacing and position
| Product name | Precast Concrete 52/34 Type T Bolt M20*85mm |
| Application | chemical industry,petroleum industry, construction industry,etc |
| Thread type | metric / type A / type B |
| Length | 5-160mm , 1/5" - 63/10" |
| Finish | plain, black, zinc plated, H.D.G, and so on |
| MOQ | 1000pcs |
| Payment terms | T/T, 30% in advance, and balanced before shipment or against the B/L copy |
Main parameter of High quality T head bolt
Precast Concrete 52/34 Type T Bolt M20*85mm | |
| Diameter | Max allowable load on bolt shank pull-out |
| M20 | 27.0 KN |
| M16 | 17.3 KN |
| M12 | 9.3 KN |
| M10 | 6 KN |
| M8 | 4 KN |
| M6 | 2.2 KN |
| Tightening torgue | T bolt made in China grade 4.6 | Precast Concrete 52/34 Type T Bolt M20*85mm grade 4.6 |
| Diameter | Stainless stainless steel(N/m) | N/m |
| M30 | 400 | - |
| M27 | 300 | 500 |
| M24 | 200 | 500 |
| M20 | 120 | 300 |
| M16 | 60 | 150 |
| M12 | 25 | 70 |
| M10 | 15 | 30 |
M8 | 8 | - |
| M16 toothed | 70 | 70 |
| M12 toothed | 25 | 70 |

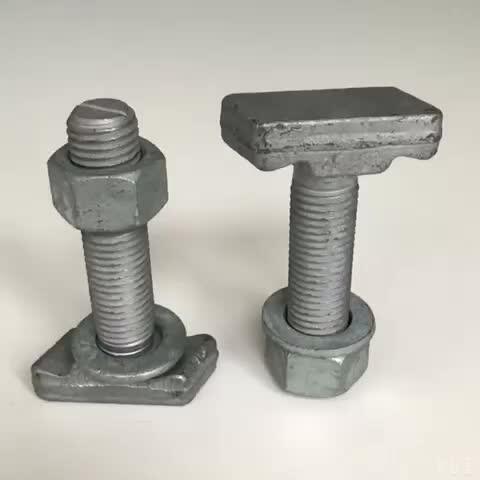

Precast Concrete 52/34 Type T Bolt M20*85mm images
Application Pictures
Using products to connect key part of steel struction The whole construction comtains lots of T head
Our company
Our company GRI was established in 2007, we have 6-year experience cooperated with foreign buyers on all kinds of construction materials, including aluminium composite panel, fittings, formwork, scaffolding, curtain wall, T head bolt, aluminium windows and doors, accessaries, Hardwares and chemical industry. Based on our working experience, we could make a professional evaluation&screening before we make you the offers, which could find you the best qualified suppliers with competitive price to meet your request.
Packing Process
Precast Concrete 52/34 Type T Bolt M20*85mm
The Services
1. OEM Manufacturing welcome: Product, Package for T head bolt.
2. T bolt sample is free.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about our high quality T head bot contact with us, we will offer the solve way for you.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons for high quality t head bot. we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test to ensure quality of T head bot before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
